GS160 LA QHAF (GCABA) - Honda Engine, Made in USA (SN: GCABA-1000001 - GCABA-9999999) CRANKCASE COVER Parts Diagram

Engine, Made in USA

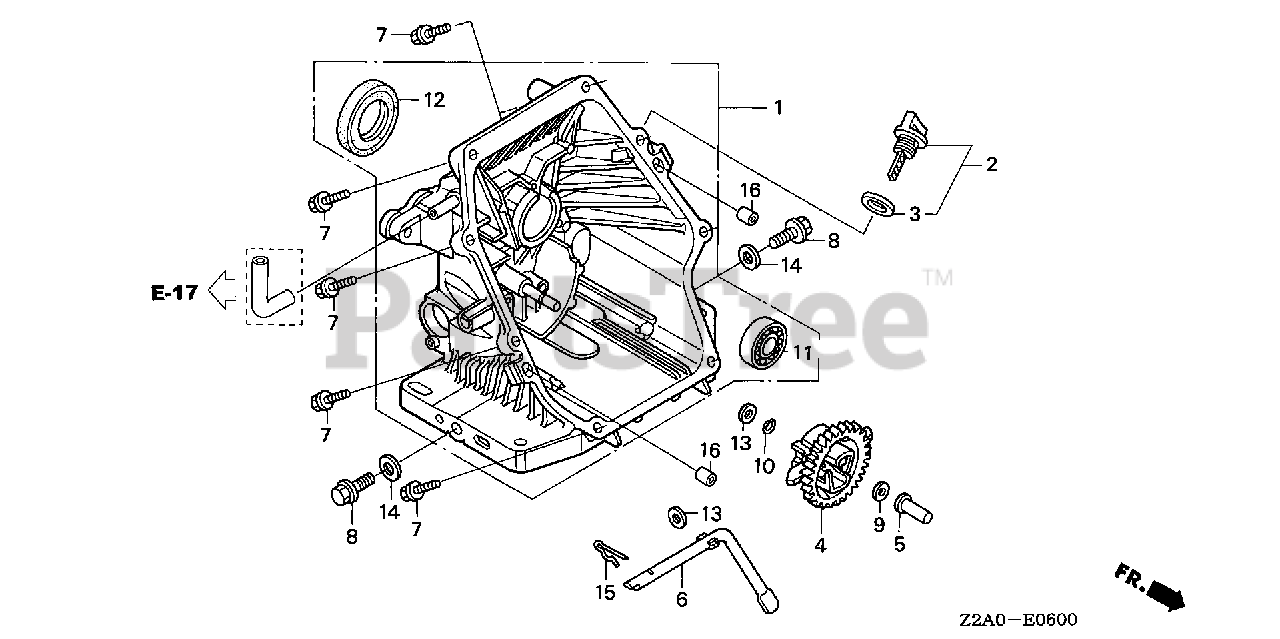

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-Z2A-660

COVER ASSY., CRANKCASE

$149.99

$

Usually ships in 3-6 days

0

2

Honda 15600-ZF0-003

CAP ASSY., OIL FILLER

$9.99

$

In Stock, Qty 5

0

3

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

$3.49

$

In Stock, only 3 left!

0

4

Honda 16510-ZL8-000

GOVERNOR ASSY.

$12.99

$

In Stock, only 1 left!

0

5

Honda 16531-ZE1-000

SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 8

0

6

Honda 16541-Z8A-000

SHAFT, GOVERNOR ARM

$0.99

$

In Stock, Qty 5

0

7

Honda 90121-952-000

BOLT, FLANGE (6X25) (CT200)

$2.99

$

In Stock, Qty 20+

0

8

Honda 90131-896-650

BOLT, DRAIN PLUG (12X15)

$5.49

$

In Stock, Qty 11

0

9

Honda 90451-ZE1-000

WASHER, THRUST (6MM)

$2.49

$

In Stock, only 2 left!

0

10

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

11

Honda 91001-ZL8-003

BEARING, RADIAL BALL (62/28)

$29.99

$

Usually ships in 3-6 days

0

12

Honda 91202-ZL8-003

OIL SEAL (28X41.25X6)

$7.49

$

In Stock, Qty 16

0

13

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

14

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 9

0

16

Honda 90701-Z8B-000

PIN, DOWEL (8X20)

$0.99

$

In Stock, Qty 8

0
