GS 21T (24AF510A022) - Cub Cadet Gold Series Log Splitter (2002) General Assembly Parts Diagram

Gold Series Log Splitter

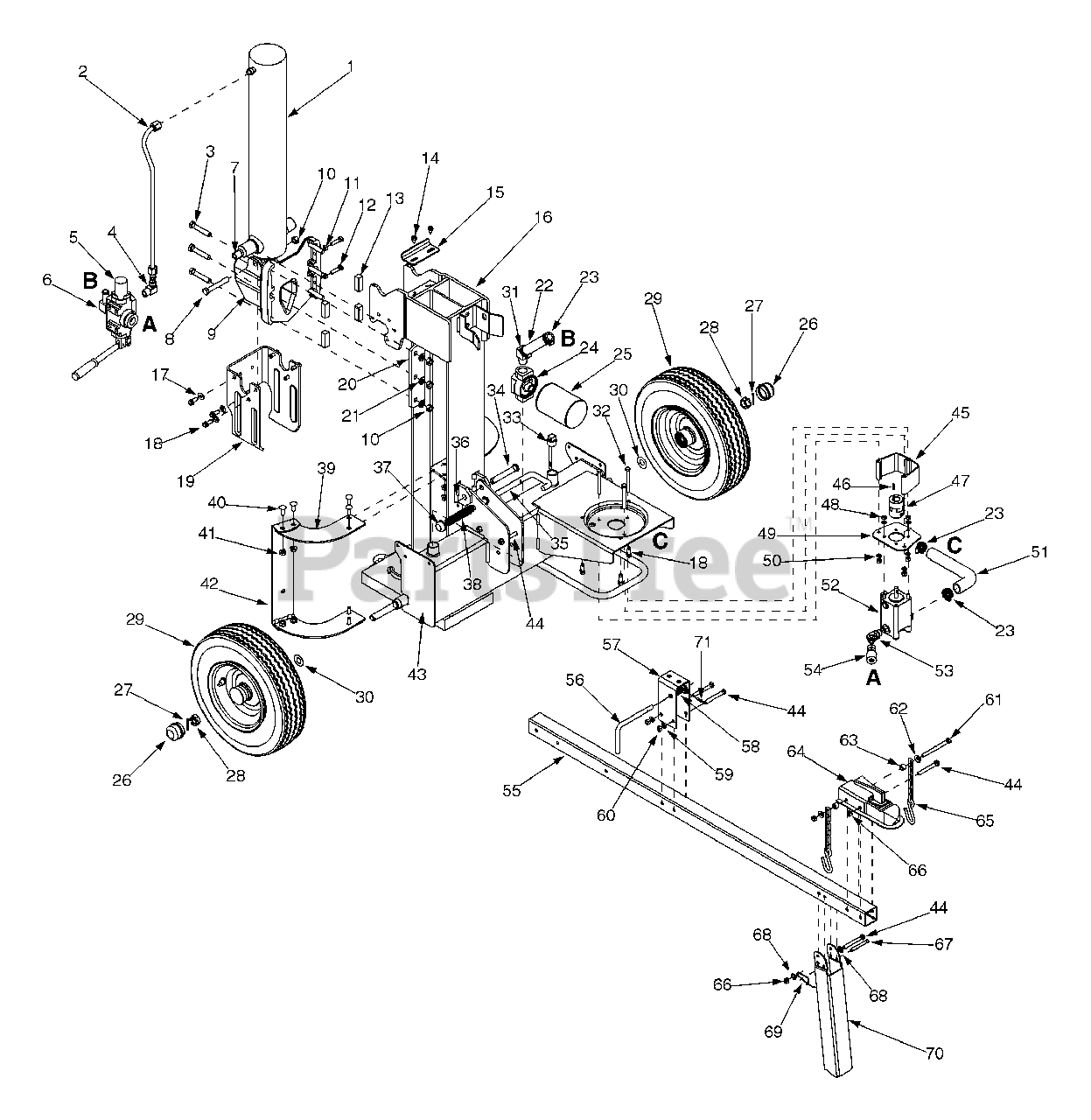

General Assembly Parts Diagram

  • Title

1

Cub Cadet 718-0773

Hydraulic Cylinder 4.00

$1210.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 753-0490

Seal Kit 4.00

Note: Not shown

$

$

Not available

2

Cub Cadet 727-0634

Hydraulic Tube

$

$

Not available

3

Cub Cadet 710-1018

Hex Cap Screw 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

4

Cub Cadet 737-0192

90 Degree Solid Adapter

$41.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 718-0481

Control Valve
(Superseded to 918-0481A)

Variations

Cub Cadet 718-0481-0498

Logsplitter Valve - OLD CUB YELLOW (0498)

$383.99

$

In Stock, only 2 left!

0

Cub Cadet 718-0481-0637

Logsplitter Valve - POWDER BLACK (0637)

$383.99

$

In Stock, only 2 left!

0

$383.99

$

In Stock, only 2 left!

0

5

Cub Cadet 718-0523

Lever bracket

Note: Not shown

$36.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 718-0522

Control lever cap (opposite end of handle)

Note: Not shown

$

$

Not available

6

Cub Cadet 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 737-0238

Nipple Pipe 1/2-14

$25.99

$

In Stock, Qty 6

0

8

Cub Cadet 710-0515

Hex Cap Screw 1/2-20 x 3.50

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 719-0550

Wedge Assembly
(Superseded to 719-0550A)

$245.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0239

Lock Nut 1/2-20

$5.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0711

Hex Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

13

Cub Cadet 781-0351

Adjustable Gib

$18.99

$

In Stock, Qty 18

0

14

Cub Cadet 710-0604A

Hex Washer Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 781-1054

Support Bracket
(Superseded to 781-1054-0637)

Variations

Cub Cadet 781-1054-0637

BRACKET-SUPT CYLIND - POWDER BLACK (0637)

$

$

Not available

$

$

16

Cub Cadet 681-0173

Beam Assembly

$

$

Not available

17

Cub Cadet 736-0300

Flat Washer .406 ID x .875 OD

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

19

Cub Cadet 781-0791

Dislodger
(Superseded to 781-0791-0637)

Variations

Cub Cadet 781-0791-0637

DISLODGER - POWDER BLACK (0637)

$175.99

$

Usually ships in 3-6 days

0

$175.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 781-0790

Back Plate
(Superseded to 781-0790A-0637)

Variations

Cub Cadet 781-0790-0637

Logsplitter Wedge Plate - POWDER BLACK (0637)

$40.99

$

In Stock, only 2 left!

0

$40.99

$

In Stock, only 2 left!

0

21

Cub Cadet 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 6

0

22

Cub Cadet 727-0443

Return Hose 3/4" ID x 44" Lg.

$118.99

$

In Stock, only 2 left!

0

23

Cub Cadet 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 737-0316

Filter Housing
(Superseded to 753-06643)

$97.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

26

Cub Cadet 734-0873

Hub Cap

$11.99

$

In Stock, only 3 left!

0

27

Cub Cadet 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0359

Slotted Nut 3/4-16

$11.99

$

In Stock, only 1 left!

0

29

Cub Cadet 634-0186

Wheel Assembly

$363.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 941-04089

Cone Bearing
(Superseded to 941-04298)

Note: Not shown

$16.99

$

In Stock, Qty 19

0

29

Cub Cadet 921-0168

Grease Retainer

Note: Not shown

$9.49

$

In Stock, Qty 18

0

30

Cub Cadet 736-0351

Flat Washer .760 ID x .500 OD

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 737-0312

Adapter 3/4-14

$51.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 710-1338

Hex Screw 5/16-24 x 3.25

$

$

Not available

33

Cub Cadet 737-0348

Vented Dipstick
(Superseded to 737-0348A)

$23.99

$

In Stock, only 1 left!

0

34

Cub Cadet 711-1587

Clevis Pin

$

$

Not available

35

Cub Cadet 781-0690

Lock Rod

$35.99

$

In Stock, only 1 left!

0

36

Cub Cadet 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 726-0214

Push Cap

$10.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 732-0583

Compression Spring

$12.99

$

In Stock, Qty 19

0

39

Cub Cadet 781-0686

Log Tray Bracket
(Superseded to 753-05423)

Variations

Cub Cadet 781-0686-0498

Log Splitter Tray Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0686-0637

Log Splitter Tray Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 710-3097

Carriage Bolt 3/8-16 x 1.0

$6.99

$

In Stock, Qty 5

0

41

Cub Cadet 712-0431

Flanged Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

42

Cub Cadet 781-0682

Log Tray
(Superseded to 753-05424)

Variations

Cub Cadet 781-0682-0637

Log Splitter Tray Kit - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0682-0665

Log Splitter Tray Kit - YARDMAN GREEN (0665)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 681-0161

Frame Assembly
(Superseded to 753-05565)

$

$

Not available

44

Cub Cadet 710-0521

Hex Bolt 3/8-16 x 3"

$5.49

$

In Stock, Qty 11

0

45

Cub Cadet 719-0353

Coupling Shield

$54.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 714-0122

Square Key 3/16" x .75

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 718-04145

Flexible Coupling (Stamped L075) .875 x .500 ID
(Superseded to 918-04145)

Note: use with 718-04127 pump

$90.99

$

In Stock, Qty 8

0

47

Cub Cadet 735-0652

Bushing, Spider Coupling

Note: not shown, use with 718-04145 or 718-0686 coupling

$46.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 718-04392

Coupling .500 ID Pump Side

Note: not shown, use with 718-04127 pump (Not compatible with coupling stamped L075)

$14.99

$

In Stock, Qty 20+

0

47

Cub Cadet 718-04395

Coupling .875 ID Engine Side

Note: not shown, use with 718-04127 pump (Not compatible with coupling stamped L075)

$18.99

$

In Stock, Qty 20+

0

47

Cub Cadet 735-04103

Bushing, Spider Coupling

Note: not shown, use with 718-04392 and 718-04395 coupling

$14.99

$

In Stock, Qty 8

0

47

Cub Cadet 710-1842

Set Screw 1/4-20 x .38
(Superseded to 710-1842A)

Note: not shown

$5.49

$

In Stock, only 1 left!

0

47

Cub Cadet 718-0686

Flexible Coupling (Stamped L075) .875 x .437 ID
(Superseded to 918-0686)

Note: use with 718-0683 pump

$104.99

$

In Stock, only 4 left!

0

48

Cub Cadet 712-0123

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

49

Cub Cadet 781-0097

Rear Coupling Support Bracket
(Superseded to 781-0097-0637)

Variations

Cub Cadet 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 3 left!

0

$69.99

$

In Stock, only 3 left!

0

50

Cub Cadet 736-0119

Lock Washer 5/16" ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 727-0633

Hose

$

$

Not available

52

Cub Cadet 718-0683

Gear Pump (11 gpm)
(Superseded to 753-05194)

Note: No longer available, furnish 753-05194 Kit

$1509.99

$

In Stock, only 1 left!

0

52

Cub Cadet 753-05194

Pump Kit

Note: includes 718-04127 pump & couplings, Not shown

$1509.99

$

In Stock, only 1 left!

0

52

Cub Cadet 718-04127

Gear Pump (9.5 gpm)
(Superseded to 918-04127)

$751.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 737-0329

45 Degree Elbow

$

$

Not available

54

Cub Cadet 727-0502

High Pressure Hydraulic Hose

$209.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 781-0788

Tube Assembly

Variations

Cub Cadet 781-0788-0637

TUBE-TONGUE LOGSP - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0788-0650

TUBE-TONGUE LOGSP - RED METALLIC (0650)

$

$

Not available

Cub Cadet 781-0788-0689

TUBE-TONGUE LOGSP - POLO GREEN (0689)

$

$

Not available

Cub Cadet 781-0788-0709

TUBE-TONGUE LOGSP - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 781-0788-0638

TUBE-TONGUE LOGSP - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0788-0662

TUBE-TONGUE LOGSP - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0788-0716

TUBE-TONGUE LOGSP - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 781-0788-0721

USE 781-0788-4044 TUBE-TONGUE - SEARS RED (0721)

$

$

Not available

Cub Cadet 781-0788-4021

TUBE-TONGUE LOGSP - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 781-0788-4044

TUBE-TONGUE LOGSP - CRAFTSMAN RED (4044)

$

$

Not available

$165.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 747-1261

Latch Rod

$39.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 781-1045

Latch

Variations

Cub Cadet 781-1045-0637

Latch - POWDER BLACK (0637)

$59.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-0638

LATCH - MTD/TROY-BILT RED (0638)

$59.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-0606

LATCH LOGSP - MAJESTIC ORANGE (0606)

$48.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-0650

LATCH LOGSP - RED METALLIC (0650)

$55.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-0662

LATCH - OYSTER GRAY (0662)

$55.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-0689

LATCH - POLO GREEN (0689)

$55.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-0716

LATCH LOGSP - CUB YELLOW-99 (0716)

$55.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-0721

USE 781-1045-4044 LATCH - SEARS RED (0721)

$55.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-4021

LATCH LOGSP - CUB YELLOW 2 (4021)

$55.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-4044

LATCH LOGSP - CRAFTSMAN RED (4044)

$55.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 732-3127

Spring Compression
(Superseded to 932-3127)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 736-0169

L-Washer 3/8"

$3.99

$

In Stock, Qty 20+

0

60

Cub Cadet 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 12

0

61

Cub Cadet 710-0944

Hex Cap Screw 3/8-16 x 4.25

$10.99

$

In Stock, Qty 12

0

62

Cub Cadet 736-0262

Flat Washer .385 ID x .870 OD

$3.99

$

In Stock, Qty 10

0

63

Cub Cadet 750-0497

Spacer .375 ID x .625 OD

$10.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 727-0311

Coupling Hitch

$

$

Not available

65

Cub Cadet 713-0433

Chain
(Superseded to 713-0433A)

$44.99

$

In Stock, only 1 left!

0

66

Cub Cadet 712-0375

Hex Lock Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

67

Cub Cadet 711-0813

Clevis Pin
(Superseded to 911-0813)

$6.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 736-0185

Flat Washer .375 ID x .738 OD

$3.99

$

In Stock, Qty 20+

0

69

Cub Cadet 732-0194

Spring Pin

$4.99

$

In Stock, Qty 12

0

70

Cub Cadet 781-0789

Jack Stand

Variations

Cub Cadet 781-0789-0637

Log Splitter Jack Stand - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0789-0638

STAND-JACK LOGSPL - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0789-0709

STAND-JACK LOGSPL - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 781-0789-0716

STAND-JACK LOGSP - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 781-0789-0650

STAND-JACK LOGSP - RED METALLIC (0650)

$

$

Not available

Cub Cadet 781-0789-0662

STAND-JACK LOGSPL - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0789-0689

STAND-JACK LOGSPL - POLO GREEN (0689)

$

$

Not available

$

$

71

Cub Cadet 715-0120

Spiral Pin

$10.99

$

In Stock, only 1 left!

0
