Grizzly ZTR 72 (968999628) - Dixon 72" Grizzly Zero-Turn Mower, 30hp Kohler (2008) HYDRAULIC PUMP / MOTOR Parts Diagram

72" Grizzly Zero-Turn Mower, 30hp Kohler

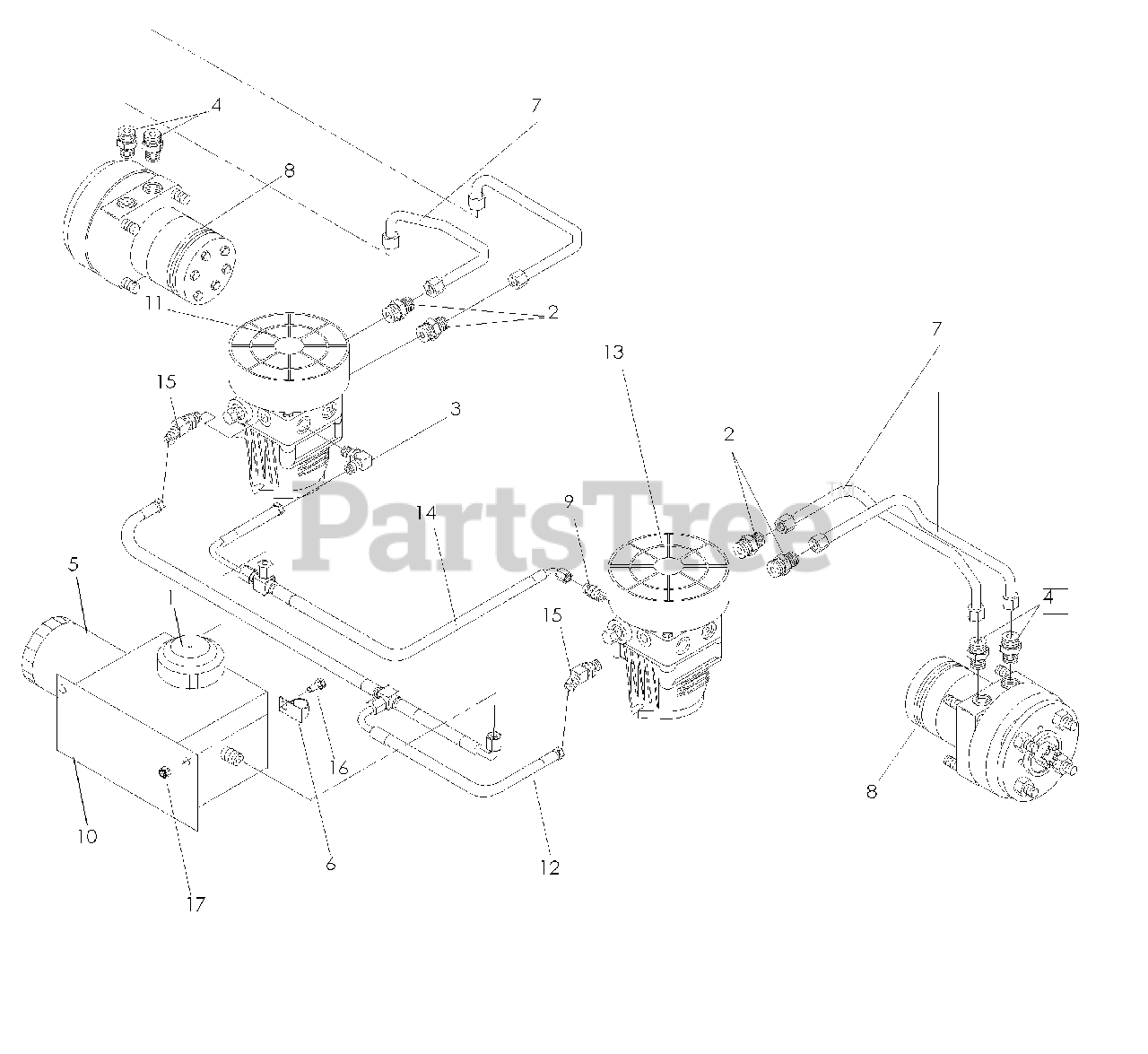

HYDRAULIC PUMP / MOTOR Parts Diagram

  • Title

1

Dixon 539101202

HYDRAULIC CAP

$24.99

$

In Stock, only 1 left!

0

2

Dixon 539101237

FITTING, STRAIGHT F6400-8-8-0

$12.99

$

In Stock, only 2 left!

0

3

Dixon 539101238

ELBOW, F6801-6-6-0 90 DEGREE

$15.99

$

Usually ships in 3-10 days

0

4

Dixon 539102396

FITTING

$

$

Not available

5

Dixon 539102606

HYDRAULIC OIL FILTER

$44.99

$

In Stock, Qty 8

0

6

Dixon 539102685

LOOM CLIP

$4.99

$

Usually ships in 3-10 days

0

7

Dixon 539106067

RUBBER HYDRAULIC HOSE (1)

$

$

Not available

8

Dixon 539110823

TL15 WHEEL MOTOR

$1139.99

$

Usually ships in 3-10 days

0

9

Dixon 539113782

Hydraulic Fitting

$7.49

$

In Stock, only 3 left!

0

10

Dixon 539114715

RESERVOIR W/CAP & FILTER

$

$

Not available

11

Dixon 539114834

10CC PUMP W/6" FANS RH
(Superseded to 539132143)

Note: RH

$1942.99

$

Usually ships in 3-10 days

0

12

Dixon 539114862

T-ASM, INLET

$84.99

$

Usually ships in 3-10 days

0

13

Dixon 539114864

10CC PUMP W/6" FANS LH
(Superseded to 539132142)

Note: LH

$1942.99

$

Usually ships in 3-10 days

0

14

Dixon 539114870

T-ASM, RETURN

$

$

Not available

15

Dixon 539114872

FITTING, HYDR 45 DEG

$10.99

$

Usually ships in 3-10 days

0

16

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

17

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0
