Grizzly ZTR 72 (968999628) - Dixon 72" Grizzly Zero-Turn Mower, 30hp Kohler (2008) 72 INCH CUTTING DECK Parts Diagram

72" Grizzly Zero-Turn Mower, 30hp Kohler

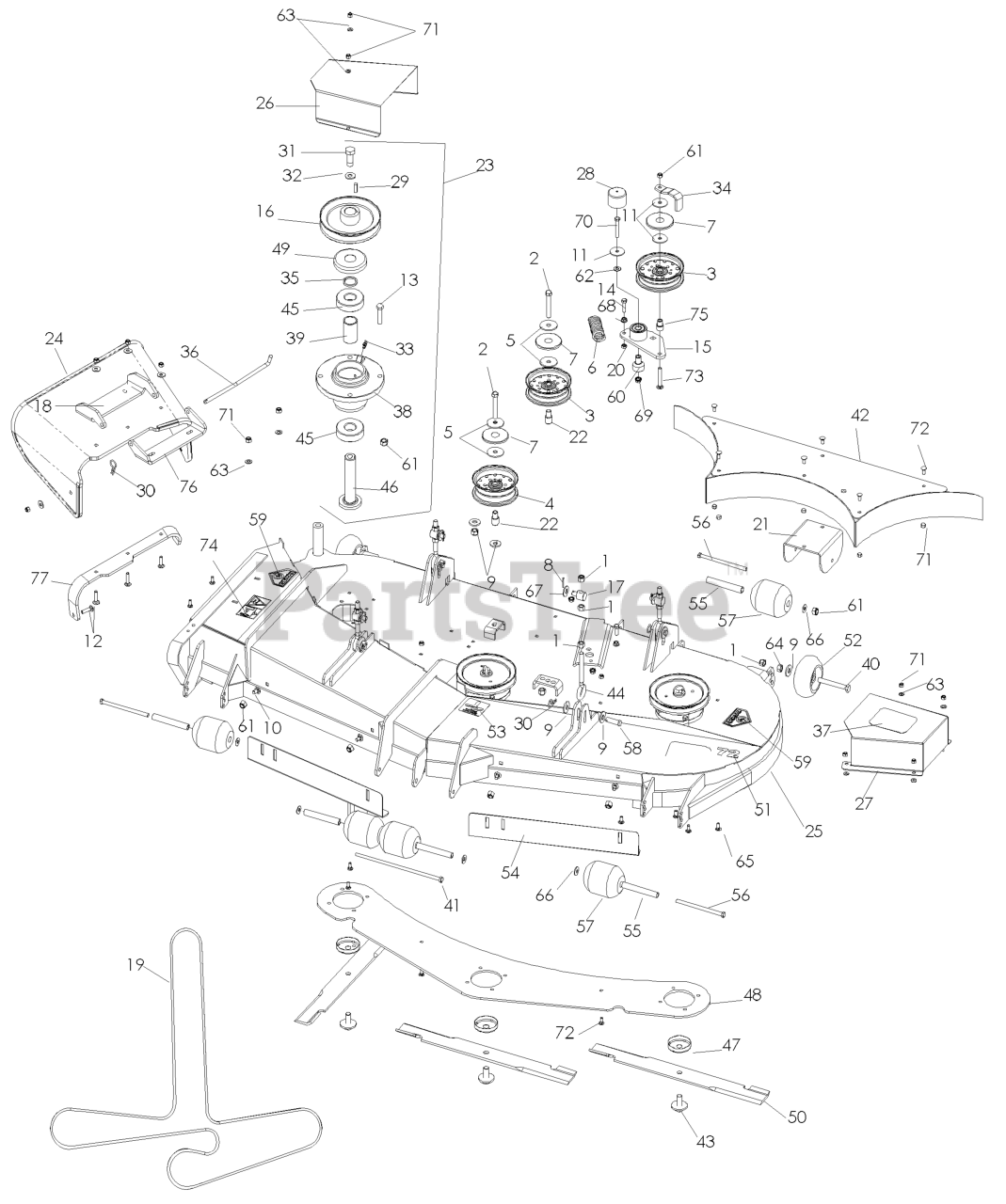

72 INCH CUTTING DECK Parts Diagram

  • Title

1

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

2

Dixon 539101572

SCREW, 1/2C X 3 HEX CAP

$5.99

$

In Stock, Qty 8

0

3

Dixon 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 20+

0

4

Dixon 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, Qty 6

0

5

Dixon 539104959

ISOLATOR WASHER

$15.99

$

In Stock, only 1 left!

0

6

Dixon 539105192

DECK SPRING

$

$

Not available

7

Dixon 539108450

TOP DUST CAP

$5.99

$

In Stock, Qty 14

0

8

Dixon 539109246

PIN COTTER 1/8 X 1 ZD

$3.99

$

Usually ships in 3-10 days

0

9

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

10

Dixon 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$7.99

$

Usually ships in 3-10 days

0

11

Dixon 539111897

WASHER, 3/8 SPEC

$

$

Not available

12

Dixon 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

13

Dixon 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

14

Dixon 539107042

HCS 3/8-16 X 1-1/2

$3.99

$

In Stock, Qty 6

0

15

Dixon 539130391

ARM-IDLER W/BRG

$

$

Not available

16

Dixon 539114039

PULLEY, 7.50 O.D.

$

$

Not available

17

Dixon 539114405

SWIVEL

$22.99

$

Usually ships in 3-10 days

0

18

Dixon 539130927

PIVOT BRKT RUBBER CHUTE

$121.99

$

Usually ships in 3-10 days

0

19

Dixon 539114552

BELT-DECK, 72

$157.99

$

Usually ships in 3-10 days

0

20

Dixon 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, Qty 13

0

21

Dixon 539114581

REAR CENTER ROLLER BKT 72 BLK

$

$

Not available

22

Dixon 539114582

SPACER - IDLER

$26.99

$

Usually ships in 3-10 days

0

23

Dixon 539114599

SPINDLE ASSEMBLY, 72

$

$

Not available

24

Dixon 539130861

CHUTE, RUBBER DISCHARGE 72"

$

$

Not available

25

Dixon 539114646

DECK W/DECAL 72 GRIZZLY

$1180.99

$

Usually ships in 3-10 days

0

26

Dixon 539114657

PULLEY GUARD 72, RH PAINTED

Note: RH

$60.99

$

Usually ships in 3-10 days

0

27

Dixon 539114659

PULLEY GUARD 72, LH PAINTED

Note: LH

$109.99

$

Usually ships in 3-10 days

0

28

Dixon 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0

29

Dixon 539115387

KEY - 1/4 X .88

$

$

Not available

30

Dixon 539115501

PIN, COTTER 1 3/4

$3.99

$

Usually ships in 3-10 days

0

31

Dixon 539115511

1/2-20 UNF X 1 1/4 HHBLT

$4.99

$

Usually ships in 3-10 days

0

32

Dixon 539115636

WASHER .525 X 1.375 X .25

$11.99

$

In Stock, only 1 left!

0

33

Dixon 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

Usually ships in 3-10 days

0

34

Dixon 539114981

GUIDE, BELT

$

$

Not available

35

Dixon 539115753

SPACER .25

$

$

Not available

36

Dixon 539116225

DEFLECTOR PIN

$

$

Not available

37

Dixon 539116696

REAR FLOOR PAD-LH

Note: LH

$6.49

$

Usually ships in 3-10 days

0

38

Dixon 539117970

DECK HUB MACHINED

$

$

Not available

39

Dixon 539117971

SPACER

$

$

Not available

40

Dixon 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.99

$

In Stock, Qty 15

0

41

Dixon 539118929

3/8-16X12 HHB G5

$

$

Not available

42

Dixon 539118974

W-BAFFLE WLDT

$188.99

$

Usually ships in 3-10 days

0

43

Dixon 539119007

BLADE BOLT/WASHER

$13.99

$

In Stock, Qty 20+

0

44

Dixon 539119227

BOLT, EYE

$18.99

$

In Stock, only 3 left!

0

45

Dixon 539119260

BEARING - 6305 - 2RS

$

$

Not available

46

Dixon 539119262

SHAFT SHORT

$

$

Not available

47

Dixon 539119266

TRASH GUARD

$

$

Not available

48

Dixon 539119306

HUB STIFFENER PLATE

$103.99

$

Usually ships in 3-10 days

0

49

Dixon 539119811

TRASH GUARD

$18.99

$

In Stock, only 1 left!

0

50

Dixon 539119841

BLD 72" HI LIFT FUS

$

$

Not available

51

Dixon 539130248

DECAL, 72"

$

$

Not available

52

Dixon 539107610

GAUGE WHEEL
(Superseded to 532133957)

$14.99

$

In Stock, Qty 20+

0

53

Dixon 539122249

DECAL, BELT ROUTING (18656)

$4.99

$

Usually ships in 3-10 days

0

54

Dixon 539122564

BLOW BY BAFFLE

$

$

Not available

55

Dixon 539122574

BUSHING

$24.99

$

Usually ships in 3-10 days

0

56

Dixon 539122625

3/8-16 X 6-1/2 HHB GR8

$4.99

$

Usually ships in 3-10 days

0

57

Dixon 539122633

ROLLER 3-3/4 DIA. X 4-1

$

$

Not available

58

Dixon 539122729

CLEVIS PIN 1/2X1-3/4LG

$

$

Not available

59

Dixon 539913010

DECAL, CPSC

$4.99

$

In Stock, only 2 left!

0

60

Dixon 539130205

PIVOT, BEARING

$4.99

$

In Stock, only 2 left!

0

61

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

62

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

63

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

64

Dixon 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 13

0

65

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

66

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

67

Dixon 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

68

Dixon 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

69

Dixon 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

70

Dixon 539990637

HCS 3/8C X 2 1/2
(Superseded to 596434201)

$4.99

$

In Stock, Qty 19

0

71

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

72

Dixon 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 20+

0

73

Dixon 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

74

Dixon 539105746

DECAL, EURO SEVERING

$3.99

$

In Stock, only 2 left!

0

75

Dixon 539130242

BUSHING, IDLER

$3.99

$

In Stock, only 4 left!

0

76

Dixon 539130912

PIVOT BRACKET - DECK

$60.99

$

Usually ships in 3-10 days

0

77

Dixon 539130915

BRKT, REINF-CHUTE 72"

$

$

Not available
