Grizzly ZTR 52 (968999588) - Dixon 52" Grizzly Zero-Turn Mower, 27hp Kohler (2008) MOWER LIFT / DECK LIFT Parts Diagram

52" Grizzly Zero-Turn Mower, 27hp Kohler

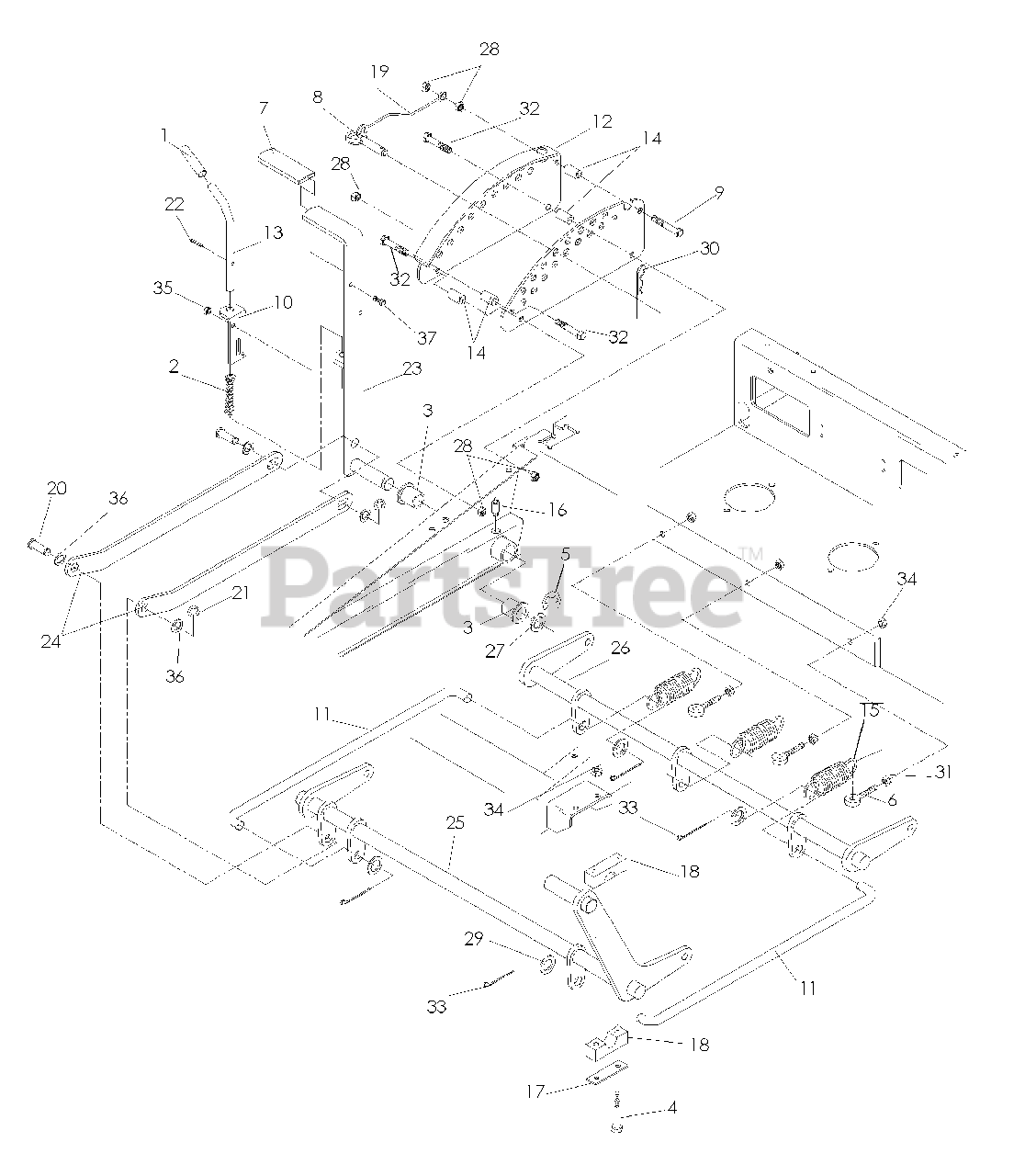

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

1

Dixon 539101050

GRIP

$3.99

$

In Stock, only 4 left!

0

2

Dixon 539101058

SPRING

$4.99

$

In Stock, only 2 left!

0

3

Dixon 539101232

BUSHING, FLANGED

$13.99

$

In Stock, Qty 7

0

4

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

5

Dixon 539101802

E-RING 7/8

$3.99

$

Usually ships in 3-10 days

0

6

Dixon 539101982

EYEBOLT, RH

$43.99

$

Usually ships in 3-10 days

0

7

Dixon 539102515

GRIP

$

$

Not available

8

Dixon 539102526

HITCH PIN

$21.99

$

Usually ships in 3-10 days

0

9

Dixon 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, only 3 left!

0

10

Dixon 539103534

PIN MT, UPPER

$27.99

$

Usually ships in 3-10 days

0

11

Dixon 539104310

CONNECTING LINK

$21.99

$

In Stock, only 1 left!

0

12

Dixon 539130486

PLATE, HEIGHT

$

$

Not available

13

Dixon 539104523

PIN

$

$

Not available

14

Dixon 539104530

DECK LIFT SPACER

$7.49

$

Usually ships in 3-10 days

0

15

Dixon 539104760

DECK LIFT SPRING

$

$

Not available

16

Dixon 539104761

GREASE ZERK LONG

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

18

Dixon 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

19

Dixon 539105059

LANYARD

$10.99

$

In Stock, only 1 left!

0

20

Dixon 539105060

CLEVIS PIN

$4.99

$

Usually ships in 3-10 days

0

21

Dixon 539105069

E-RING 5/8

$3.99

$

Usually ships in 3-10 days

0

22

530106532

$

$

Not available

23

Dixon 539108322

LIFT LEVER WELDMENT

$103.99

$

Usually ships in 3-10 days

0

24

Dixon 539114363

STRAP, LIFT

$

$

Not available

25

Dixon 539114364

SHAFT, LIFT, FRONT

Note: FRONT

$

$

Not available

26

Dixon 539114365

SHAFT, LIFT, REAR

Note: REAR

$

$

Not available

27

Dixon 539923787

BSHG .875 X 1.375 X .074 ZD

$3.99

$

In Stock, only 1 left!

0

28

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

29

Dixon 539976982

WASHER 5/8 FLAT

$4.99

$

Usually ships in 3-10 days

0

30

Dixon 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

31

Dixon 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

32

Dixon 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

33

Dixon 539990654

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

34

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

35

Dixon 539990761

NUT 1/4C CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

36

Dixon 539991043

BUSHING

$3.99

$

Usually ships in 3-10 days

0

37

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0
