Grizzly SE 7234FX (966516701) - Dixon 72" Grizzly Zero-Turn Mower (2009-10) HYDRAULIC PUMP-MOTOR Parts Diagram

72" Grizzly Zero-Turn Mower

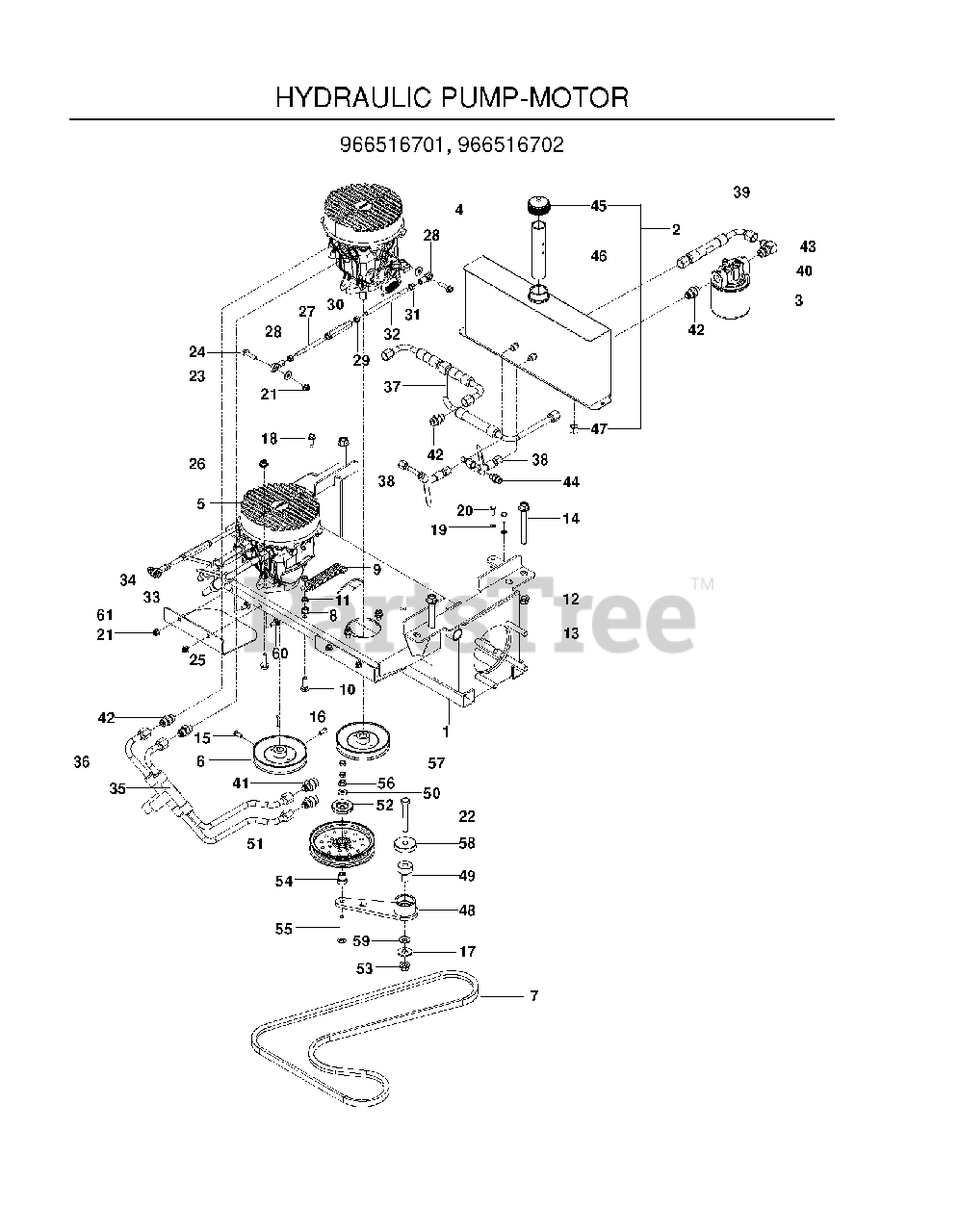

HYDRAULIC PUMP-MOTOR Parts Diagram

  • Title

1

Dixon 506007902

FRAME, NYDR SUB, BLK

$909.99

$

Usually ships in 3-10 days

0

2

Dixon 506120802

ASSEMBLY, OIL TANK
(Superseded to 576035902)

Note: . 46 47 62

$376.99

$

Usually ships in 3-10 days

0

3

Dixon 522805401

FILTER 25 MICRON

$31.99

$

Usually ships in 3-10 days

0

4

Dixon 506120401

HG_PUMP, 16CC RT

$1595.99

$

In Stock, only 1 left!

0

5

Dixon 506120501

HG_PUMP, 16CC LT

$1481.99

$

Usually ships in 3-10 days

0

6

Dixon 510019002

PULLEY, PUMP 17MM

$47.99

$

In Stock, only 2 left!

0

7

Dixon 573978301

BELT, "B", 75.5"

$66.99

$

In Stock, only 3 left!

0

8

Dixon 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

9

Dixon 510254401

SPRING, PUMP

$

$

Not available

10

Dixon 539100413

RHSNB 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

11

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

12

Dixon 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

13

Dixon 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

14

Dixon 525544801

HHFS 1/2-13 X 4.0 GD8 ZD

$6.49

$

Usually ships in 3-10 days

0

15

Dixon 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.99

$

In Stock, only 4 left!

0

16

Dixon 539101177

KEY 5 MM SQ X 25 MM

$8.99

$

In Stock, only 2 left!

0

17

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

18

Dixon 539113226

Hex Washer Head Bolt, 5/16-18 X 3/4 Thread Forming
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

22

Dixon 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

23

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

24

Dixon 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

25

Dixon 525834201

HHFS 3/8-16 X 1.25 GD 5

$

$

Not available

26

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

27

Dixon 522559201

LINKAGE, CONTROL, FT

$

$

Not available

28

Dixon 539102590

BALL JOINT, RIGHT HANDED

$27.99

$

In Stock, only 1 left!

0

29

Dixon 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

30

Dixon 539109149

TURNBUCKLE, 3/8

$48.99

$

Usually ships in 3-10 days

0

31

Dixon 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

32

Dixon 522842801

LINKAGE, CONTROL, RR

$91.99

$

Usually ships in 3-10 days

0

33

Dixon 510013601

LINE, RT A

$120.99

$

Usually ships in 3-10 days

0

34

Dixon 510013701

LINE, RT B

$109.99

$

Usually ships in 3-10 days

0

35

Dixon 510013801

LINE, LT A

$242.99

$

Usually ships in 3-10 days

0

36

Dixon 510013901

LINE, LT B

$121.99

$

In Stock, only 1 left!

0

37

Dixon 510014001

LINE, CHARGE

$205.99

$

In Stock, only 1 left!

0

38

Dixon 510014501

LINE, CASE

$169.99

$

Usually ships in 3-10 days

0

39

Dixon 510010701

LINE, SUCTION

$34.99

$

Usually ships in 3-10 days

0

40

Dixon 539105892

FILTER HEAD

$

$

Not available

41

Dixon 539101239

CONNECTOR, STRAIGHT
(Superseded to 539101237)

$12.99

$

In Stock, only 2 left!

0

42

Dixon 539101237

FITTING, STRAIGHT F6400-8-8-0

$12.99

$

In Stock, only 2 left!

0

43

Dixon 539101242

ELBOW, 90 DEGREE

$34.99

$

Usually ships in 3-10 days

0

44

Dixon 539103316

STRAIGHT FITG

$11.99

$

Usually ships in 3-10 days

0

45

Dixon 522805301

CAP, HYDRAULIC

$31.99

$

Usually ships in 3-10 days

0

46

Dixon 522805001

TUBE, ANTI-SPLASH

$113.99

$

Usually ships in 3-10 days

0

47

Dixon 539105168

NUT 9/16-18 JIC CAP

$3.99

$

In Stock, only 3 left!

0

48

Dixon 510041603

ARM, IDLER, STEEL, W/BGS

$56.99

$

Usually ships in 3-10 days

0

49

Dixon 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

50

Dixon 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

51

Dixon 510283702

IDLER, FLAT, 5.5"

$

$

Not available

52

Dixon 510254501

DUST SHIELD

$

$

Not available

53

Dixon 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

54

Dixon 525435601

PIVOT, IDLER

$8.99

$

In Stock, only 4 left!

0

55

Dixon 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

56

Dixon 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

57

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

58

Dixon 539114662

SHIELD, DUST

$

$

Not available

59

Dixon 539115528

CONTACT BELLSPR 1/2

$3.99

$

Usually ships in 3-10 days

0

60

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

61

Dixon 574398502

SHIELD, PULLEY, BLK

$34.99

$

Usually ships in 3-10 days

0

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

Note: NOT SHOWN

$6.49

$

In Stock, Qty 12

0
