Grizzly SE 7234FX (966516701) - Dixon 72" Grizzly Zero-Turn Mower (2009-10) FRAME Parts Diagram

72" Grizzly Zero-Turn Mower

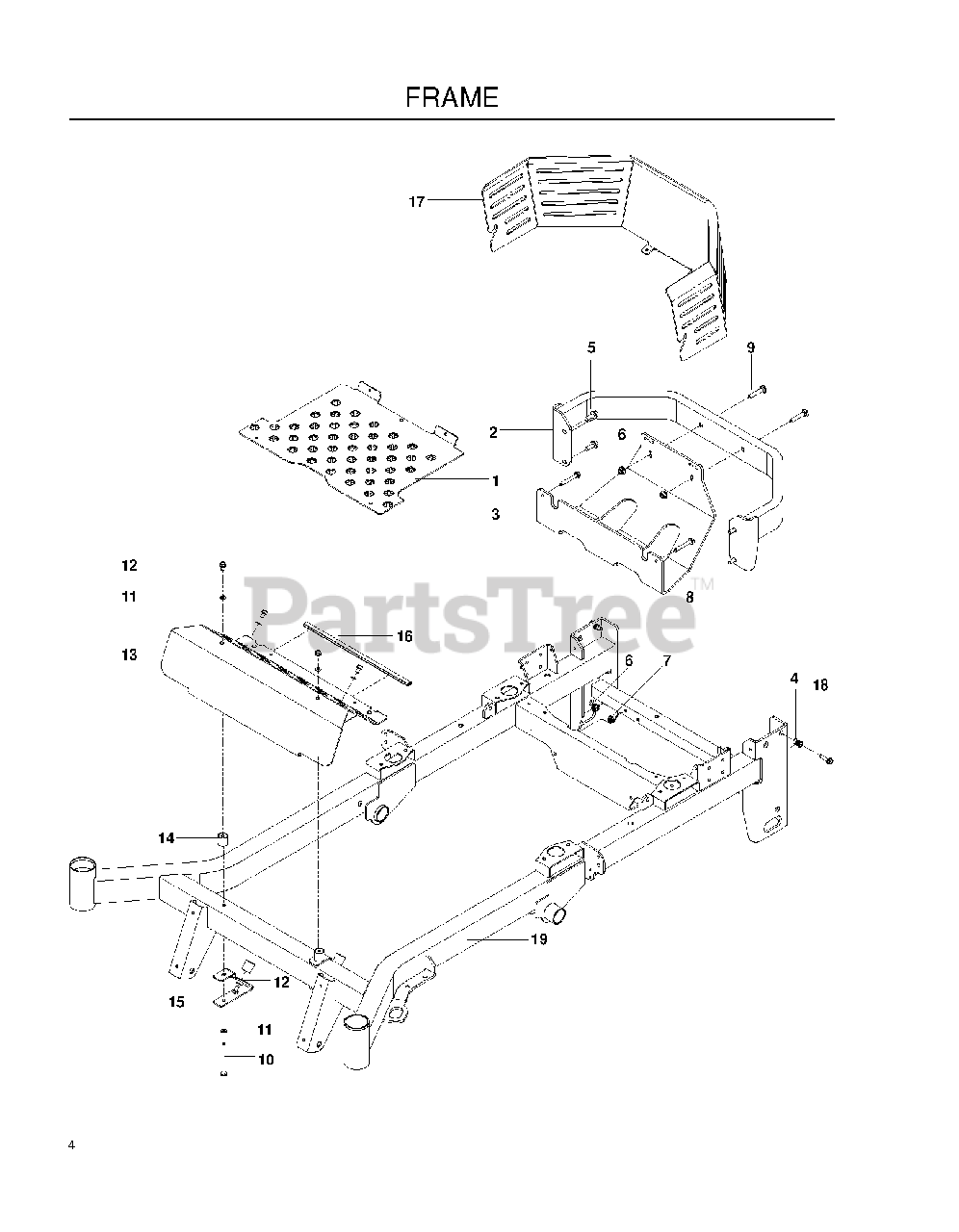

FRAME Parts Diagram

  • Title

1

Dixon 574215603

PLATE, FLOOR PAN, BLUE

$

$

Not available

2

Dixon 522675703

BUMPER, REAR, BLUE

$145.99

$

Usually ships in 3-10 days

0

3

Dixon 574228604

PLATE, SKID, BLACK

$

$

Not available

4

Dixon 539111028

NUTSERT 5/16-18 THICK GRIP

$

$

Not available

5

Dixon 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

6

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

7

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

8

Dixon 574233801

HHFS 5/16-18 X 2.25 GD 5

$4.99

$

Usually ships in 3-10 days

0

9

Dixon 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.99

$

In Stock, only 4 left!

0

10

Dixon 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

11

Dixon 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

12

Dixon 539990858

SCR 5/16-18 X 1/2 SELFTAP ZN

$3.99

$

Usually ships in 3-10 days

0

13

Dixon 574298802

PLATE.FOOTREST.BLUE.DIXON

$113.99

$

Usually ships in 3-10 days

0

14

Dixon 510083201

MOUNT, F/F INSERT

$7.49

$

In Stock, Qty 18

0

15

Dixon 510040301

BRACKET, REST MOUNT

$10.99

$

Usually ships in 3-10 days

0

16

Dixon 539112294

Flex Trim, 1' Black
(Superseded to 589362602)

$5.99

$

In Stock, only 4 left!

0

17

Dixon 574299103

GUARD, REAR, BLUE

$

$

Not available

18

Dixon 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

19

Dixon TBD

TBD

Note: 72

$

$

Not available
