Grizzly 7234FX BF (966516702) - Dixon 72" Grizzly Zero-Turn Mower (2009-10) PARKING BRAKE Parts Diagram

72" Grizzly Zero-Turn Mower

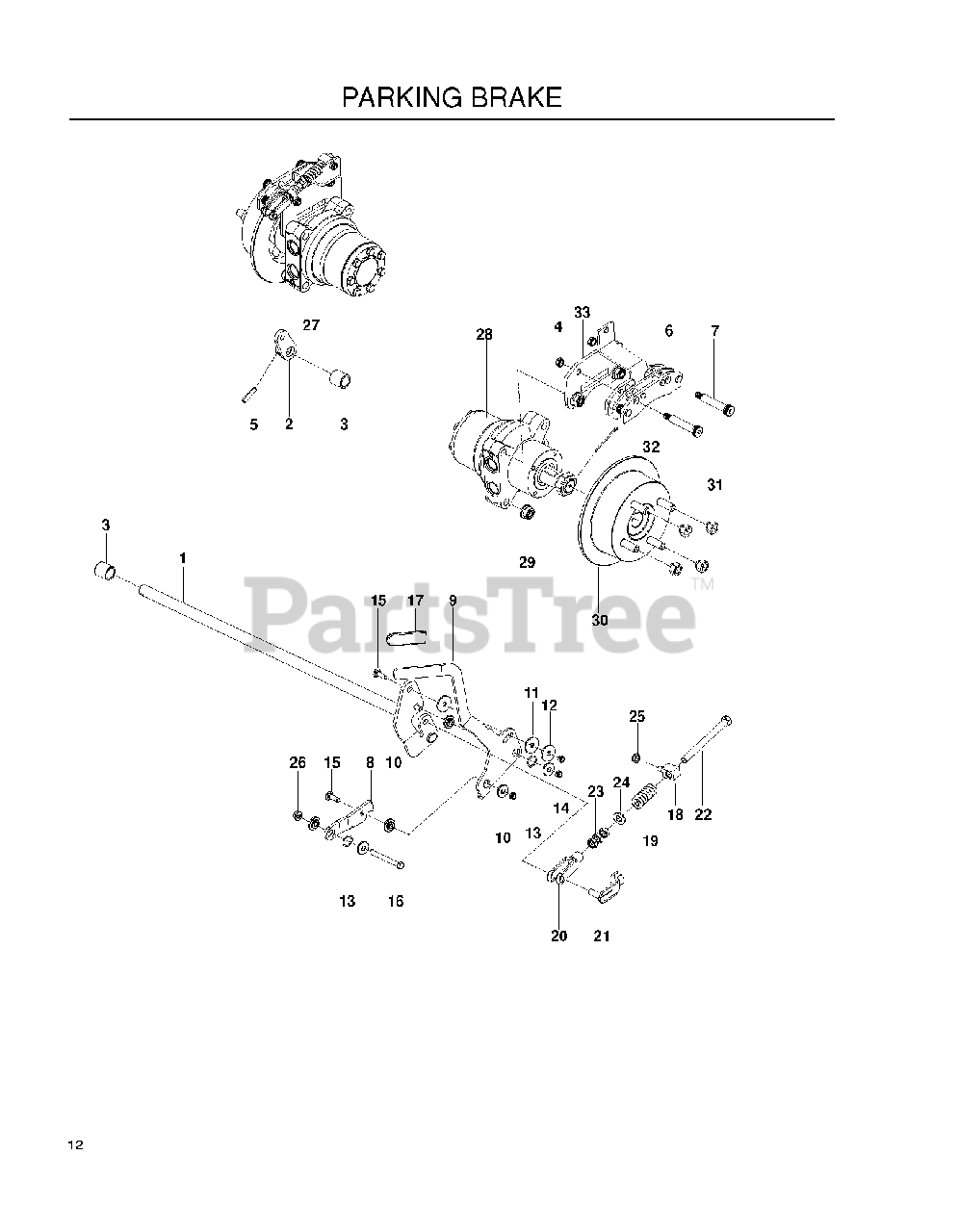

PARKING BRAKE Parts Diagram

  • Title

1

Dixon 525851201

SHAFT, BRAKE WLDMT

$

$

Not available

2

Dixon 510025901

ARM, RT BRAKE

$157.99

$

Usually ships in 3-10 days

0

3

Dixon 510089201

BUSHING, SLEEVE 3/4 X 1.0

$17.99

$

In Stock, only 4 left!

0

4

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 7

0

5

Dixon 539110631

5/16 DIA ROLL PIN

$3.99

$

In Stock, Qty 16

0

6

Dixon 539133047

CALIPER

$120.99

$

In Stock, Qty 9

0

7

Dixon 516035501

BOLT, SHOULDER, 1/2 X 2.25

$4.99

$

Usually ships in 3-10 days

0

8

Dixon 515980301

LINK, FOLLOWER

$

$

Not available

9

Dixon 515980002

LEVER.BRAKE.BLACK

$66.99

$

Usually ships in 3-10 days

0

10

Dixon 539132161

BUSHING, BRAKE

$6.49

$

Usually ships in 3-10 days

0

11

Dixon 525490901

WASHER, FRICTION, 1/8

$11.99

$

Usually ships in 3-10 days

0

12

Dixon 539912063

CONE WASHER

$7.99

$

Usually ships in 3-10 days

0

13

Dixon 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, Qty 20+

0

14

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 7

0

15

Dixon 539100413

RHSNB 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 539923463

HCS 3/8-16 X 3-1/4 GR5 ZD

$

$

Not available

17

Dixon 539976526

GRIP

$3.99

$

In Stock, only 3 left!

0

18

Dixon 525851401

SWIVEL, BRAKE

$

$

Not available

19

Dixon 539113952

SPRING

$7.49

$

Usually ships in 3-10 days

0

20

Dixon 539977465

YOKE

$34.99

$

In Stock, Qty 11

0

21

Dixon 522705901

PIN, CLEVIS SPRING, 3/8

$

$

Not available

22

Dixon 539104984

HCS 3/8F X SPECIAL

$

$

Not available

23

Dixon 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

24

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

25

Dixon 539115617

5/16-18 THIN PROF NY

$

$

Not available

26

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

27

Dixon 574805202

MOTOR, TL0310, RT

Note: RT /966516701 966516702

$1367.99

$

Usually ships in 3-10 days

0

28

Dixon 574805201

MOTOR, TL0310, LT

Note: LT /966516701 966516702

$1367.99

$

Usually ships in 3-10 days

0

29

Dixon 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 20+

0

30

Dixon 525848701

HUB, DISC BRAKE, W/STUDS

$250.99

$

Usually ships in 3-10 days

0

31

Dixon 539101173

LUG NUT 1/2F

$

$

Not available

32

Dixon 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

33

Dixon 525851601

PLATE, CALIPER

$21.99

$

Usually ships in 3-10 days

0
