Grizzly 72 (968999628) - Dixon 72" Grizzly Zero-Turn Mower (2008-05) CASTERS Parts Diagram

72" Grizzly Zero-Turn Mower

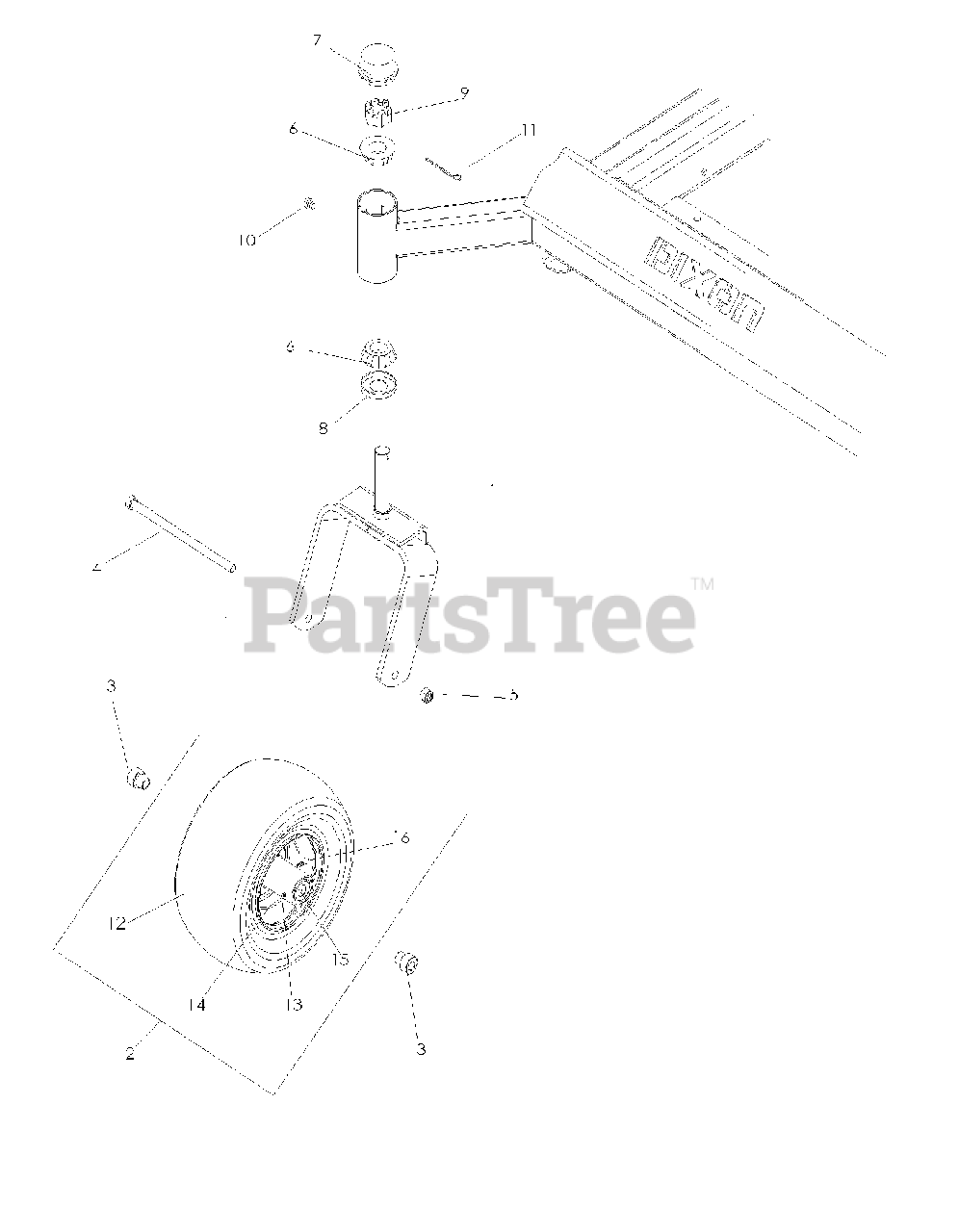

CASTERS Parts Diagram

  • Title

1

Dixon 539114367

YOKE, CASTER, BLUE

$339.99

$

Usually ships in 3-10 days

0

2

Dixon 539105521

FRONT TIRE ASSY

$182.99

$

In Stock, only 3 left!

0

3

Dixon 539105518

AXLE SPACER

$9.49

$

In Stock, only 4 left!

0

4

Dixon 539105517

HEX SCREW 1/2-13 X 9.5 GR5

$

$

Not available

5

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

6

Dixon 539102543

TAPERED ROLLER BRG

$40.99

$

In Stock, only 2 left!

0

7

Dixon 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

8

Dixon 539102851

SEAL

$7.99

$

In Stock, only 4 left!

0

9

Dixon 539102852

NUT 1"C HEX SLOTTED

$

$

Not available

10

Dixon 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

11

Dixon 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

12

Dixon 539105522

TIRE - SMOOTH 13X6.50-6

$120.99

$

In Stock, only 2 left!

0

13

Dixon 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

14

Dixon 539105523

RIM

$

$

Not available

15

Dixon 539105524

SEAL

$9.49

$

In Stock, only 3 left!

0

16

Dixon 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

Dixon 539105525

TAPERED BEARING W/RACE

Note: NOT SHOWN

$24.99

$

In Stock, only 3 left!

0
