Grizzly 72 (968999592) - Dixon 72" Grizzly Zero-Turn Mower, 30hp Kohler (2007) CONSOLE Parts Diagram

72" Grizzly Zero-Turn Mower, 30hp Kohler

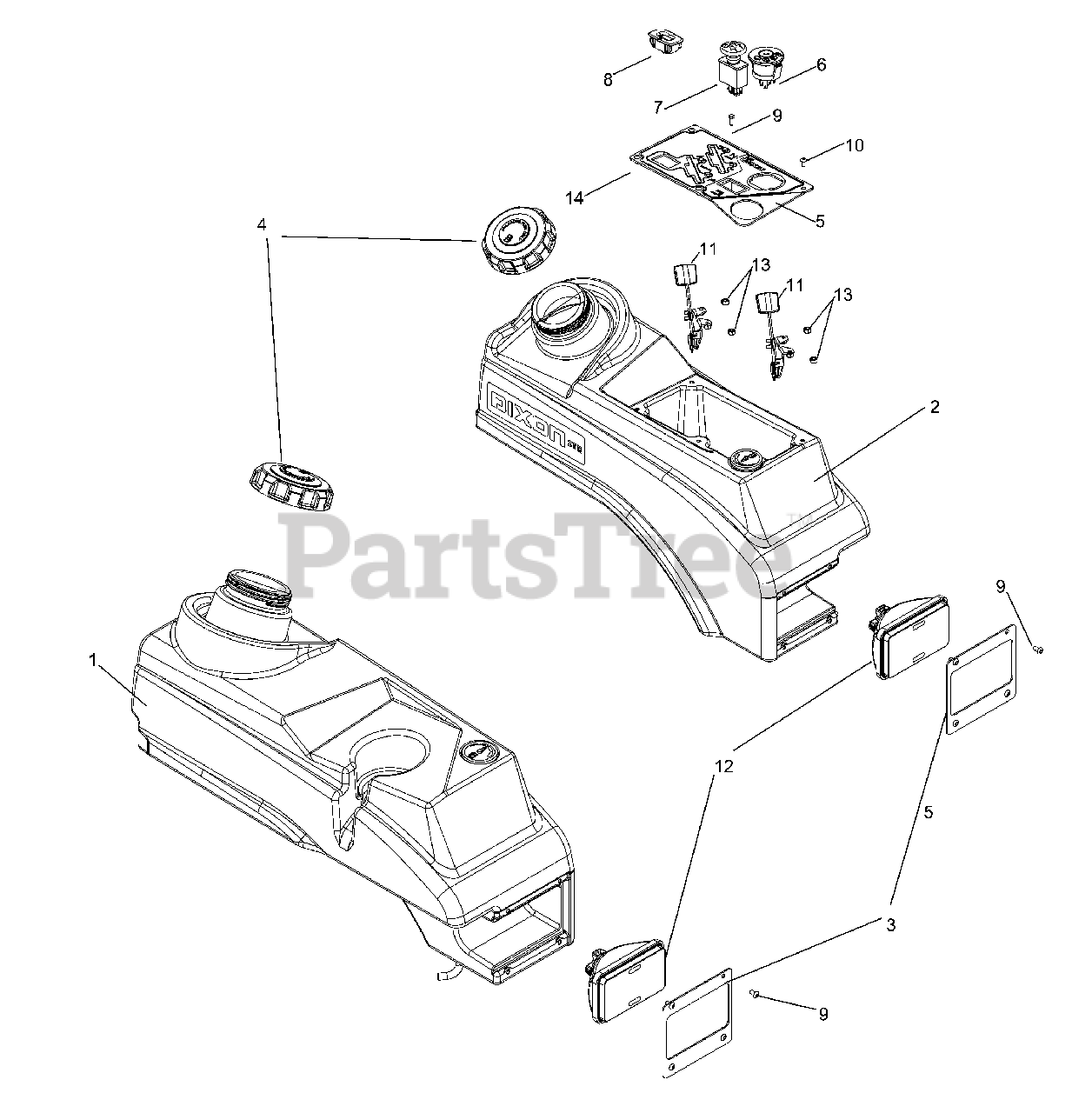

CONSOLE Parts Diagram

  • Title

1

Dixon 539114057

TANK, FUEL, LT

$

$

Not available

2

Dixon 539114058

TANK, FUEL, RT

$

$

Not available

3

Dixon 539114075

PLATE LIGHT

$24.99

$

Usually ships in 3-10 days

0

4

Dixon 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

Usually ships in 3-10 days

0

5

Dixon 539114066

CONTROL PANEL

$

$

Not available

6

Dixon 539118848

IGNITION SWITCH
(Superseded to 539107541)

$26.99

$

In Stock, Qty 7

0

7

Dixon 539101768

SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, only 3 left!

0

8

Dixon 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

9

Dixon 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

10

Dixon 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

$4.99

$

In Stock, only 3 left!

0

11

Dixon 539121866

CHOKE CABLE

$

$

Not available

12

Dixon 539114232

LIGHT

$

$

Not available

13

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

14

Dixon 539114068

DECAL, CONTROL

$10.99

$

Usually ships in 3-10 days

0
