Grizzly 6029FX BF (966516602) - Dixon 60" Grizzly Zero-Turn Mower (2009-10) IGNITION SYSTEM Parts Diagram

60" Grizzly Zero-Turn Mower

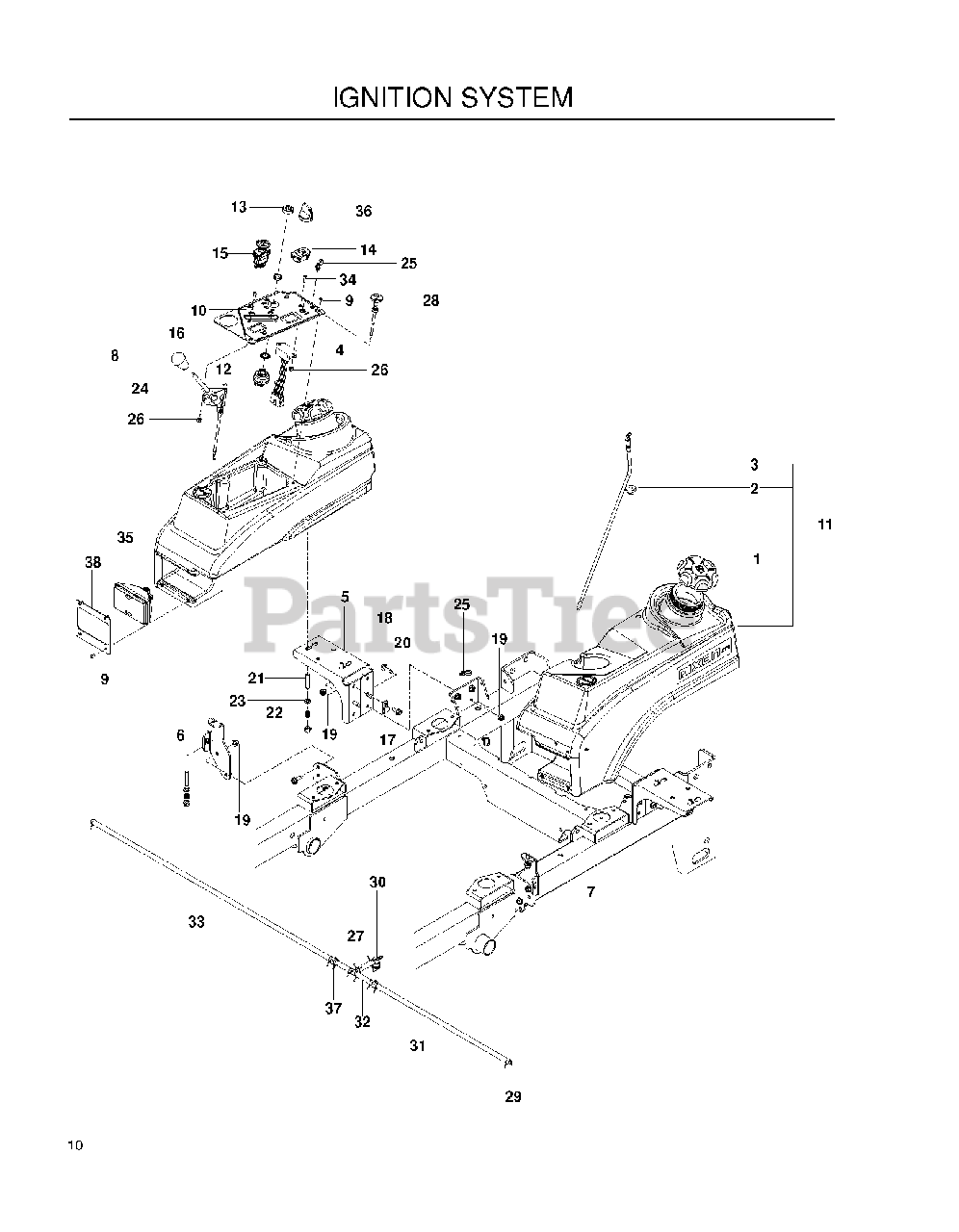

IGNITION SYSTEM Parts Diagram

  • Title

1

Dixon 539130394

FUEL CAP, GENERIC

$31.99

$

Usually ships in 3-10 days

0

2

Dixon 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 12

0

3

Dixon 574830601

FITTING, FUEL, LT

Note: LT

$17.99

$

Usually ships in 3-10 days

0

3

Dixon 574830501

FITTING, FUEL, RT

Note: RT

$24.99

$

Usually ships in 3-10 days

0

4

Dixon 574514001

TIMER, SEAT

$120.99

$

In Stock, only 1 left!

0

5

Dixon 510083002

MOUNT, TANK RR, BLK

Note: RR

$60.99

$

Usually ships in 3-10 days

0

6

Dixon 574211602

MOUNT, TANK, RT, BLK

Note: RT FRT

$24.99

$

Usually ships in 3-10 days

0

7

Dixon 574211702

MOUNT, TANK, LT, BLK

Note: LT FRT

$

$

Not available

8

Dixon 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

9

Dixon 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

$4.99

$

In Stock, only 3 left!

0

10

Dixon 510246603

Control Decal, YK

$28.99

$

Usually ships in 3-10 days

0

11

Dixon 575244602

FUEL TANK ASSY, LT

Note: LT

$

$

Not available

11

Dixon 575244702

ASSEMBLY, RT TANK, DIXON

Note: RT

$461.99

$

Usually ships in 3-10 days

0

12

Dixon 574455401

SWITCH, IGNITION, INDAK

$34.99

$

Usually ships in 3-10 days

0

13

Dixon 539103178

CAP IGNITION NUT

$4.99

$

Usually ships in 3-10 days

0

14

Dixon 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

15

Dixon 539131627

SWITCH, PTO 10 AMP
(Superseded to 597520401)

$100.99

$

In Stock, Qty 5

0

16

Dixon 574846002

PLATE, CONTROL, BLK

$26.99

$

Usually ships in 3-10 days

0

17

Dixon 539109867

DOUBLE TUBE CLAMP

$6.99

$

Usually ships in 3-10 days

0

18

Dixon 539113226

Hex Washer Head Bolt, 5/16-18 X 3/4 Thread Forming
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Dixon 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

21

Dixon 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

22

Dixon 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

23

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

24

Dixon 574207001

CABLE, THROTTLE, 46"

Note: 966516601 966516602

$53.99

$

In Stock, only 3 left!

0

25

Dixon 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

26

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

27

Dixon 574206601

TEE, FUEL LINE, .25

$3.99

$

Usually ships in 3-10 days

0

28

Dixon 574206901

Choke Cable, 48"
(Superseded to 531077202)

$31.99

$

In Stock, Qty 8

0

29

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

30

Dixon 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

31

Dixon 539922091

FUEL LINE

$3.99

$

Usually ships in 3-10 days

0

32

Dixon 505215101

FUEL LINE 2.5"

$3.99

$

Usually ships in 3-10 days

0

33

Dixon 539105280

HOSE 35"

$14.99

$

Usually ships in 3-10 days

0

34

Dixon 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

35

Dixon 539114232

LIGHT

$

$

Not available

36

Dixon 574455501

KEY, IGNITION

$6.99

$

Usually ships in 3-10 days

0

37

Dixon 574206701

VALVE, CHECK, .25

$9.49

$

Usually ships in 3-10 days

0

38

Dixon 539114075

PLATE LIGHT

$24.99

$

Usually ships in 3-10 days
