Grizzly 60 - Dixon 60" Grizzly Zero-Turn Mower (2006) MOWER DECK Parts Diagram

60" Grizzly Zero-Turn Mower

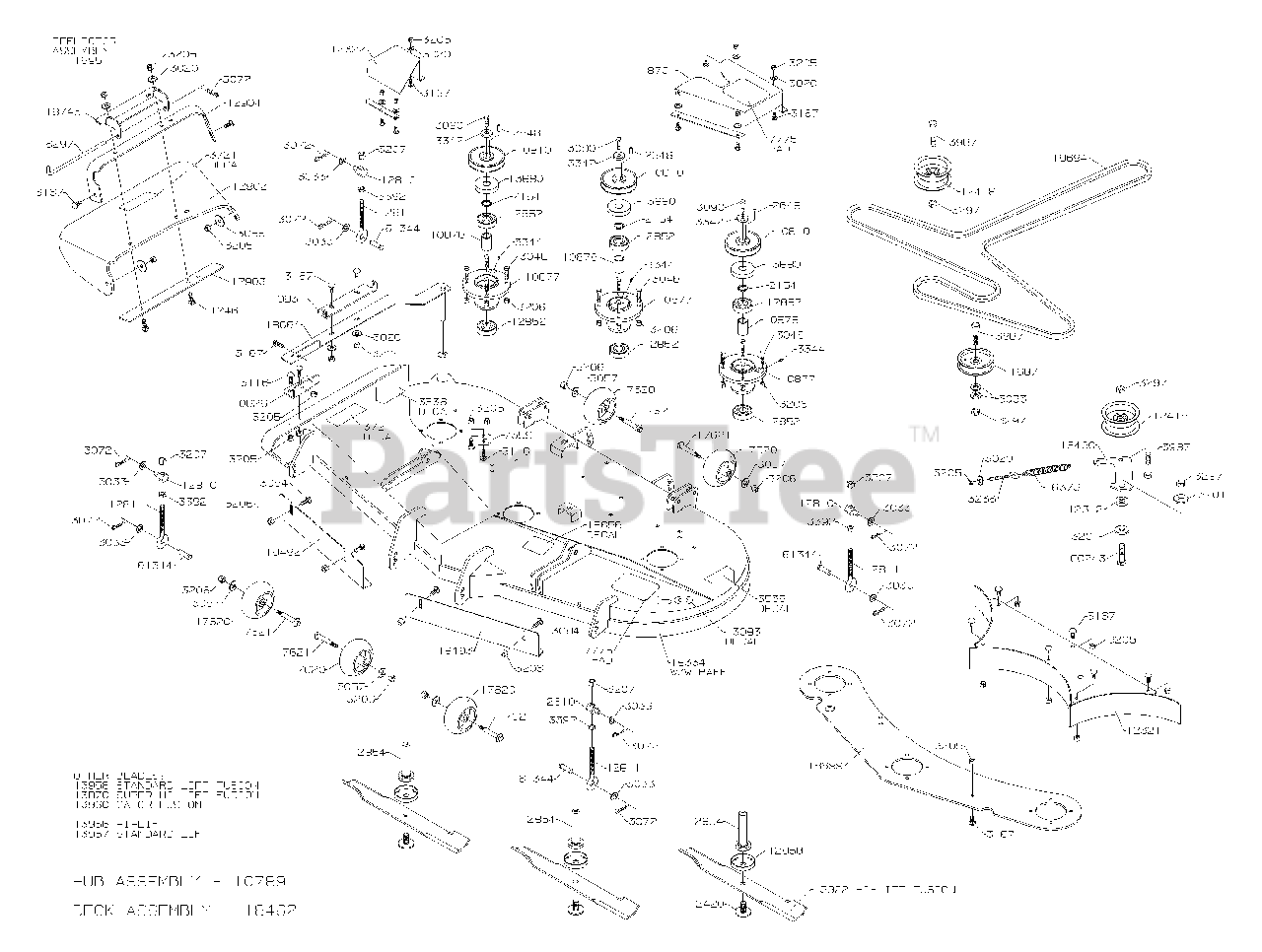

MOWER DECK Parts Diagram

  • Title

1246

1246

5/16-18 X 1-1/4 CAR BLT

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

2154

2154

HUB PULLEY SPACER

$

$

Not available

2648

2648

KEY - 1/4 X .88

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3084

3084

3/8-16X3/4 CARR BOLT

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3201

3201

WASHER-.533IDX1.37OD

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3236

3236

EYE BOLT 5/16 X 3.50

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3392

3392

NUT, HEX JAM 1/2-13

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3987

Dixon 3987

1/2-13X2-1/2 HHB GR5

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

7359

7359

ROD MOUNT

$

$

Not available

7775

7775

REAR FLOOR PAD-LH

$

$

Not available

9831

9831

HINGE

$

$

Not available

10789

10789

SPINDLE ASM.

$

$

Not available

10810

10810

METRIC PULLEY

$

$

Not available

10826

10826

LATCH RECEIVER

$

$

Not available

10877

10877

DECK HUB MACHINED

$

$

Not available

10878

10878

SPACER

$

$

Not available

11695

11695

DEFLECTOR ASM.

$

$

Not available

12312

12312

$

$

Not available

12321

12321

W-BAFFLE WLDT.

$

$

Not available

12322

12322

PULLEY GUARD-RH

$

$

Not available

12418

12418

IDLER PULLEY

$

$

Not available

12420

12420

BLADE BOLT/WASHER

$

$

Not available

12810

12810

SWIVEL

$

$

Not available

12811

12811

$

$

Not available

12852

12852

BEARING - 6305 - 2RS

$

$

Not available

12854

12854

SHAFT SHORT

$

$

Not available

12858

12858

TRASH GUARD

$

$

Not available

12902

12902

DEFLECTOR 60"

$

$

Not available

12903

12903

$

$

Not available

12904

12904

$

$

Not available

13870

13870

BLD 60SUP HI LIFT FUS

$

$

Not available

13880

13880

TRASH GUARD

$

$

Not available

13922

13922

BLD 60" HI LIFT FUSION

$

$

Not available

13956

13956

BLD 60` HI-LIFT

$

$

Not available

13957

13957

BLD 60" STD. LIFT

$

$

Not available

13958

13958

BLD 60" STD LIFT FUS

$

$

Not available

13960

13960

BLD 60" GATOR FUSION

$

$

Not available

13983

13983

DECAL, DECK 60"

$

$

Not available

16373

16373

SPRING DECK BELT

$

$

Not available

17620

17620

GUAGE WHEEL

$

$

Not available

17621

17621

SHOULDER BOLT

$

$

Not available

18334

18334

DECK W/W-BAFFLE DIX

$

$

Not available

18460

18460

IDLER ARM

$

$

Not available

18462

18462

MOWER DECK ASM. 60`

$

$

Not available

18492

18492

BLOW BY BAFFLE

$

$

Not available

18493

18493

BLOW BY BAFFLE LH 60

$

$

Not available

18656

18656

DECAL, BELT ROUTING (18656)

$

$

Not available

18664

18664

DEFLECTOR PIVOT WLDT.

$

$

Not available

18694

18694

BELT DECK DRIVE

$

$

Not available

18699

18699

HUB STIFFENER PLATE

$

$

Not available

18701

18701

$

$

Not available

18745

18745

DEFLECTOR PIVOT

$

$

Not available

60243

60243

CAPSCREW 1/2-13X2-1/4

$

$

Not available

61344

61344

CLEVIS PIN 1/2X1-3/4LG

$

$

Not available
