Grizzly 60 (968999627) - Dixon 60" Grizzly Zero-Turn Mower, 30hp Kohler (2008-05) SEAT Parts Diagram

60" Grizzly Zero-Turn Mower, 30hp Kohler

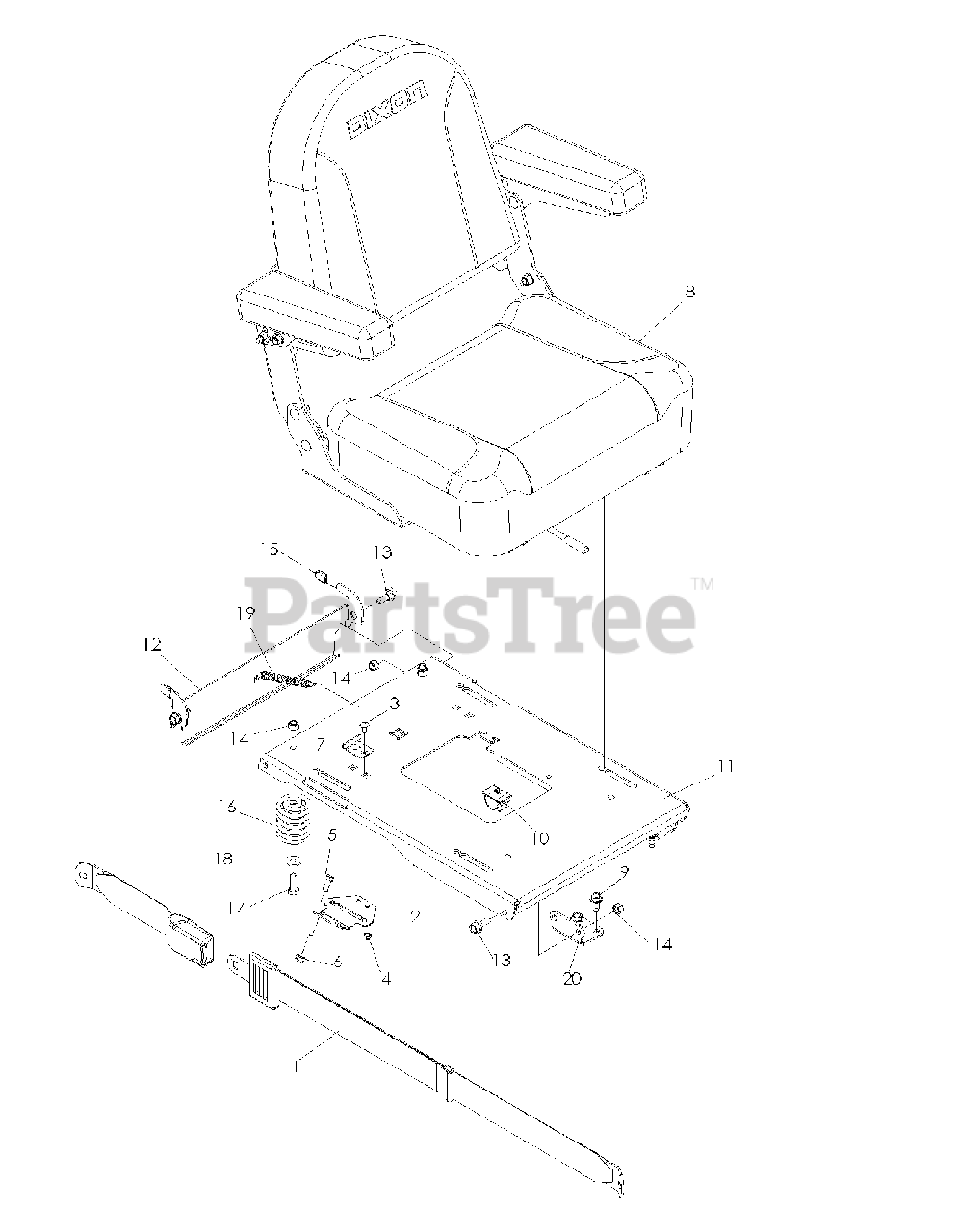

SEAT Parts Diagram

  • Title
1

Dixon 539111026

SEAT BELT

$

$

Not available

2

Dixon 539130791

MOUNT, SEAT BELT

$14.99

$

Usually ships in 3-10 days

0

3

Dixon 539109100

RHSNB 5/16-18 X 3/4

$4.99

$

Usually ships in 3-10 days

0

4

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

5

Dixon 539100143

HCS 7/16-14 X 1 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

6

Dixon 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

7

Dixon 539130793

STOP, SEAT - BLACK
(Superseded to 539130794)

$4.99

$

Usually ships in 3-10 days

0

8

Dixon 539119274

SEAT ASM.

Note: MODELS 968999591 968999592 968999627 968999628 UNITS PRODUCED BEFORE SERIAL NO . 0741XXXXX

$

$

Not available

Dixon 539130930

SEAT ASSEMBLY PREMIUM

Note: MODELS 968999591 968999592 968999627 968999628 UNITS PRODUCED AFTER SERIAL NO . 0741XXXXX

$566.99

$

Usually ships in 3-10 days

0

9

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

10

Dixon 539110815

PUSH-MOUNT WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

11

Dixon 539130785

PAN, SEAT - BLACK

$121.99

$

Usually ships in 3-10 days

0

12

Dixon 539130787

LATCH, SEAT - BLACK

$26.99

$

Usually ships in 3-10 days

0

13

Dixon 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

14

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

15

Dixon 539130898

GRIP, VINYL, .09 X .495 X.75

$9.49

$

Usually ships in 3-10 days

0

16

Dixon 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

17

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

18

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

19

$

$

Not available

20

Dixon 539130789

PIVOT, SEAT PAN

$15.99

$

Usually ships in 3-10 days

0

Dixon 539104392

SEAT HARNESS

Note: UNITS PRODUCED BEFORE SERIAL NO . 0741XXXXX NOT SHOWN

$

$

Not available

Dixon 539130872

SEAT HARNESS

Note: UNITS PRODUCED AFTER SERIAL NO . 0741XXXXX NOT SHOWN

$

$

Not available
