Grizzly 60 (968999626) - Dixon 60" Grizzly Zero-Turn Mower (2008-05) SEAT Parts Diagram

60" Grizzly Zero-Turn Mower

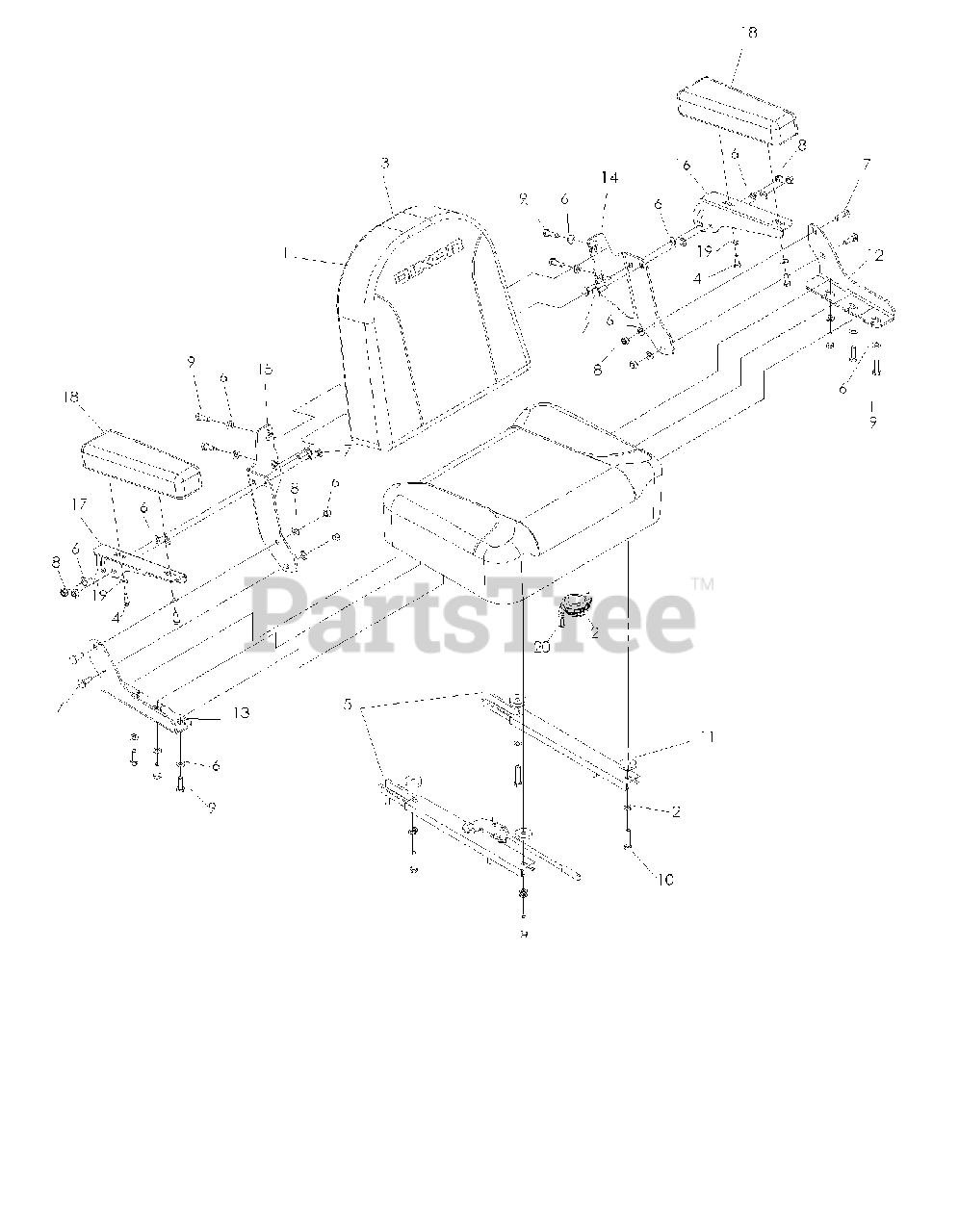

SEAT Parts Diagram

  • Title

1

Dixon 539122379

SEAT ASM W/SLIDE
(Superseded to 501580402)

Note: . 2 3 4-19

$797.99

$

Usually ships in 3-10 days

0

2

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

3

Dixon 539122380

SEAT BACK

$

$

Not available

4

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

5

Dixon 539128796

SEAT SLIDE (SET)

Note: SET

$46.99

$

Usually ships in 3-10 days

0

6

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

7

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

8

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

9

Dixon 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

10

Dixon 539115682

5/16-18X1-1/2 HHB GR5WNY

$4.99

$

Usually ships in 3-10 days

0

11

Dixon 539115789

WASHER NYLON

$3.99

$

Usually ships in 3-10 days

0

12

Dixon 539118627

SEAT BOTTOM BRKT LH

Note: LH

$72.99

$

Usually ships in 3-10 days

0

13

Dixon 539118628

SEAT BOTTOM BRKT RH

Note: RH

$78.99

$

Usually ships in 3-10 days

0

14

Dixon 539118629

SEAT BACK BRKT LH

Note: LH

$35.99

$

Usually ships in 3-10 days

0

15

Dixon 539118630

SEAT BACK BRKT RH

Note: RH

$35.99

$

Usually ships in 3-10 days

0

16

Dixon 539121713

ARM REST BRACKET LH

Note: LH

$

$

Not available

17

Dixon 539121714

ARM REST BRACKET RH

Note: RH

$

$

Not available

18

Dixon 539121719

ARMREST

$

$

Not available

19

Dixon 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

20

Dixon 539108388

SCR 1/4-20X3/4 SLTD RDHD GR2ZD

$2.49

$

Usually ships in 3-10 days

0

21

Dixon 539131155

SEAT SWITCH KIT

Note: UNITS PRODUCED BEFORE SERIAL NO . 0741XXXXX

$

$

Not available

Dixon 539117398

SEAT SWITCH MILSCO

Note: UNITS PRODUCED AFTER SERIAL NO . 0741XXXXX

$34.99

$

Usually ships in 3-10 days

0
