Grizzly 60 (968999591) - Dixon 60" Grizzly Zero-Turn Mower, 30hp Kohler (2007) SEAT ASSEMBLY Parts Diagram

60" Grizzly Zero-Turn Mower, 30hp Kohler

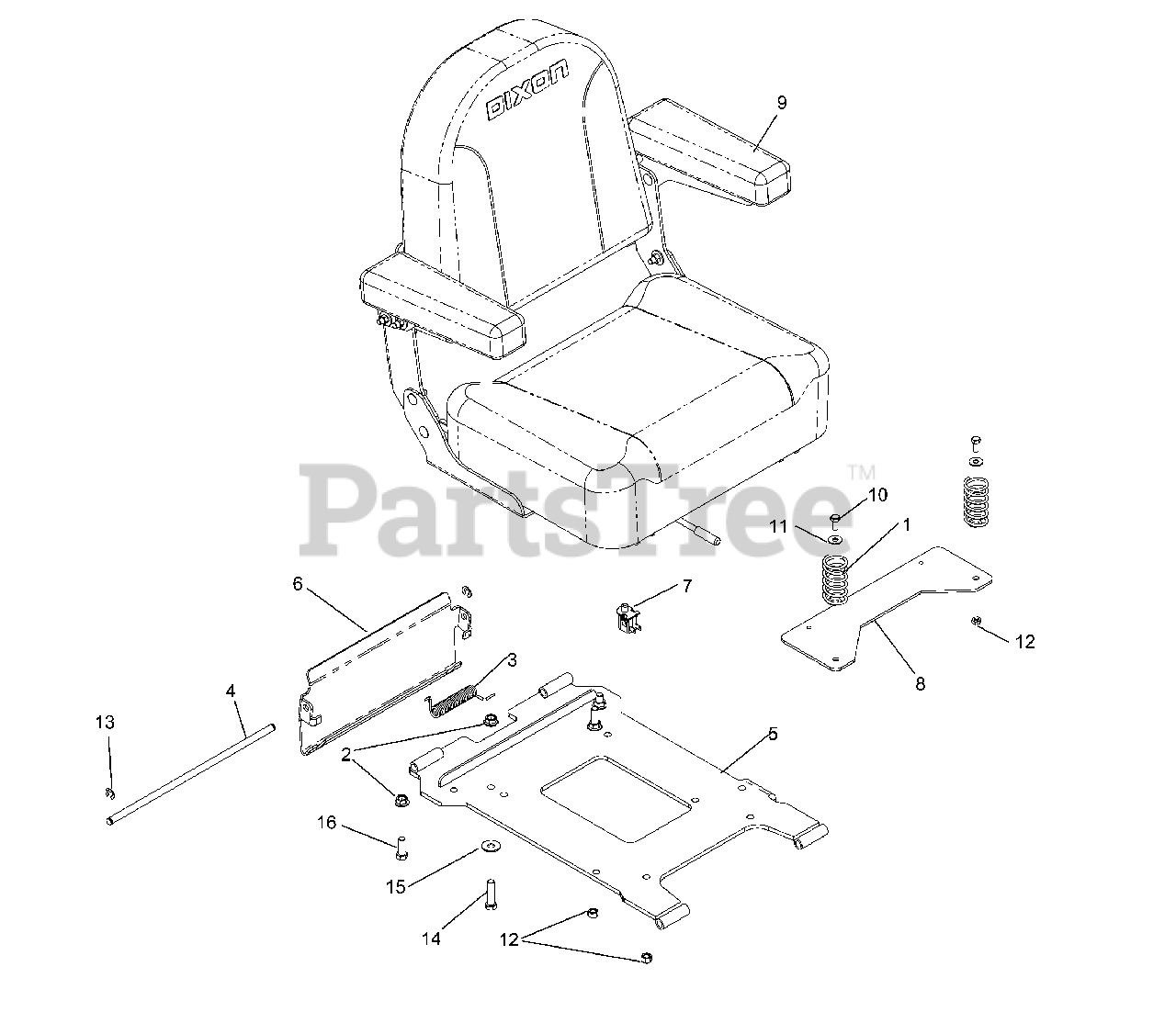

SEAT ASSEMBLY Parts Diagram

  • Title

1

Dixon 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 3 left!

0

2

Dixon 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

3

Dixon 539110645

TORSION SPRING (SEAT)

$12.99

$

Usually ships in 3-10 days

0

4

Dixon 539110646

SEAT LATCH ROD

$14.99

$

Usually ships in 3-10 days

0

539111023

$

$

Not available

Dixon 539104392

SEAT HARNESS

$

$

Not available

5

Dixon 539114609

SEAT MOUNT W/DECAL

$169.99

$

Usually ships in 3-10 days

0

6

Dixon 539114330

LATCH, SEAT

$

$

Not available

7

Dixon 539107523

SEAT SWITCH

$10.99

$

In Stock, Qty 6

0

8

Dixon 539114853

MOUNT, SPRING-SEAT, BLACK

$

$

Not available

9

Dixon 539122379

SEAT ASM W/SLIDE
(Superseded to 501580402)

$797.99

$

Usually ships in 3-10 days

0

10

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

11

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

12

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

13

Dixon 539990870

E RING 3/8"

$6.49

$

In Stock, only 1 left!

0

14

Dixon 539108046

TAP BOLT 3/8C X 1.5

$

$

Not available

15

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0
