Grizzly 60 (968999591) - Dixon 60" Grizzly Zero-Turn Mower, 30hp Kohler (2007) MAINFRAME Parts Diagram

60" Grizzly Zero-Turn Mower, 30hp Kohler

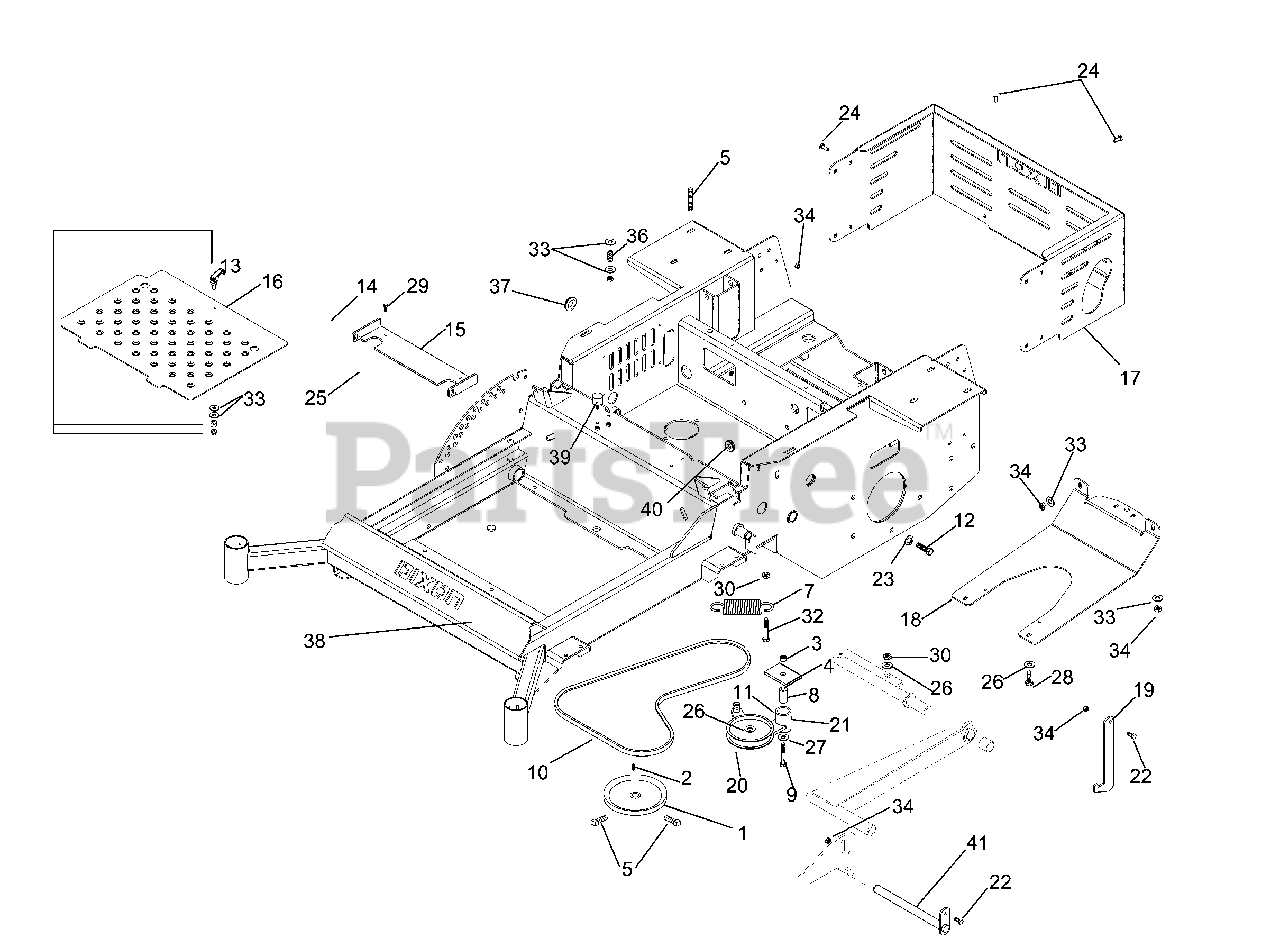

MAINFRAME Parts Diagram

  • Title

1

Dixon 539101176

PULLEY

$

$

Not available

2

Dixon 539101177

KEY 5 MM SQ X 25 MM

$8.99

$

In Stock, only 2 left!

0

3

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

4

Dixon 539102236

PAD

$27.99

$

Usually ships in 3-10 days

0

5

Dixon 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

6

Dixon 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.99

$

In Stock, only 4 left!

0

7

Dixon 539103256

SPRING

$12.99

$

In Stock, Qty 5

0

8

Dixon 539103427

PIVOT BUSHING

$9.49

$

In Stock, Qty 8

0

9

Dixon 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

10

Dixon 539104334

PUMP BELT
(Superseded to 510201501)

$46.99

$

In Stock, Qty 7

0

11

Dixon 539104388

IDLER ARM WLDT
(Superseded to 539130532)

$182.99

$

Usually ships in 3-10 days

0

12

Dixon 539105905

HEX SCREW 7/16-14 X 1 GR8

$4.99

$

Usually ships in 3-10 days

0

13

Dixon 539109376

LATCH.SWELL.ACTION

$

$

Not available

14

Dixon 539110819

CLEVIS PIN 3/8

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 539114332

PLATE, MOUNT, SEAT

$

$

Not available

16

Dixon 539114611

FLOOR PLT W/DECAL

$

$

Not available

17

Dixon 539114612

GRD, REAR W/DECAL

$217.99

$

Usually ships in 3-10 days

0

18

Dixon 539114573

PLATE, SKID

$

$

Not available

19

Dixon 539114847

STOP, SEAT

$

$

Not available

20

Dixon 539976688

IDLER PULLEY

$

$

Not available

21

Dixon 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

22

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

23

Dixon 539990247

WASHER 7/16 LOCK

$

$

Not available

24

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

25

Dixon 539990365

COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

26

Dixon 539976695

BUSHING, IDLER FLANGE

$

$

Not available

27

Dixon 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

28

Dixon 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

29

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

30

Dixon 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

31

Dixon 539990654

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

32

Dixon 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

33

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

34

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

36

Dixon 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

37

Dixon 539114982

GROMMET

$3.99

$

Usually ships in 3-10 days

0

38

Dixon 539114610

FRAME W/DECALS
(Superseded to 539132435)

$1888.99

$

Usually ships in 3-10 days

0

39

Dixon 539105039

STUD/PLATE MOUNT

$6.49

$

Usually ships in 3-10 days

0

40

Dixon 539110433

GROMMET, FUEL LINE

$4.99

$

Usually ships in 3-10 days

0

41

Dixon 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0
