Grizzly 50 - Dixon 50" Grizzly Zero-Turn Mower (2006) CHASSIS Parts Diagram

50" Grizzly Zero-Turn Mower

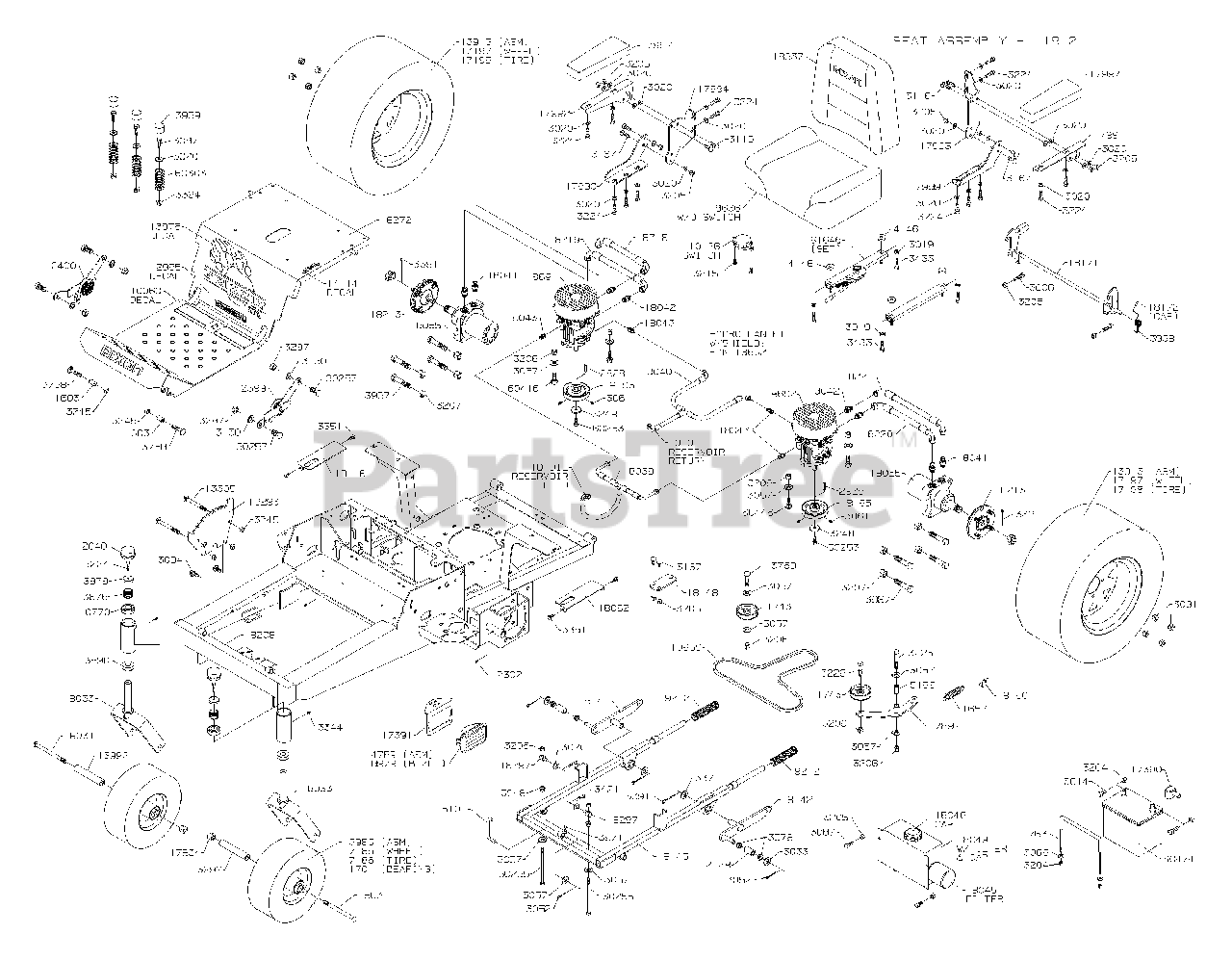

CHASSIS Parts Diagram

  • Title

1603

1603

BUSHING

$

$

Not available

1657

1657

SPRING

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1743

1743

1743-IDLER FLAT 3`

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

2128

2128

SLEEVE 7/8 X 1-1/2

$

$

Not available

2928

2928

KEY-3/16 DIA X 1

$

$

Not available

2995

2995

COMMERCIAL DECAL

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3084

3084

3/8-16X3/4 CARR BOLT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3215

3215

1/4-20X3/4RD HD SCR

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3371

3371

WASHER .76X1.25X.085

$

$

Not available

3391

3391

1/8DIAX1-1/2 COT PIN

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3433

3433

5/16-18X1-1/2 HHB GR5WNY

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3878

3878

$

$

Not available

3890

Dixon 3890

BEARING

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

3948

3948

FLIP-LOK BUSHING

$

$

Not available

3971

3971

LINK RETAINER

$

$

Not available

3987

Dixon 3987

1/2-13X2-1/2 HHB GR5

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4789

4789

HEADLIGHT

$

$

Not available

5101

5101

BRAKE LINK

$

$

Not available

5189

5189

BUSHING

$

$

Not available

6224

6224

STABILIZER WLDT

$

$

Not available

8979

8979

HEADLIGHT BEZEL

$

$

Not available

9212

9212

SPRING(YELLOW ZINC CHROM

$

$

Not available

10060

10060

DECAL, OPERATING INST.

$

$

Not available

10126

10126

R/B 10126 SEAT SWITCH

$

$

Not available

10770

10770

BUSHING, CASTER

$

$

Not available

10959

10959

V-BELT

$

$

Not available

11912

11912

SEAT ASM.(REP. 18613)

$

$

Not available

12040

12040

DUST CAP

$

$

Not available

12302

12302

GREASE ZERK-1/4"

$

$

Not available

12399

12399

SPRING DRILLED-LH

$

$

Not available

12400

12400

SPRING DRILLED-RH

$

$

Not available

13305

13305

3/8-16X3-1/2 CARR GR5.

$

$

Not available

13768

13768

CARR BOLT 3/8-16X14-3/4G5

$

$

Not available

13913

13913

REAR WHEEL AND TIRE ASM.

$

$

Not available

13969

13969

$

$

Not available

13975

13975

DECAL, GRIZZLY

$

$

Not available

13986

13986

CASTER WHEEL & TIRE ASM.

$

$

Not available

13992

13992

TUBE

$

$

Not available

14114

14114

DECAL, PARK BRAKE

$

$

Not available

17185

17185

WHEEL (REF.13985)

$

$

Not available

17186

17186

TIRE (REF.13985)

$

$

Not available

17197

17197

REAR WHEEL

$

$

Not available

17198

17198

REAR TIRE

$

$

Not available

17390

17390

TERMINAL COVER

$

$

Not available

17391

17391

BRACKET HEADLIGHT.

$

$

Not available

17834

17834

NUT, HEX 1/2-13 W/NYLOK

$

$

Not available

17897

17897

IDLER ARM WLDT.

$

$

Not available

17989

17989

SEAT BOT.BRKT. LH

$

$

Not available

17990

17990

SEAT BOT.BRKT. RH

$

$

Not available

17991

17991

ARM REST BRACKET LH

$

$

Not available

17992

17992

ARM REST BRACKET RH

$

$

Not available

17993

17993

SEAT BACK BRKT. LH

$

$

Not available

17994

17994

SEAT BACK BRKT. RH

$

$

Not available

17997

17997

ARMREST

$

$

Not available

18031

18031

1/2-13 X 7 CARR. BOLT

$

$

Not available

18033

18033

CASTER WLDT.

$

$

Not available

18039

18039

HYDRAULIC HOSE T-ASM

$

$

Not available

18040

18040

HYDRAULIC HOSE T-ASM.

$

$

Not available

18041

18041

FITTING HYDRAULIC

$

$

Not available

18042

18042

FITTING HYDRAULIC

$

$

Not available

18043

18043

FITTING HYDRAULIC

$

$

Not available

18045

18045

25 MICRON FILTER

$

$

Not available

18046

18046

HYDRO TANK CAP-KELCH

$

$

Not available

18049

18049

TANK ASM W/FILTER & CAP

$

$

Not available

18055

18055

MOTOR PARKER.

$

$

Not available

18062

18062

HYDRO COVER LH

$

$

Not available

18116

18116

HYDRO COVER RH

$

$

Not available

18141

18141

LIFT CAM DRILLED-RH

$

$

Not available

18142

18142

LIFT CAM DRILLED-LH

$

$

Not available

18145

18145

LIFT FRAME WLDT

$

$

Not available

18148

18148

HITCH

$

$

Not available

18150

18150

SPRING BRKT.

$

$

Not available

18171

18171

LATCH WLDT. (PLATED)

$

$

Not available

18172

18172

PLASTIC CAP

$

$

Not available

18195

18195

PULLEY

$

$

Not available

18208

18208

$

$

Not available

18213

18213

HUB ASM W/BRAKE & LUGS

$

$

Not available

18218

18218

HYDRAULIC HOSE

$

$

Not available

18219

18219

HYDRAULIC HOSE

$

$

Not available

18220

18220

HYDRAULIC HOSE

$

$

Not available

18221

18221

HYDRAULIC HOSE

$

$

Not available

18272

18272

SEAT FRAME WLDT.

$

$

Not available

18293

18293

QUADRANT (PLATED)

$

$

Not available

18297

18297

SWIVEL

$

$

Not available

18636

18636

SEAT BOTTOM

$

$

Not available

18637

18637

SEAT BACK

$

$

Not available

18662

18662

HUB/FAN KIT W/SHROUD

$

$

Not available

18691

18691

PJ-3HCC-GY1C-XXXX PUMP

$

$

Not available

18692

18692

PJ-3KCC-GY1C-XXXX PUMP

$

$

Not available

60253

60253

CAPSCREW HH 6MM X 16MM

$

$

Not available

60255

60255

3/8-16X6-1/2HHB GR8

$

$

Not available

60257

60257

CAPSCREW HEXHEAD 1/2-13

$

$

Not available

60303

60303

SEAT SPRING

$

$

Not available

60446

60446

3/8-16X1-1/4 CARRIAGE

$

$

Not available

60474

Dixon 60474

BATTERY

$

$

Not available

61646

61646

SEAT SLIDE (SET)

$

$

Not available
