Grizzly 50 - Dixon 50" Grizzly Zero-Turn Mower (2005) WIRING Parts Diagram

50" Grizzly Zero-Turn Mower

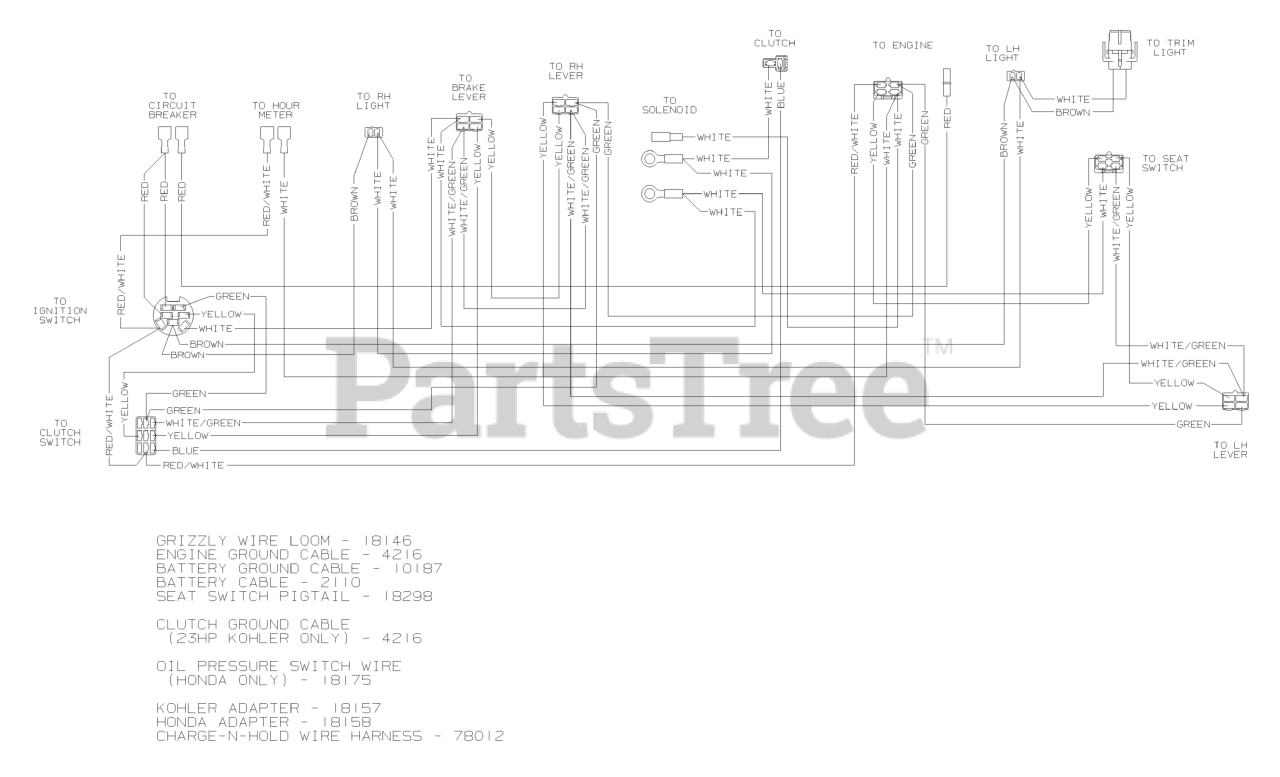

WIRING Parts Diagram

  • Title
2110

2110

BATTERY CABLE ASSY

$

$

Not available

4216

Dixon 4216

R/B 4216 BATT TO GROUND CABLE

$

$

Not available

10187

10187

GROUND CABLE

$

$

Not available

18146

18146

WIRE LOOM

$

$

Not available

18157

18157

ADAPTER-KOHLER

$

$

Not available

18158

18158

ADAPTER-HONDA

$

$

Not available

18175

18175

OIL PRESS.SWITCH WIRE

$

$

Not available

18298

18298

PIG TAIL WIRING

$

$

Not available

78012

78012

WIRE HRNS/CHARGE-N-HOLD

$

$

Not available
