Grizzly 50 - Dixon 50" Grizzly Zero-Turn Mower (2005) MOWER DECK Parts Diagram

50" Grizzly Zero-Turn Mower

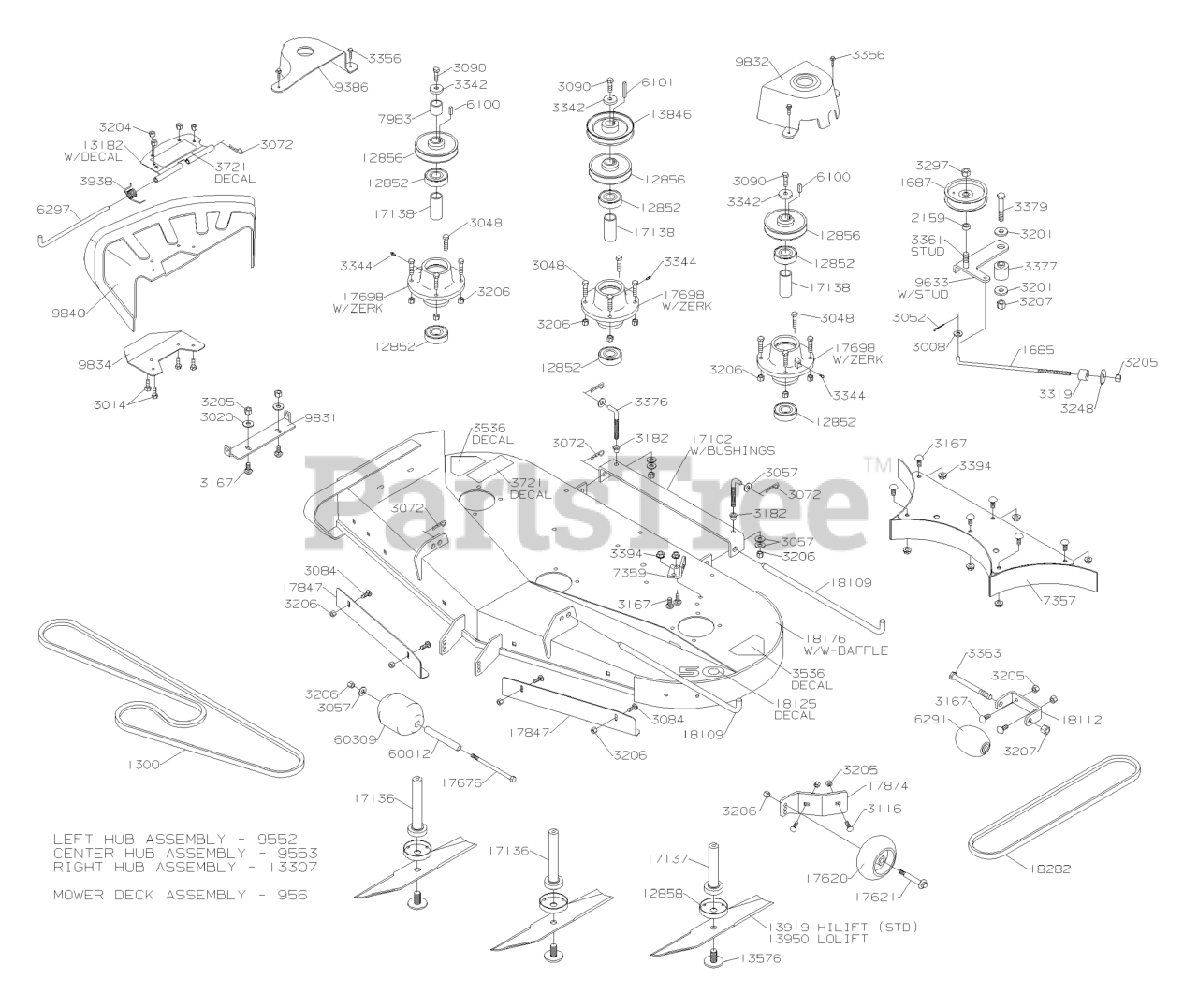

MOWER DECK Parts Diagram

  • Title

956

956

DECK 50" GRIZZLY

$

$

Not available

1300

1300

BELT-MOWER DRIVE

$

$

Not available

1685

1685

L-ROD

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

2159

2159

TUBE .51 I.D. X .75 O.D.

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3084

3084

3/8-16X3/4 CARR BOLT

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3201

3201

WASHER-.533IDX1.37OD

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3363

3363

1/2-13X5-1/2 HHBGR5

$

$

Not available

3376

3376

L-ROD 5`

$

$

Not available

3377

3377

SERP. IDLER SPACER

$

$

Not available

3379

3379

1/2-13X3 HHB GR5

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6291

6291

DECK ROLLER

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

7357

7357

W-BAFFLE WLDT.

$

$

Not available

7359

7359

ROD MOUNT

$

$

Not available

7983

7983

SPACER

$

$

Not available

9386

9386

BELT GUARD RH

$

$

Not available

9552

9552

OUTER HUB ASM 50

$

$

Not available

9553

9553

CENTER HUB ASM 50

$

$

Not available

9633

9633

SERP IDLER ASM

$

$

Not available

9831

9831

HINGE

$

$

Not available

9832

9832

PULLEY GUARD

$

$

Not available

9834

9834

DEFLECTOR BRACKET

$

$

Not available

9840

9840

DEFLECTOR

$

$

Not available

12852

12852

BEARING - 6305 - 2RS

$

$

Not available

12856

12856

PULLEY

$

$

Not available

12858

12858

TRASH GUARD

$

$

Not available

13182

13182

DEFLECTOR MT BRKT

$

$

Not available

13307

13307

50` HUB ASM RH

$

$

Not available

13576

13576

BLADE BOLT

$

$

Not available

13846

13846

PULLEY

$

$

Not available

13919

13919

BLD 50`HI LIFT FUSION

$

$

Not available

13950

13950

BLD 50" STD LIFT FUS

$

$

Not available

17102

17102

LIFT PLATE

$

$

Not available

17136

17136

SHAFT 50L

$

$

Not available

17137

17137

SHAFT 50S

$

$

Not available

17138

17138

HUB SPACER-2.349

$

$

Not available

17620

17620

GUAGE WHEEL

$

$

Not available

17621

17621

SHOULDER BOLT

$

$

Not available

17676

17676

BOLT 3/8 X 6 GR5

$

$

Not available

17698

17698

DECK HUB-MACHINED

$

$

Not available

17847

17847

BLOW-BY BAFFLE

$

$

Not available

17874

17874

ROLLER BRKT.

$

$

Not available

18109

18109

HANGER ROD

$

$

Not available

18112

18112

ROLLER BRKT.

$

$

Not available

18125

18125

$

$

Not available

18176

18176

DECK PAN W/BAFFLE 50`

$

$

Not available

18282

18282

V-BELT DECK DRIVE

$

$

Not available

60012

60012

BUSHING

$

$

Not available

60309

60309

ROLLER 3-3/4 DIA. X 4-1

$

$

Not available
