Grizzly 4016 (575-4016100) - Cub Cadet Utility Vehicle Hydraulic Brake System Parts Diagram

Utility Vehicle

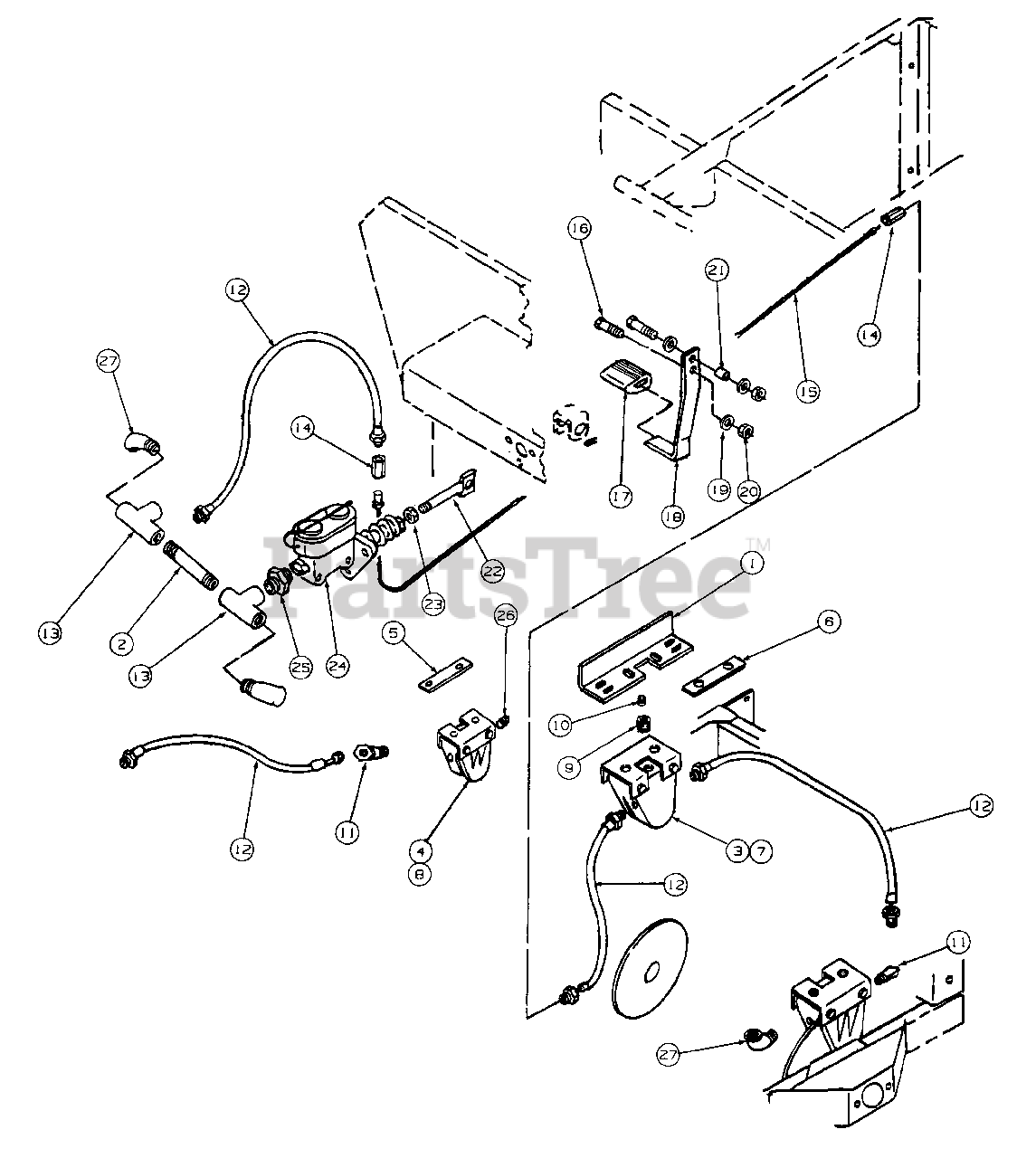

Hydraulic Brake System Parts Diagram

  • Title

1

Cub Cadet CV-244400

Bracket, Rear Brake Mtg

$

$

Currently unavailable

2

Cub Cadet CV-241203

Nipple, Pipe, 1/8 X 3.0

$

$

Not available

3

Cub Cadet CV-205032

Caliper, Rear Brake, H20

$

$

Currently unavailable

4

Cub Cadet CV-205033

Caliper, Front Brake, H10

$

$

Currently unavailable

5

Cub Cadet CV-244394

Nut, Front Strap

$

$

Not available

6

Cub Cadet CV-244398

Nut, Rear Strap

$

$

Not available

7

Cub Cadet CV-205034

Pad Kit, Rear Brake, H20

$

$

Currently unavailable

8

Cub Cadet CV-205035

Pad Kit, Front Brake, H10

$

$

Currently unavailable

9

Cub Cadet CV-106005

Adapter, Bleeder

$

$

Not available

10

Cub Cadet CV-106006

Fitting, Bleeder

$

$

Not available

11

Cub Cadet CV-106002

Fitting, Brass, 45 Degree

$

$

Not available

12

Cub Cadet CV-241073

Hose, Hydraulic Brake, 1/8 X 19-1/2

$

$

Not available

13

Cub Cadet CV-241108

Tee, Pipe, 1/8

$

$

Not available

14

Cub Cadet CV-241111

Coupler, Double Female, 3/16

$

$

Not available

15

Cub Cadet CV-241091

Brake Line, Steel, 3/16 X 51

$

$

Not available

16

Cub Cadet CV-202310

Screw, Hex Hd Mach, 3/8-16 X 1.75

$

$

Currently unavailable

17

Cub Cadet CV-208071

Pad, Brake Pedal

$

$

Not available

18

Cub Cadet CV-244362

Lever, Brake Pedal

$

$

Not available

19

Cub Cadet CV-214360

Washer, Flat,

$

$

Not available

20

Cub Cadet CV-212250

Nut, Center Lock, 3/8-16

$

$

Not available

21

Cub Cadet CV-108034

Spacer, 3/8 X 1/2

$

$

Not available

22

Cub Cadet CV-280119

Bolt, Spade

$

$

Not available

23

Cub Cadet CV-212394

Nut, Jam, .44-20

$

$

Currently unavailable

24

Cub Cadet CV-208069

Master Cylinder, Hydraulic

$

$

Currently unavailable

25

Cub Cadet CV-106008

Adaptor, 1/2-20 X 1/8 NPT

$

$

Not available

26

Cub Cadet CV-241113

Plug, Pipe, 1/8

$

$

Not available

27

Cub Cadet CV-241159

Elbow, Street, 45 Degree, 1/8

$

$

Not available
