Grizzly 4016 (575-4016100) - Cub Cadet Utility Vehicle Gas Tank Parts Diagram

Utility Vehicle

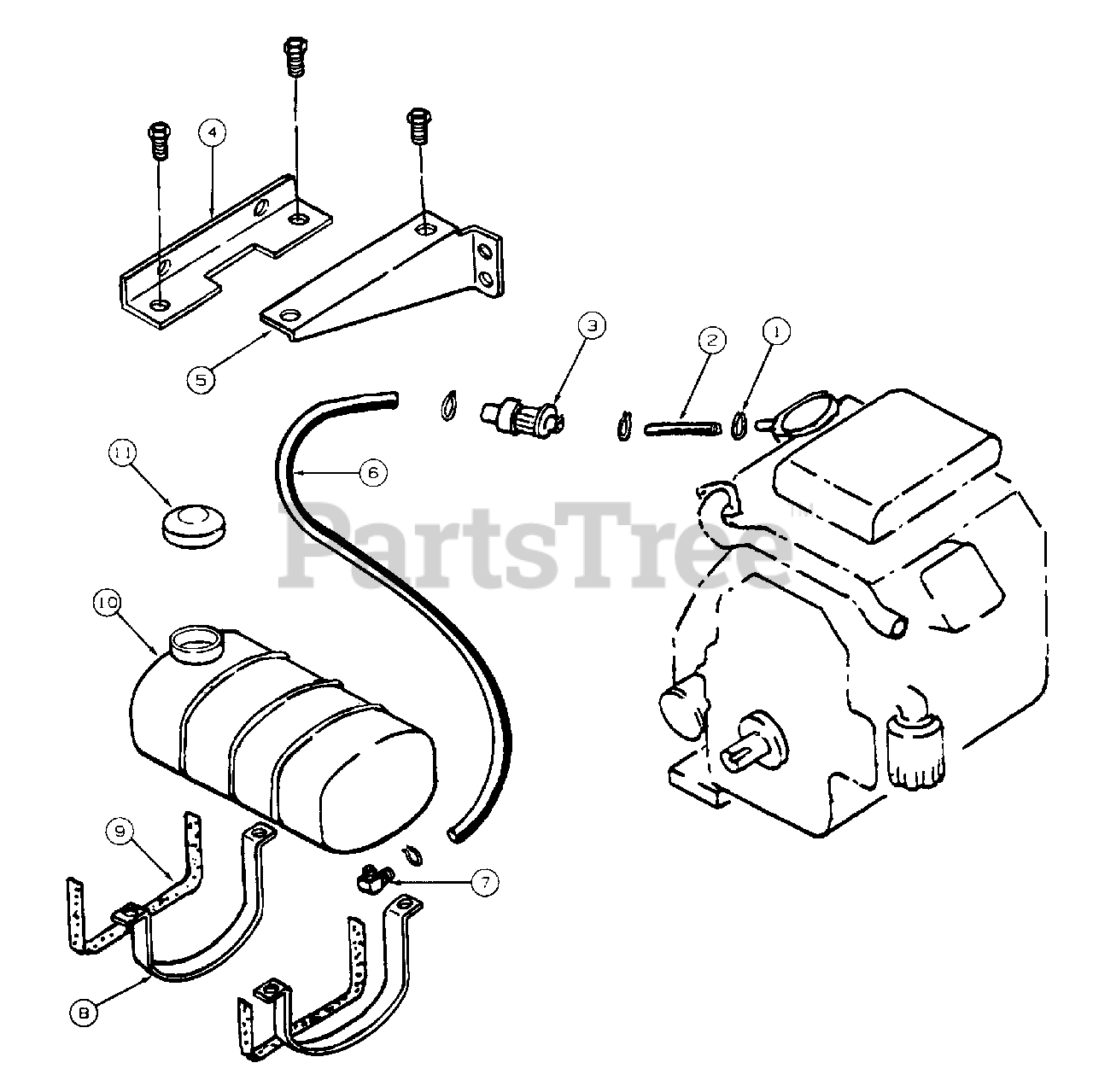

Gas Tank Parts Diagram

  • Title

1

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

2

Line, Fuel 6 in. Lg

Note: (Order bulk fuel line part no. 759-3330 10 ft Lg)

$

$

Not available

3

Cub Cadet BS-493629

Filter, Fuel
(Superseded to BS-84001895)

$7.99

$

In Stock, Qty 20+

0

4

Cub Cadet CV-244359

Bracket, Gas Tank Front Mtg.

$

$

Currently unavailable

5

Cub Cadet CV-244360

Bracket, Gas Tank Rear Mtg.

$

$

Currently unavailable

6

Line, Fuel 27 in. Lg

Note: (Order bulk fuel line part no. 759-3330 10 ft Lg)

$

$

Not available

7

Cub Cadet CV-302015

Fitting, 1/4 to 1/8 Pipe 90 Degree

$

$

Not available

8

Cub Cadet CV-244184

Strap, Tank Mtg

$

$

Not available

9

Cub Cadet CV-013004

Foam Rubber, 1/4 X 1/2

$

$

Not available

10

Cub Cadet CV-211032

Gas Tank (3.75 gal w/cap)

$

$

Not available

11

Cub Cadet CV-211033

Cap, Gas Tank

$

$

Not available

Cub Cadet 759-3330

10 ft Fuel Line

$63.99

$

In Stock, only 2 left!

0

$

$

Not available
