Grizzly 4016 (575-4016100) - Cub Cadet Utility Vehicle Fuel System Parts Diagram

Utility Vehicle

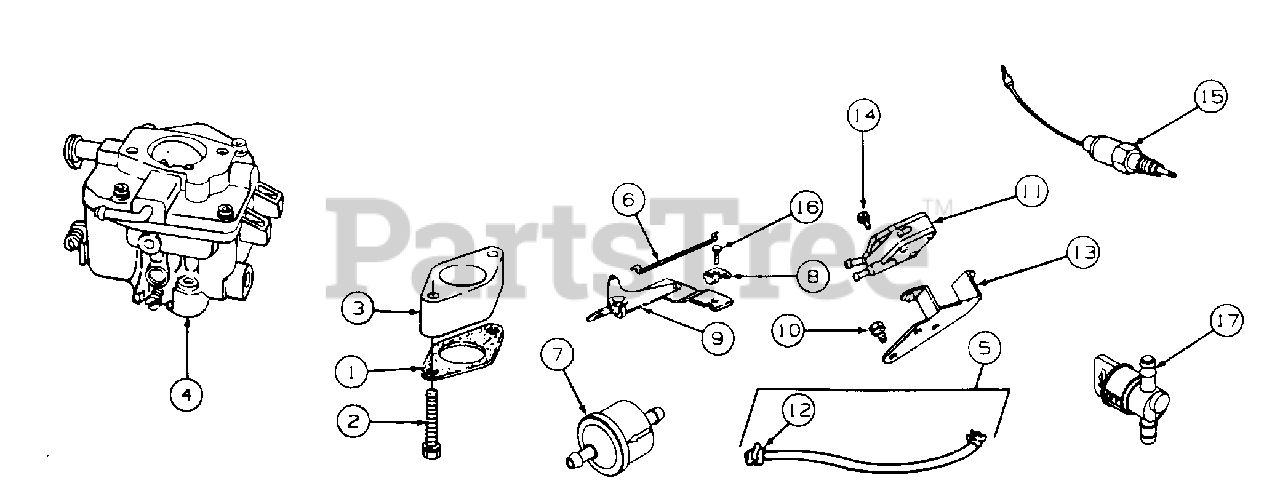

Fuel System Parts Diagram

  • Title

1

Cub Cadet BS-805700

Gasket, Carburetor Mtg
(Superseded to BS-691694)

$2.99

$

In Stock, Qty 20+

0

2

Cub Cadet BS-805466

Screw, Sems

$

$

Not available

3

Cub Cadet BS-805328

Spacer, Carburetor
(Superseded to BS-690691)

$13.99

$

In Stock, only 3 left!

0

4

Cub Cadet BS-808290

Carburetor Assy

Note: (See "Carburetor" illustration and parts list for breakdown)

$

$

Currently unavailable

5

Cub Cadet BS-393815

Line, Fuel

Note: (Cut to suit)

$11.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-805439

Link, Choke
(Superseded to BS-690705)

$6.49

$

In Stock, Qty 11

0

7

Cub Cadet BS-493629

Filter, Fuel
(Superseded to BS-84001895)

$7.99

$

In Stock, Qty 20+

0

8

Cub Cadet BS-221535

Clamp, Casing
(Superseded to BS-691024)

$3.99

$

In Stock, Qty 7

0

9

Cub Cadet BS-807609

Bracket, Choke

$

$

Not available

10

Cub Cadet BS-805025

Screw, Sems

$

$

Not available

11

Cub Cadet BS-491922

Pump, Fuel
(Superseded to BS-808656)

$27.99

$

In Stock, Qty 20+

0

12

Cub Cadet BS-93053

Clamp, Fuel Line
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

13

Cub Cadet BS-807685

Bracket, Fuel Pump
(Superseded to BS-691559)

$24.99

$

In Stock, only 1 left!

0

14

Cub Cadet BS-805317

Screw, Mtg
(Superseded to BS-807084)

$3.49

$

In Stock, only 3 left!

0

15

Cub Cadet BS-807664

Solenoid
(Superseded to BS-692094)

$166.99

$

In Stock, only 4 left!

0

16

Cub Cadet BS-805169

Screw, Hex Hd

$

$

Not available

17

Cub Cadet BS-494768

Valve, Shutoff
(Superseded to BS-698183)

$8.49

$

In Stock, Qty 20+

0
