Grizzly 4016 (575-4016100) - Cub Cadet Utility Vehicle Front Axle And Steering Parts Diagram

Utility Vehicle

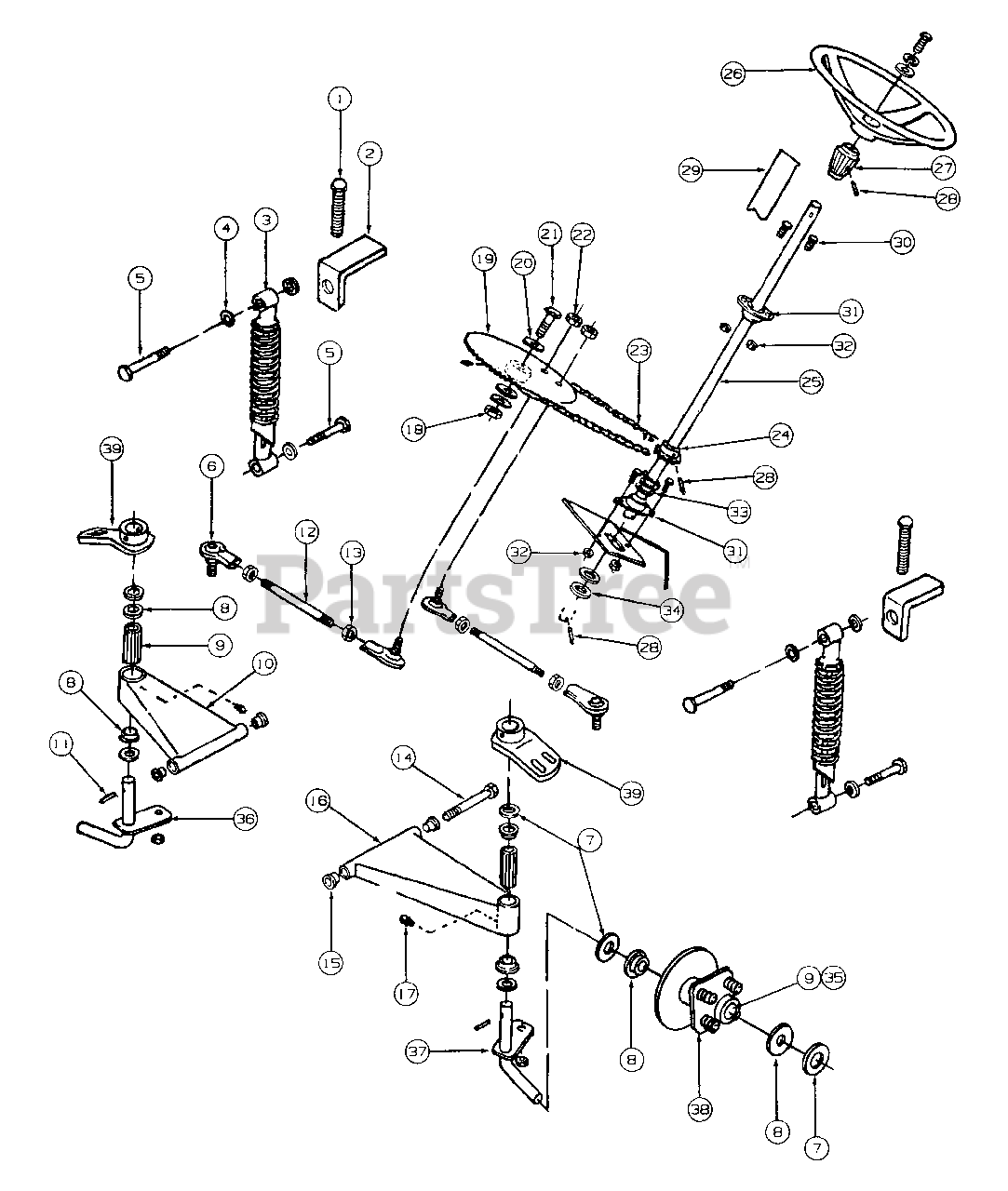

Front Axle And Steering Parts Diagram

  • Title

1

Cub Cadet CV-202249

Bolt, Hex Hd, .50-13 UNC X 4.0

$

$

Not available

2

Cub Cadet CV-280114

Bracket, Shock Adjuster

$

$

Not available

3

Cub Cadet CV-110037

Shock, Hydraulic, 12-1/2

$

$

Currently unavailable

4

Cub Cadet CV-214554

Washer, .38 X 1.25 X 1.2

$

$

Currently unavailable

5

Cub Cadet CV-202510

Screw, Hex Hd Mach, 3/8 X 16 X 2.0

$

$

Not available

6

Cub Cadet CV-208068

Joint, Ball, 1/2

$

$

Not available

7

Cub Cadet CV-214556

Washer, 1.00 X 1.50 X 10 Ga

$

$

Currently unavailable

8

Cub Cadet CV-204027

Bearing, Flange, 1

$

$

Currently unavailable

9

Cub Cadet CV-204026

Bearing, Roller, 1 X 3

$

$

Not available

10

Cub Cadet CV-280061

Arm Assy, Right A

$

$

Not available

11

Cub Cadet CV-216127

Roll Pin, HBK, .31 X 1.5

$

$

Not available

12

Cub Cadet CV-107122

Tie Rod, Straight

$

$

Not available

13

Cub Cadet CV-212388

Nut, Hex Jam, 1/2-20 UNF

$

$

Not available

14

Cub Cadet CV-202245

Screw, Hex Hd Cap, 5/8-18 X 8 GR5

$

$

Not available

15

Cub Cadet CV-204006

Bearing, Oilite Flange, .625

$

$

Not available

16

Cub Cadet CV-280062

Arm Assy, Left A

$

$

Not available

17

Cub Cadet CV-106022

Fitting, Grease, 45 Degree

$

$

Not available

18

Cub Cadet CV-212310

Nut, Hex Jam, 3/4 X 16

$

$

Currently unavailable

19

Cub Cadet CV-202026

Sprocket, B60 X 3/4

$

$

Not available

20

Cub Cadet CV-214555

Washer, Special Flat

$

$

Not available

21

Cub Cadet CV-202251

Screw, Hex Hd Cap, 3/4-16 X 3

$

$

Currently unavailable

22

Cub Cadet CV-212389

Nut, Torque Center Lock Hex Jam

$

$

Currently unavailable

23

Cub Cadet CV-203047

Chain, 40 X 80 Pitch

$

$

Not available

24

Cub Cadet CV-202025

Sprocket, 40B9

$

$

Not available

25

Cub Cadet CV-107085

Shaft, Steering

$

$

Not available

26

Cub Cadet CV-201046

Steering Wheel

$

$

Currently unavailable

Cub Cadet CV-201053

Cover, Steering Wheel

$

$

Not available

27

Cub Cadet CV-201048

Adaptor, Steering Wheel

$

$

Currently unavailable

28

Cub Cadet CV-216129

Pin, Spiral Roll, 1/4 X 1-1/2

$

$

Not available

29

Cub Cadet CV-013088

Pad, Steering Shaft

$

$

Not available

30

Cub Cadet CV-202242

Bolt, Hex Hd, .31-24 UNF X .75

$

$

Currently unavailable

31

Cub Cadet CV-204016

Bearing, Oilite Flange, 3/4

$

$

Not available

32

Cub Cadet CV-212387

Nut, Center Lock, .31-24 UNF

$

$

Currently unavailable

33

Cub Cadet CV-214561

Washer, Shim

$

$

Currently unavailable

34

Cub Cadet CV-214557

Washer, Flat

$

$

Currently unavailable

35

Cub Cadet CV-204044

Bearing, Roller, 1 X 1.5

$

$

Currently unavailable

36

Cub Cadet CV-280056

Spindle, RH

$

$

Currently unavailable

37

Cub Cadet CV-280057

Spindle, LH

$

$

Currently unavailable

38

Cub Cadet CV-280138

Hub w/Dish Assy, Front

$

$

Currently unavailable

Cub Cadet CV-212392

Nut, Lug

$

$

Not available

39

Cub Cadet CV-280136

Bracket, Brake Mtg

$

$

Not available

$

$

Not available
