Grizzly 4016 (575-4016100) - Cub Cadet Utility Vehicle Engine And Accessories Parts Diagram

Utility Vehicle

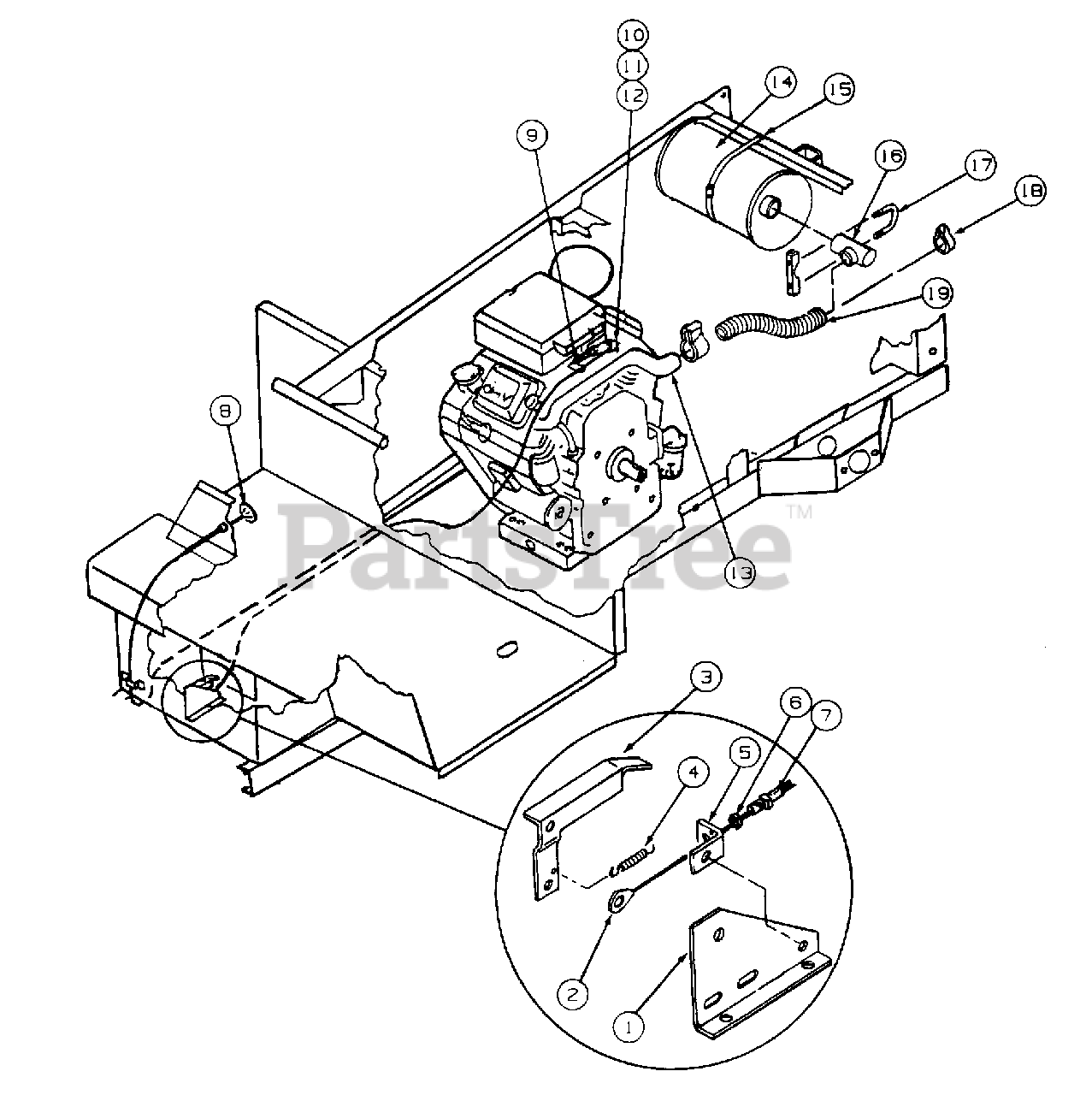

Engine And Accessories Parts Diagram

  • Title

1

Cub Cadet CV-244201

Bracket, Accelerator Mtg

$

$

Not available

2

Cub Cadet CV-208133

Cable, Inner, 64"

$

$

Currently unavailable

3

Cub Cadet CV-244356

Pedal, Accelerator

$

$

Currently unavailable

Cub Cadet CV-013084

Pad, Heel

$

$

Not available

4

Cub Cadet CV-110055

Spring, Accelerator Extension

$

$

Not available

5

Cub Cadet CV-244200

Bracket, Accelerator Angle

$

$

Not available

6

Cub Cadet CV-212390

Nut, Hex, .31-24 UNF

$

$

Not available

7

Cub Cadet CV-208134

Cable, Outer, 60"

$

$

Not available

8

Cub Cadet CV-208132

Cable, Choke

$

$

Currently unavailable

9

Cub Cadet CV-110056

Spring, Throttle

$

$

Not available

10

Cub Cadet CV-206101

Screw

$

$

Not available

11

Cub Cadet CV-112034

E-Ring

$

$

Currently unavailable

12

Cub Cadet CV-111012

Stop

$

$

Currently unavailable

13

Cub Cadet CV-200060

Manifold, Exhaust

$

$

Currently unavailable

Cub Cadet BS-805158

Screw, Hex Head
(Superseded to BS-691902)

$3.49

$

In Stock, only 4 left!

0

Cub Cadet BS-805024

Gasket, Exhaust
(Superseded to BS-691613)

$5.49

$

Usually ships in 2-12 days

0

14

Cub Cadet CV-211046

Muffler

$

$

Not available

15

Cub Cadet CV-112058

Clamp, Adjustable

$

$

Not available

16

Cub Cadet CV-280108

Adaptor, Exhaust, Single

$

$

Not available

17

Cub Cadet CV-112059

Clamp, Muffler, 1-1/2

$

$

Not available

18

Cub Cadet CV-112044

Clamp, Muffler, 1-3/16

$

$

Not available

19

Cub Cadet CV-241116

Tube, Stainless Flex, 13"

$

$

Not available

Cub Cadet BS-807989

Gasket Set
(Superseded to BS-847319)

$123.99

$

In Stock, only 2 left!

0

Cub Cadet BS-807990

Valve Overhaul Kit
(Superseded to BS-808392)

$83.99

$

Usually ships in 2-12 days

0
