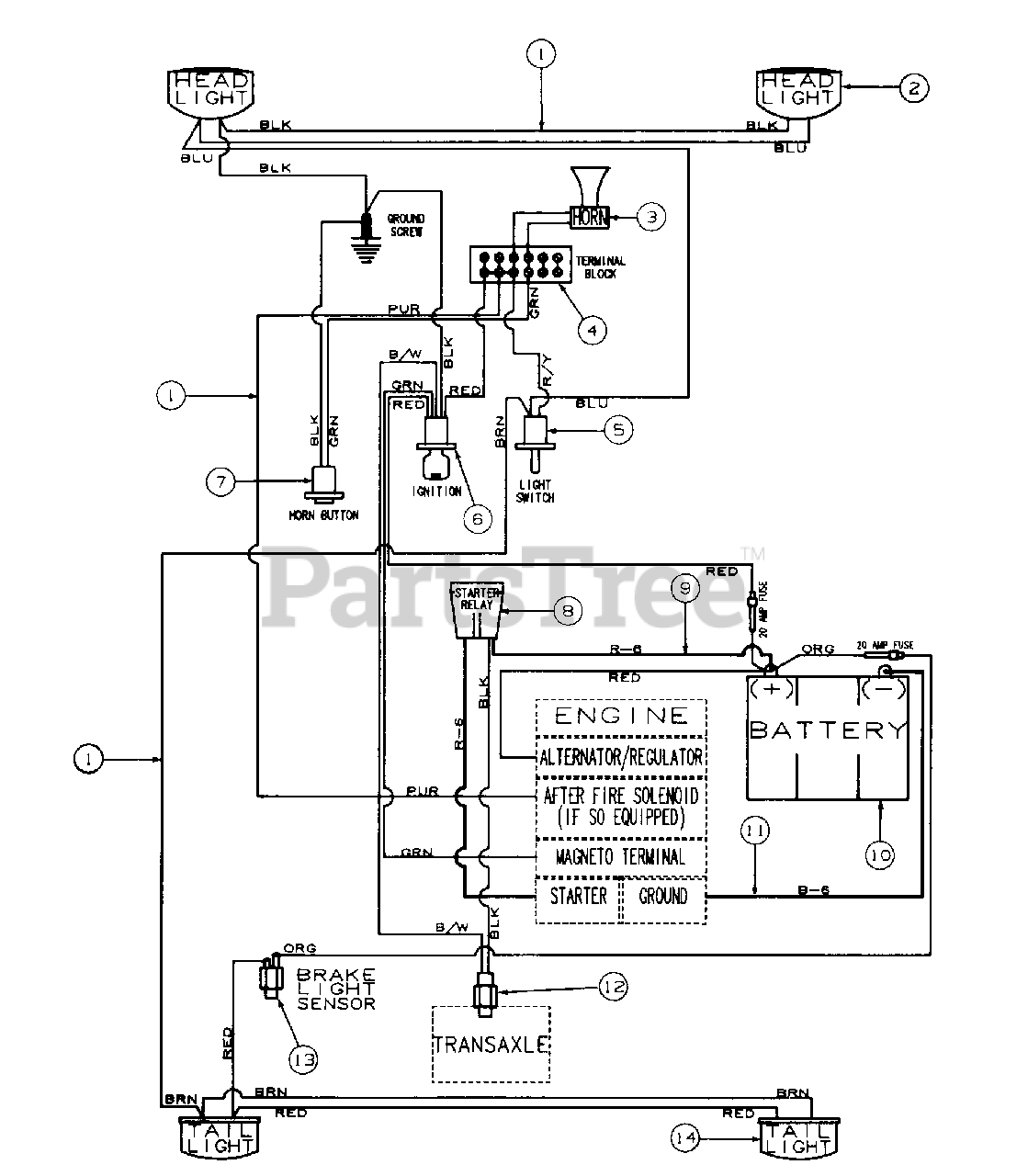

Grizzly 4016 (575-4016100) - Cub Cadet Utility Vehicle Electrical Parts Diagram

Utility Vehicle

Electrical Parts Diagram

  • Title

1

Cub Cadet CV-300069

Wiring Harness, Main

$

$

Not available

Cub Cadet CV-303001

Grommet, Rubber, .375

$

$

Not available

2

Cub Cadet CV-305045

Headlights w/Hardware

$

$

Not available

3

Cub Cadet CV-305032

Horn, Electric

$

$

Not available

4

Cub Cadet CV-271511

Terminal Block

$

$

Currently unavailable

Cub Cadet CV-271512

Jumper

$

$

Currently unavailable

5

Cub Cadet CV-301030

Switch, Push-Pull Light

$

$

Not available

6

Cub Cadet CV-301053

Switch, Ignition

$

$

Currently unavailable

7

Cub Cadet CV-301033

Button, Horn

$

$

Not available

Cub Cadet CV-300070

Wire Harness, Horn

$

$

Not available

8

Cub Cadet CV-301046

Relay, Starter

$

$

Not available

9

Cub Cadet CV-300043

Cable, Battery/Starter, Red

$

$

Not available

10

Cub Cadet 725-3061A

Battery
(Superseded to 925-1707D)

$

$

Not available

Cub Cadet CV-244193

Bracket, Battery Holddown

$

$

Not available

11

Cub Cadet CV-300016

Cable, Battery Ground, Black

$

$

Not available

12

Cub Cadet CV-301055

Switch, Neutral Safety

$

$

Not available

13

Cub Cadet CV-301011

Switch, Brake Light

$

$

Currently unavailable

14

Cub Cadet CV-305044

Taillight Assy

$

$

Currently unavailable
