Grizzly 4016 (575-4016100) - Cub Cadet Utility Vehicle Controls Diff Lock And Shaft Parts Diagram

Utility Vehicle

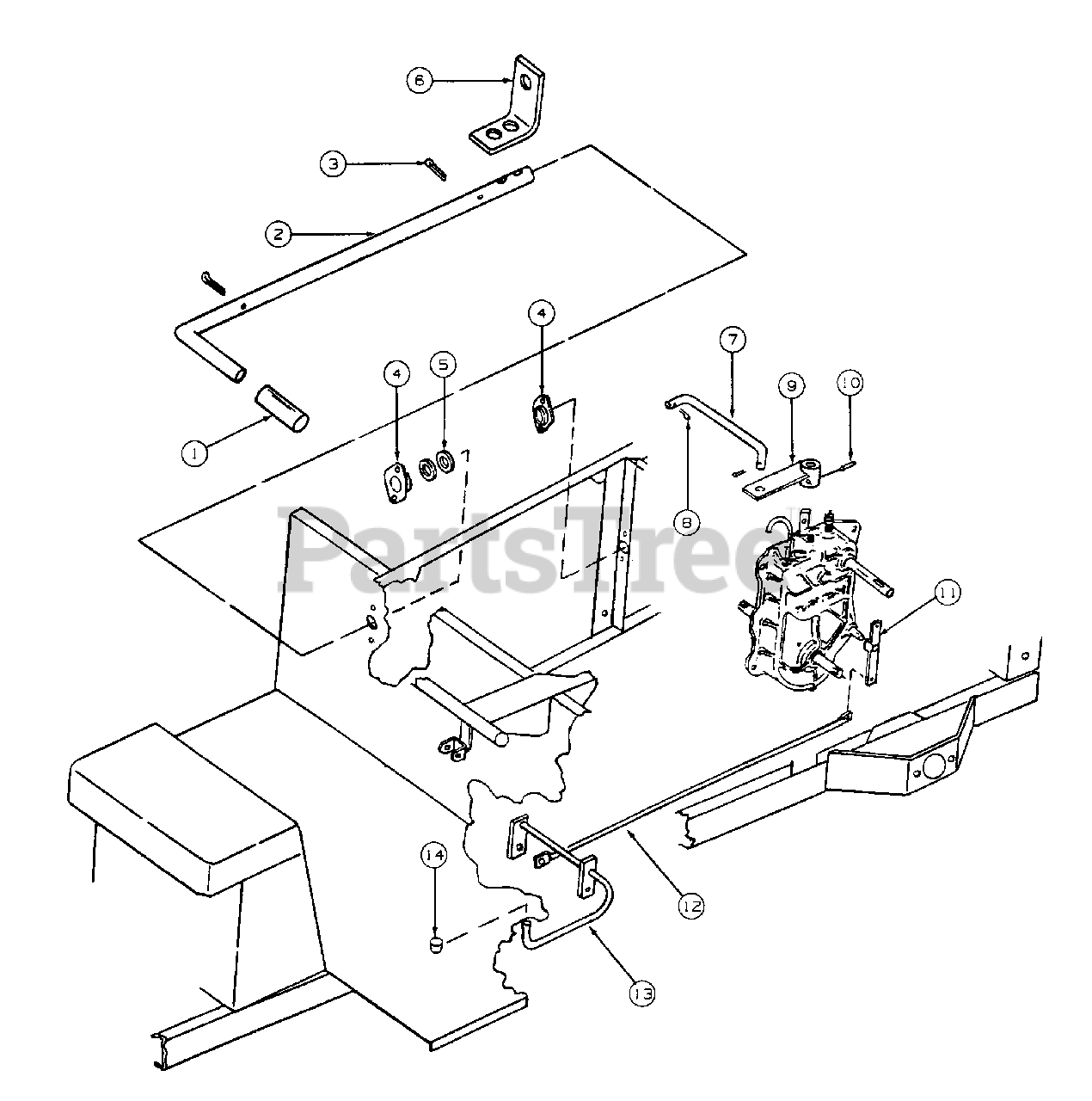

Controls Diff Lock And Shaft Parts Diagram

  • Title

1

Cub Cadet CV-208137

Grip (3/4" Bar)

$

$

Not available

2

Cub Cadet CV-241245

Tube, Shift

$

$

Not available

3

Cub Cadet CV-215110

Pin, Cotter, .19 X 1.5

$

$

Currently unavailable

4

Cub Cadet CV-204045

Bearing, Flange, .75 ID

$

$

Not available

5

Cub Cadet CV-214555

Washer

$

$

Not available

6

Cub Cadet CV-244364

Bracket, Shift

$

$

Currently unavailable

7

Cub Cadet CV-107151

Rod, Shift

$

$

Not available

8

Cub Cadet CV-215031

Pin, Cotter, .13 X .5

$

$

Currently unavailable

9

Cub Cadet CV-280115

Arm, Shift Actuator

$

$

Currently unavailable

10

Cub Cadet CV-216129

Pin, Roll, .25 X 1.5 HBK

$

$

Not available

11

Cub Cadet CV-280116

Arm, Diff Lock

$

$

Currently unavailable

12

Cub Cadet CV-107152

Rod, Diff Lock

$

$

Not available

13

Cub Cadet CV-280117

Pedal, Diff Lock Control

$

$

Not available

14

Cub Cadet CV-303017

Tip, Molded, .5"

$

$

Not available
