GR 50 - Jonsered String Trimmer (1998-06) STARTER Parts Diagram

String Trimmer

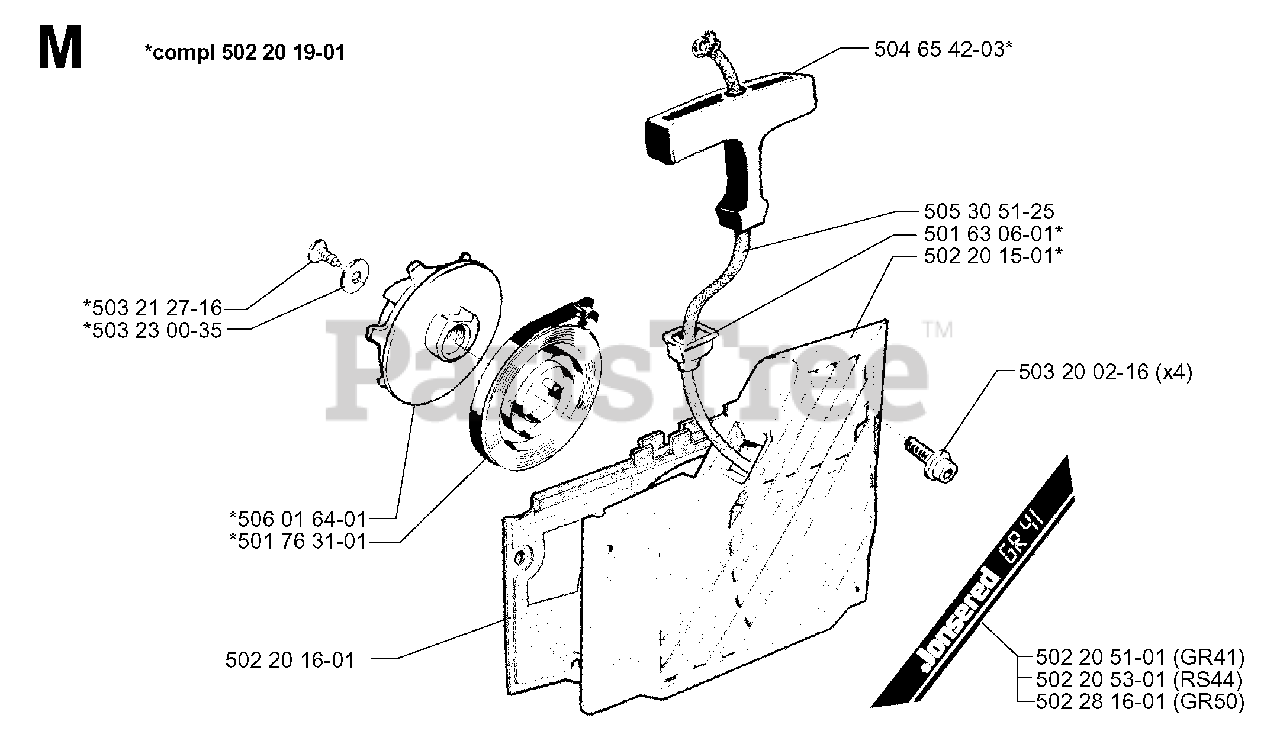

STARTER Parts Diagram

  • Title
5022019-01

Jonsered 502201901

STARTER DEVICE

$

$

Not available

5032127-16

$6.49

$

In Stock, Qty 20+

0

5032300-35

Jonsered 503230035

WASHER 5.3X15

$7.49

$

In Stock, Qty 14

0

5060164-01

Jonsered 506016401

STARTER PULLEY
(Superseded to 537201901)

$31.99

$

In Stock, only 3 left!

0

5017631-01

Jonsered 501763101

RECOIL SPRING

$17.99

$

In Stock, only 3 left!

0

5022016-01

Jonsered 502201601

AIR CONDUCTOR

$8.07

$

Usually ships in 3-10 days

0

5022816-01

Jonsered 502281601

DECAL
(Superseded to 537325503)

Note: GR50

$3.49

$

Usually ships in 3-10 days

0

5022053-01

Jonsered 502205301

DECAL

Note: RS44

$

$

Not available

5022051-01

Jonsered 502205101

DECAL

Note: GR41

$6.91

$

Usually ships in 3-10 days

0

5032002-16

$4.99

$

In Stock, Qty 20+

0

5022015-01

Jonsered 502201501

STARTER HOUSING

$

$

Not available

5016306-01

$10.99

$

In Stock, only 2 left!

0

5053051-25

Jonsered 505305125

STARTER ROPE

$9.49

$

In Stock, Qty 6

0

5046542-03

$10.99

$

In Stock, only 2 left!

0
