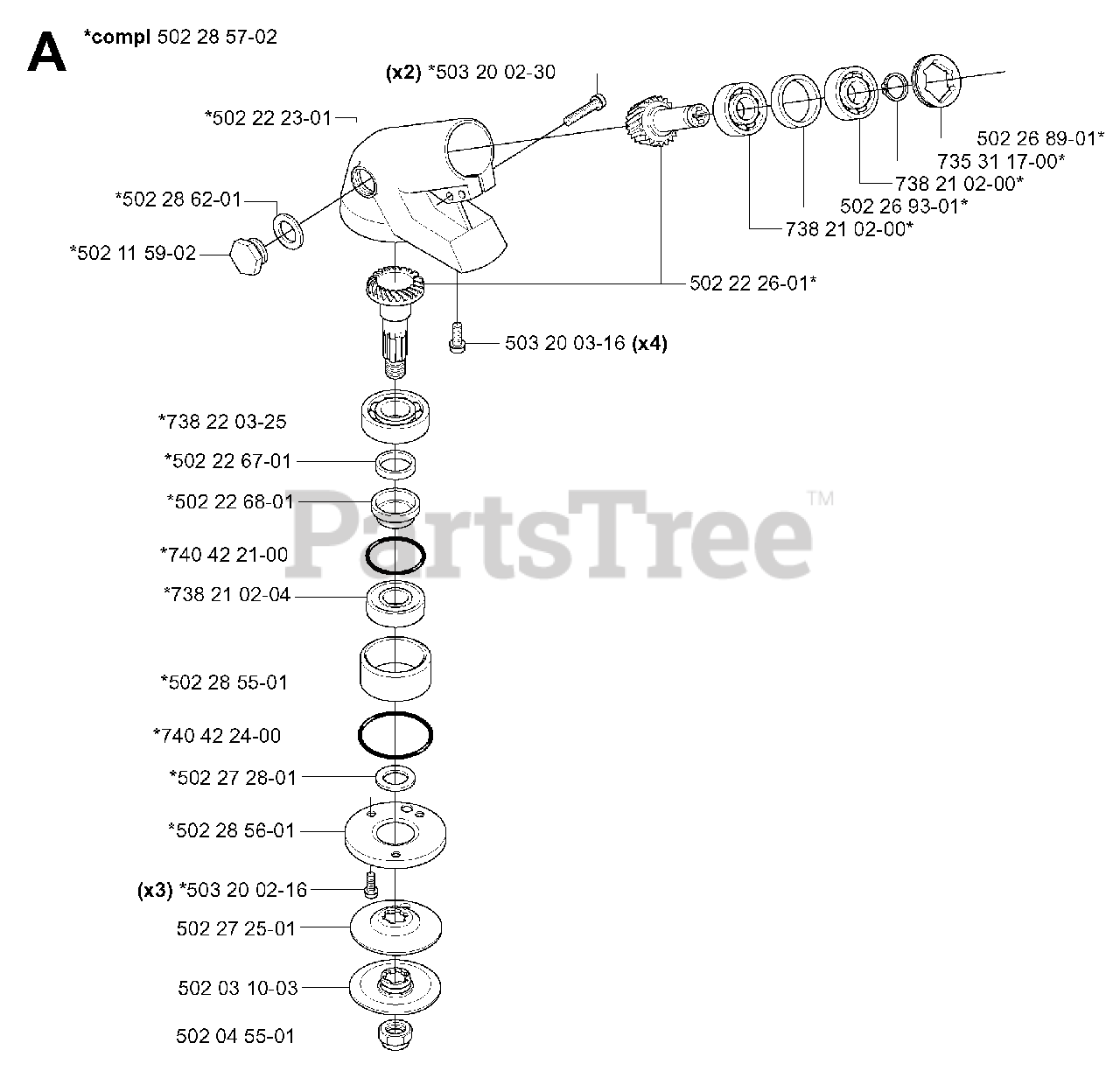

GR 41 - Jonsered String Trimmer (2006-01) BEVEL GEAR Parts Diagram

String Trimmer

BEVEL GEAR Parts Diagram

  • Title
5022857-02

Jonsered 502285702

BEVEL GEAR
(Superseded to 502285704)

$341.99

$

Usually ships in 3-10 days

0

5022223-01

Jonsered 502222301

GEAR HOUSING

$

$

Not available

5022862-01

Jonsered 502286201

OIL PLUG WASHER

$

$

Not available

5021159-02

$21.99

$

Usually ships in 3-10 days

0

7382203-25

Jonsered 738220325

BALL BEARING 6203 C3

$26.99

$

In Stock, Qty 7

0

5022267-01

$

$

Not available

5022268-01

Jonsered 502226801

PACKING COLLAR

$

$

Not available

7404221-00

$4.99

$

In Stock, only 3 left!

0

7382102-04

Jonsered 738210204

BALL BEARING 6002-2RS1

$13.99

$

Usually ships in 3-10 days

0

5022855-01

Jonsered 502285501

BEARING HOUSING

$

$

Not available

7404224-00

$3.49

$

In Stock, Qty 11

0

5022728-01

Jonsered 502272801

SEAL RING

$3.49

$

Usually ships in 3-10 days

0

5022856-01

Jonsered 502285601

GEAR HOUSING COVER

$

$

Not available

5032002-16

$4.99

$

In Stock, Qty 20+

0

5022725-01

$56.99

$

Usually ships in 3-10 days

0

5020310-03

$34.99

$

Usually ships in 3-10 days

0

5020455-01

Jonsered 502045501

LOCKNUT 12X1.75

$7.49

$

In Stock, only 3 left!

0

5032003-16

$6.49

$

In Stock, Qty 20+

0

5022226-01

Jonsered 502222601

GEAR WHEEL SET

$

$

Not available

7382102-00

Jonsered 738210200

BALL BEARING 6002
(Superseded to 738210210)

$

$

Not available

5022693-01

$

$

Not available

7382102-00

Jonsered 738210200

BALL BEARING 6002
(Superseded to 738210210)

$

$

Not available

7353117-00

Jonsered 735311700

RETAINING RING SGA 15

$3.49

$

In Stock, Qty 7

0

5022689-01

Jonsered 502268901

STOP RING

$

$

Not available

5032002-30

$6.49

$

In Stock, only 2 left!

0
