GR 36 - Jonsered String Trimmer (1996-06) BEVEL GEAR SHAFT Parts Diagram

String Trimmer

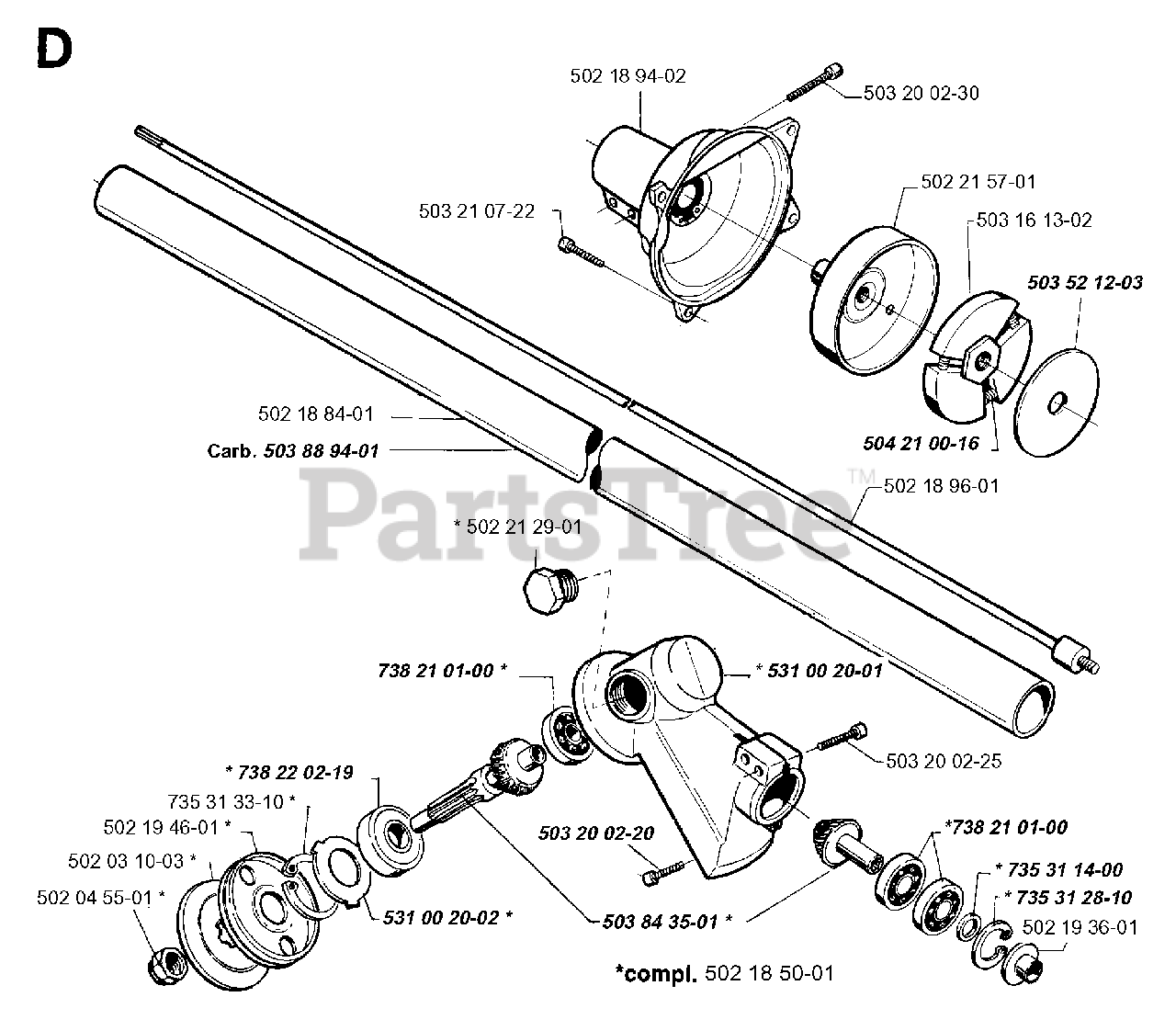

BEVEL GEAR SHAFT Parts Diagram

  • Title
5021894-02

Jonsered 502189402

%CLUTCH COVER
(Superseded to 544928001)

$100.61

$

Usually ships in 3-10 days

0

5032107-22

Jonsered 503210722

SCREW
(Superseded to 503216722)

$6.49

$

In Stock, Qty 9

0

5021884-01

Jonsered 502188401

TUBE
(Superseded to 503889401)

$78.99

$

Usually ships in 3-10 days

0

5038894-01

Jonsered 503889401

TUBE

Note: CARB

$78.99

$

Usually ships in 3-10 days

0

5020455-01

Jonsered 502045501

LOCKNUT 12X1.75

$7.49

$

In Stock, only 3 left!

0

5020310-03

$34.99

$

Usually ships in 3-10 days

0

5021946-01

Jonsered 502194601

DRIVER
(Superseded to 502208701)

$72.99

$

Usually ships in 3-10 days

0

7353133-10

Jonsered 735313310

RETAINING RING SGH 35

$3.49

$

Usually ships in 3-10 days

0

7382202-19

Jonsered 738220219

BALL BEARING 6202-2RS1

$35.99

$

Usually ships in 3-10 days

0

5022129-01

Jonsered 502212901

PLUG
(Superseded to 503696301)

$9.99

$

In Stock, only 1 left!

0

7382101-00

Jonsered 738210100

BALL BEARING 6001-C3
(Superseded to 738210110)

$24.99

$

Usually ships in 3-10 days

0

5310020-02

Jonsered 531002002

COVER PLATE
(Superseded to 503758901)

$2.23

$

In Stock, only 1 left!

0

5021850-01

Jonsered 502185001

BEVEL GEAR COMPLETE
(Superseded to 537034302)

$363.50

$

Usually ships in 3-10 days

0

5038435-01

Jonsered 503843501

GEAR WHEEL SET
(Superseded to 537034302)

$363.50

$

Usually ships in 3-10 days

0

5032002-20

Jonsered 503200220

No Description Available

$6.49

$

In Stock, Qty 18

0

5310020-01

Jonsered 531002001

GEAR HOUSING
(Superseded to 537034302)

$363.50

$

Usually ships in 3-10 days

0

5032002-25

$4.99

$

In Stock, only 2 left!

0

7382101-00

Jonsered 738210100

BALL BEARING 6001-C3
(Superseded to 738210110)

$24.99

$

Usually ships in 3-10 days

0

7353114-00

Jonsered 735311400

SEEGER CLIP

$6.49

$

Usually ships in 3-10 days

0

7353128-10

Jonsered 735312810

RETAINING RING SGH 28

$7.49

$

In Stock, only 2 left!

0

5021936-01

Jonsered 502193601

SEALING RING

$

$

Not available

5021896-01

Jonsered 502189601

SHAFT
(Superseded to 503775601)

$

$

Not available

5042100-16

$5.99

$

In Stock, only 3 left!

0

5035212-03

Jonsered 503521203

WASHER
(Superseded to 503521204)

$5.99

$

Usually ships in 3-10 days

0

5031613-02

Jonsered 503161302

CLUTCH ASS'Y

$66.99

$

In Stock, only 3 left!

0

5022157-01

Jonsered 502215701

CLUTCH DRUM

$48.99

$

In Stock, only 1 left!

0

5032002-30

$6.49

$

In Stock, only 1 left!

0
