GR 36 - Jonsered String Trimmer (1993-03) CARBURETOR DETAILS Parts Diagram

String Trimmer

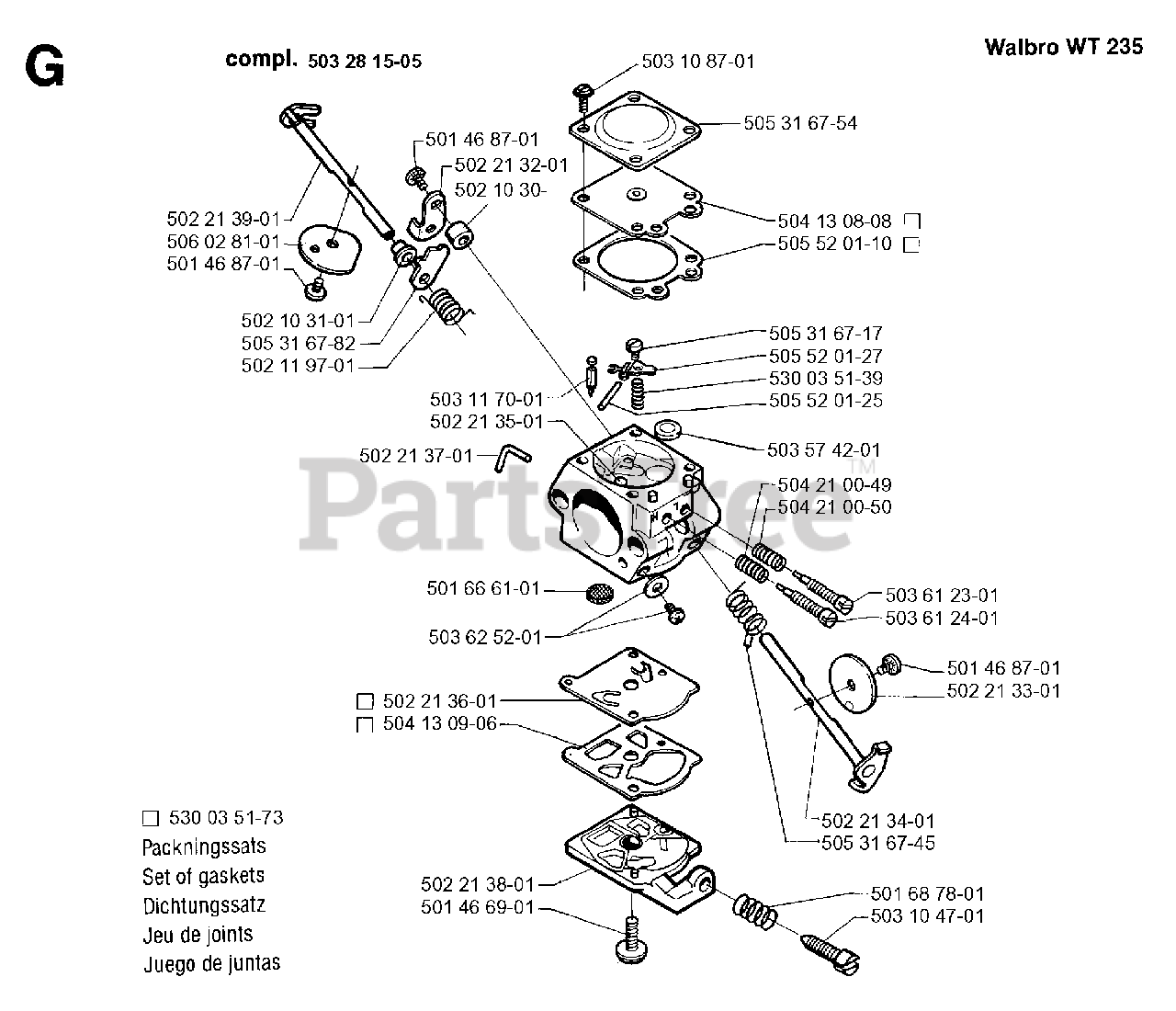

CARBURETOR DETAILS Parts Diagram

  • Title

5032815-05

Jonsered 503281505

CARBURETOR
(Superseded to 503281506)

$120.99

$

Usually ships in 3-10 days

0

5022139-01

Jonsered 502213901

CHOKE SHAFT

$

$

Not available

5060281-01

Jonsered 506028101

FLAP

$

$

Not available

5014687-01

Jonsered 501468701

SCREW.

$7.99

$

Usually ships in 3-10 days

0

5021031-01

Jonsered 502103101

No Description Available

$11.99

$

Usually ships in 3-10 days

0

5053167-82

Jonsered 505316782

STARTER LEVER

$2.49

$

Usually ships in 3-10 days

0

5021197-01

Jonsered 502119701

SPRING

$1.49

$

Usually ships in 3-10 days

0

5014669-01

Jonsered 501466901

SCREW

$9.49

$

In Stock, Qty 5

0

5022138-01

Jonsered 502213801

COVER, FUEL

$

$

Not available

5041309-06

Jonsered 504130906

GASKET

Note: 530 03 51-73 SET OF GASKETS

$11.99

$

In Stock, only 3 left!

0

5022136-01

Jonsered 502213601

DIAPHRAGM, FUEL PUMP
(Superseded to 504130807)

Note: 530 03 51-73 SET OF GASKETS

$31.99

$

In Stock, Qty 6

0

5036252-01

Jonsered 503625201

SCREW

$

$

Not available

5016661-01

Jonsered 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 5

0

5022137-01

Jonsered 502213701

NIPPLE

$7.49

$

Usually ships in 3-10 days

0

5022135-01

Jonsered 502213501

PLUG

$

$

Not available

5031170-01

Jonsered 503117001

VALVE/INLET.

$22.99

$

In Stock, Qty 8

0

5021030-

Jonsered 5021030

No Description Available

$

$

Not available

5022132-01

Jonsered 502213201

LEVER, THROTTLE

$

$

Not available

5014687-01

Jonsered 501468701

SCREW.

$7.99

$

Usually ships in 3-10 days

0

5031087-01

Jonsered 503108701

SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, Qty 5

0

5031047-01

Jonsered 503104701

SCREW

$11.99

$

In Stock, only 1 left!

0

5016878-01

Jonsered 501687801

REPL BY 501 66 78-01
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

5053167-45

Jonsered 505316745

SPRING

$3.49

$

Usually ships in 3-10 days

0

5022134-01

Jonsered 502213401

SHAFT ASSY, THROTTLE

$

$

Not available

5022133-01

Jonsered 502213301

THROTTLE FLAP

$

$

Not available

5014687-01

Jonsered 501468701

SCREW.

$7.99

$

Usually ships in 3-10 days

0

5036124-01

Jonsered 503612401

HI SPEED NEEDLE

$

$

Not available

5036123-01

Jonsered 503612301

LO-SPEED NEEDLE

$

$

Not available

5042100-50

Jonsered 504210050

SPRING/COMPRESSION
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

5042100-49

Jonsered 504210049

SPRING, H-NEEDLE

$13.99

$

In Stock, only 4 left!

0

5035742-01

Jonsered 503574201

WELCH PLUG

$7.99

$

In Stock, only 4 left!

0

5055201-25

Jonsered 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

5300351-39

Jonsered 530035139

No Description Available
(Superseded to 530035188)

$4.99

$

In Stock, Qty 10

0

5055201-27

Jonsered 505520127

LEVER

$5.99

$

Usually ships in 3-10 days

0

5053167-17

Jonsered 505316717

SCREW

$7.99

$

In Stock, Qty 6

0

5055201-10

Jonsered 505520110

GASKET, METERING SIDE

Note: 530 03 51-73 SET OF GASKETS

$

$

Not available

5041308-08

Jonsered 504130808

METERING DIAPHRAGM
(Superseded to 503896701)

Note: 530 03 51-73 SET OF GASKETS

$51.99

$

In Stock, Qty 10

0

5053167-54

Jonsered 505316754

DIAPHRAGM COVER

$4.99

$

Usually ships in 3-10 days

0
