GR 2036 - Jonsered String Trimmer (2002-08) CARBURETOR DETAILS Parts Diagram

String Trimmer

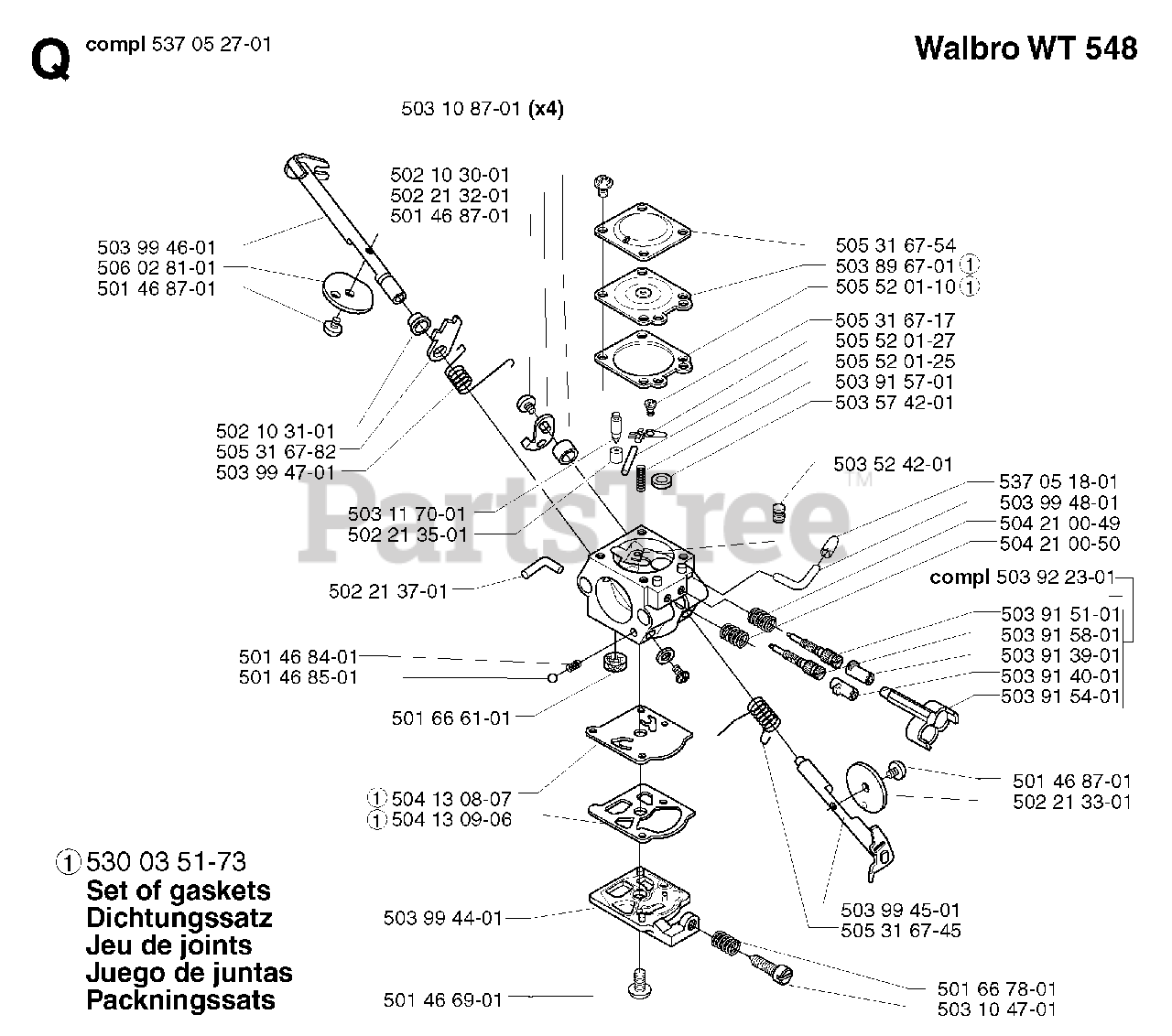

CARBURETOR DETAILS Parts Diagram

  • Title
5370527-01

Jonsered 537052701

%CARBURETOR WT548 WALBRO
(Superseded to 522607401)

$120.99

$

Usually ships in 3-10 days

0

5039946-01

Jonsered 503994601

CHOKE SHAFT

$

$

Not available

5060281-01

$

$

Not available

5014687-01

$7.99

$

In Stock, only 1 left!

0

5021031-01

Jonsered 502103101

No Description Available

$11.99

$

Usually ships in 3-10 days

0

5053167-82

Jonsered 505316782

STARTER LEVER

$2.49

$

Usually ships in 3-10 days

0

5039947-01

$

$

Not available

5014684-01

$7.99

$

In Stock, only 1 left!

0

5014685-01

Jonsered 501468501

No Description Available
(Superseded to 530035107)

$

$

Not available

5014669-01

$9.49

$

In Stock, Qty 5

0

5039944-01

$

$

Not available

5041309-06

Jonsered 504130906

GASKET

Note: 530 03 51-73 SET OF GASKETS

$11.99

$

In Stock, only 3 left!

0

5041308-07

Jonsered 504130807

PUMP DIAPHRAGM

Note: 530 03 51-73 SET OF GASKETS

$31.99

$

In Stock, Qty 6

0

5016661-01

Jonsered 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 5

0

5022137-01

$7.49

$

Usually ships in 3-10 days

0

5022135-01

$

$

Not available

5031170-01

Jonsered 503117001

VALVE/INLET.

$22.99

$

In Stock, Qty 8

0

5014687-01

$7.99

$

In Stock, only 1 left!

0

5022132-01

Jonsered 502213201

LEVER, THROTTLE

$

$

Not available

5021030-01

$13.99

$

Usually ships in 3-10 days

0

5031087-01

Jonsered 503108701

SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

5031047-01

$11.99

$

In Stock, only 1 left!

0

5016678-01

$

$

Not available

5053167-45

$3.49

$

Usually ships in 3-10 days

0

5039945-01

$

$

Not available

5022133-01

Jonsered 502213301

THROTTLE FLAP

$

$

Not available

5014687-01

$7.99

$

In Stock, only 1 left!

0

5039154-01

$9.49

$

Usually ships in 3-10 days

0

5039140-01

Jonsered 503914001

LIMITER CAP

$5.99

$

In Stock, only 1 left!

0

5039139-01

Jonsered 503913901

LIMITER CAP

$

$

Not available

5039158-01

$4.99

$

Usually ships in 3-10 days

0

5039151-01

Jonsered 503915101

ADJUSTING SCREW

$9.49

$

In Stock, only 1 left!

0

5039223-01

Jonsered 503922301

LIMITER CAP & SCREW SET

$51.99

$

Usually ships in 3-10 days

0

5042100-50

Jonsered 504210050

SPRING/COMPRESSION
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

5042100-49

Jonsered 504210049

SPRING, H-NEEDLE

$13.99

$

In Stock, only 4 left!

0

5039948-01

$

$

Not available

5370518-01

$2.49

$

Usually ships in 3-10 days

0

5035242-01

$

$

Not available

5035742-01

Jonsered 503574201

WELCH PLUG

$7.99

$

In Stock, only 4 left!

0

5039157-01

$

$

Not available

5055201-25

Jonsered 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

5055201-27

$5.99

$

Usually ships in 3-10 days

0

5053167-17

$7.99

$

In Stock, Qty 6

0

5055201-10

Jonsered 505520110

GASKET, METERING SIDE

Note: 530 03 51-73 SET OF GASKETS

$

$

Not available

5038967-01

Jonsered 503896701

DIAPHRAGM

Note: 530 03 51-73 SET OF GASKETS

$51.99

$

In Stock, Qty 10

0

5053167-54

Jonsered 505316754

DIAPHRAGM COVER

$4.99

$

Usually ships in 3-10 days

0
