GR 2032 - Jonsered String Trimmer (2002-08) BEVEL GEAR Parts Diagram

String Trimmer

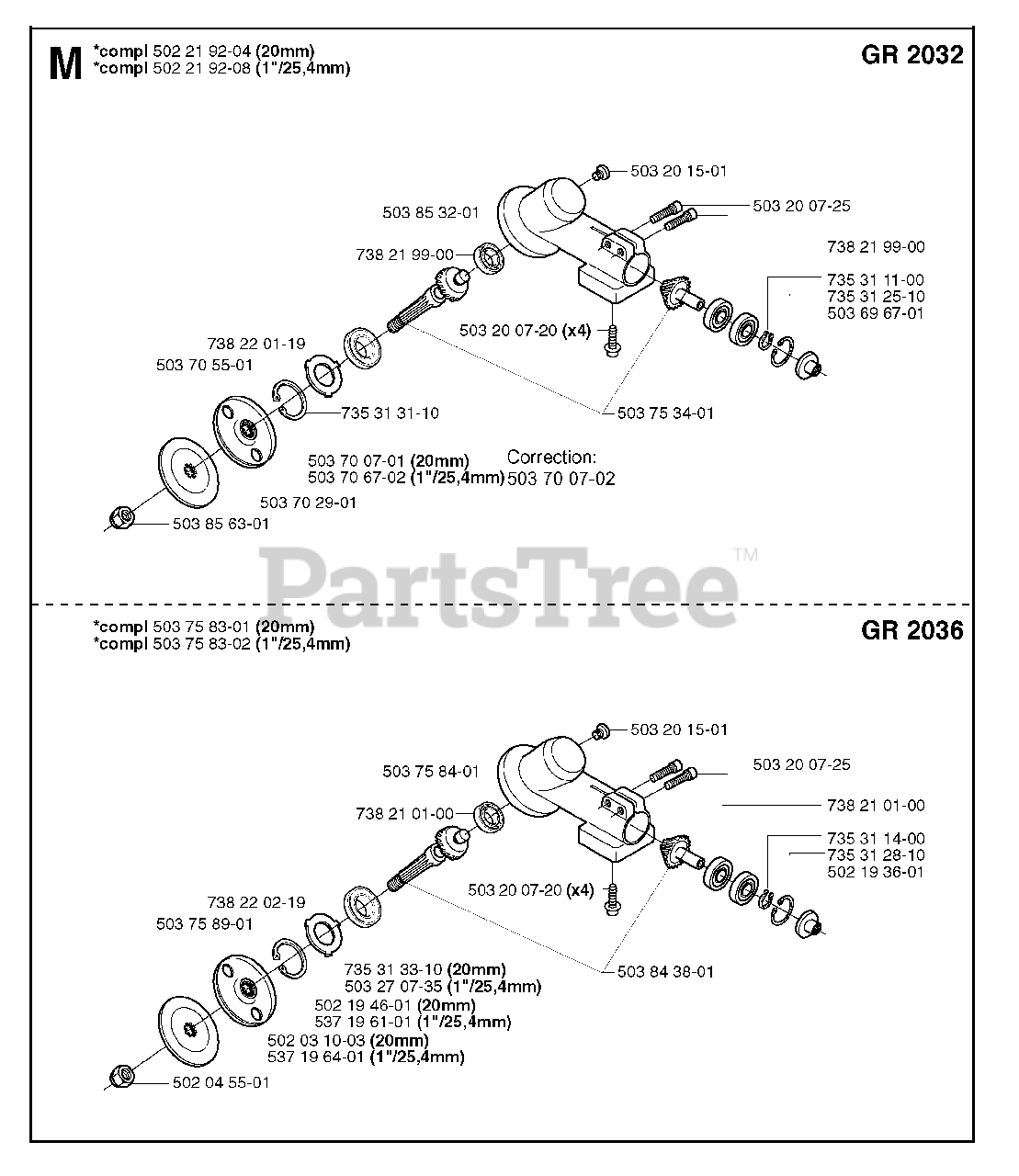

BEVEL GEAR Parts Diagram

  • Title
5037583-01

Jonsered 503758301

GEAR COMPLETE
(Superseded to 503758302)

Note: 20MM

$284.99

$

Usually ships in 3-10 days

0

5037583-02

Jonsered 503758302

BEVEL GEAR

Note: 1 /25 4MM

$284.99

$

Usually ships in 3-10 days

0

7382202-19

Jonsered 738220219

BALL BEARING 6202-2RS1

$35.99

$

Usually ships in 3-10 days

0

5037589-01

$2.23

$

In Stock, only 1 left!

0

5020455-01

Jonsered 502045501

LOCKNUT 12X1.75

$7.49

$

In Stock, only 3 left!

0

5371964-01

Jonsered 537196401

FLANGE

Note: 1 /25 4MM

$

$

Not available

5020310-03

Jonsered 502031003

FLANGE

Note: 20MM

$34.99

$

Usually ships in 3-10 days

0

5371961-01

Jonsered 537196101

CARRIER

Note: 1 /25 4MM

$

$

Not available

5021946-01

Jonsered 502194601

DRIVER
(Superseded to 502208701)

Note: 20MM

$72.99

$

Usually ships in 3-10 days

0

5032707-35

Jonsered 503270735

RETAINING RING

Note: 1 /25 4MM

$

$

Not available

7353133-10

Jonsered 735313310

RETAINING RING SGH 35

Note: 20MM

$3.49

$

Usually ships in 3-10 days

0

7382101-00

Jonsered 738210100

BALL BEARING 6001-C3
(Superseded to 738210110)

$24.99

$

Usually ships in 3-10 days

0

5037584-01

Jonsered 503758401

GEAR CASE

$66.92

$

Usually ships in 3-10 days

0

5032007-20

Jonsered 503200720

SCREW
(Superseded to 503200220)

$6.49

$

In Stock, Qty 18

0

5038438-01

Jonsered 503843801

GEAR-WHEEL SPARE PT KIT NLA

$

$

Not available

5021936-01

Jonsered 502193601

SEALING RING

$

$

Not available

7353128-10

Jonsered 735312810

RETAINING RING SGH 28

$7.49

$

In Stock, only 2 left!

0

7353114-00

Jonsered 735311400

SEEGER CLIP

$6.49

$

Usually ships in 3-10 days

0

7382101-00

Jonsered 738210100

BALL BEARING 6001-C3
(Superseded to 738210110)

$24.99

$

Usually ships in 3-10 days

0

5032007-25

$4.99

$

In Stock, Qty 11

0

5032015-01

$9.99

$

In Stock, only 1 left!

0
