GR 2032 - Jonsered String Trimmer (2000-10) CYLINDER PISTON Parts Diagram

String Trimmer

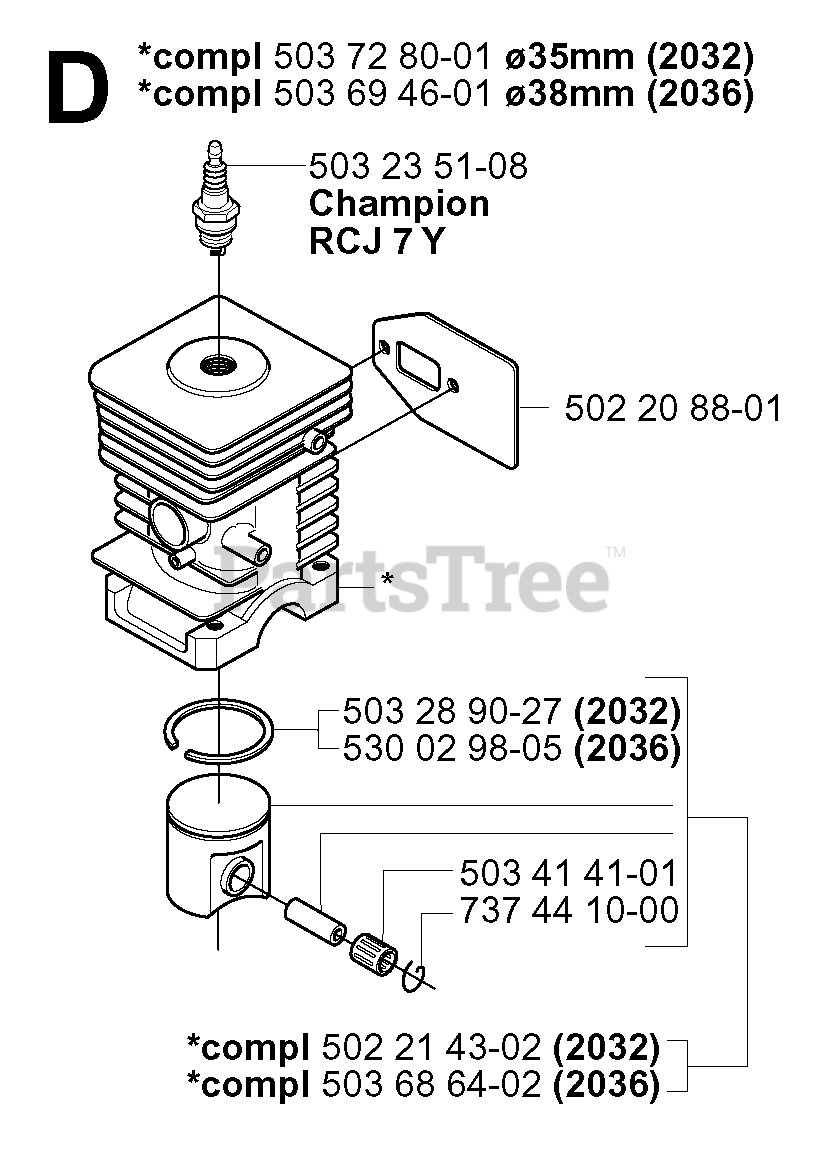

CYLINDER PISTON Parts Diagram

  • Title

5037280-01

Jonsered 503728001

CYLINDER CPL

Note: DIA 35MM (2032)

$

$

Not available

5036946-01

Jonsered 503694601

CYLINDER W/PISTON

Note: DIA 38MM (2036)

$250.99

$

Usually ships in 3-10 days

0

5032351-08

Jonsered 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

Note: CHAMPION RCJ 7 Y

$3.49

$

In Stock, Qty 20+

0

5036864-02

Jonsered 503686402

PISTON COMPLETE

Note: 2036

$109.99

$

Usually ships in 3-10 days

0

5022143-02

Jonsered 502214302

PISTON

Note: 2032

$113.99

$

Usually ships in 3-10 days

0

7374410-00

Jonsered 737441000

LOCKING RING

$6.49

$

Usually ships in 3-10 days

0

5034141-01

Jonsered 503414101

SUPPORT BUSHING

$24.99

$

Usually ships in 3-10 days

0

5300298-05

Jonsered 530029805

PISTON RING 36

Note: 2036

$6.49

$

In Stock, Qty 17

0

5032890-27

Jonsered 503289027

PISTON RING

Note: 2032

$27.99

$

Usually ships in 3-10 days

0

5022088-01

Jonsered 502208801

GASKET MUFFLER

$7.99

$

Usually ships in 3-10 days

0
