GR 2026 - Jonsered String Trimmer (2002-08) STARTER Parts Diagram

String Trimmer

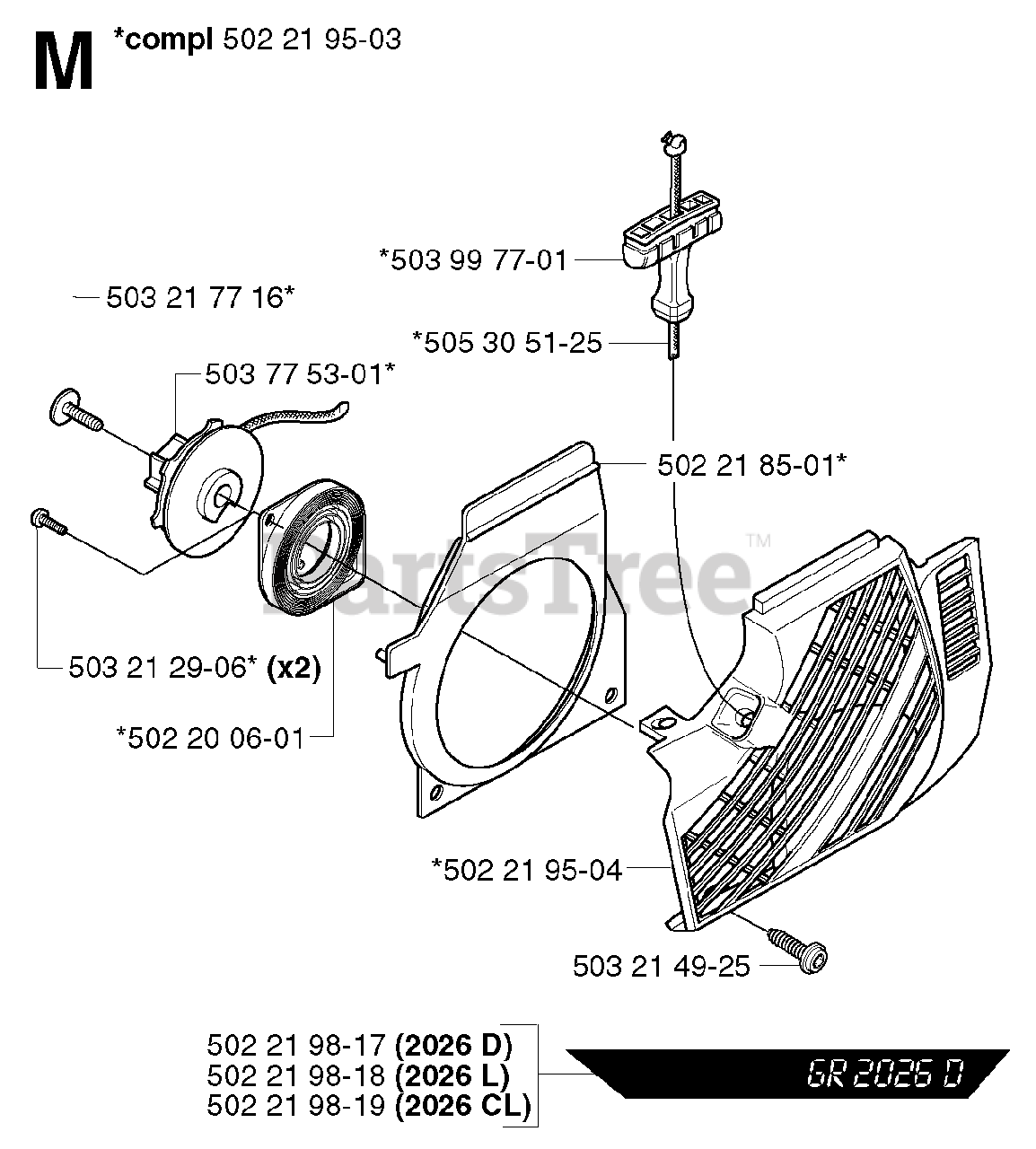

STARTER Parts Diagram

  • Title

5022195-03

Jonsered 502219503

STARTER DEVICE

$

$

Not available

503217716

Jonsered 503217716

SCREW

$6.49

$

In Stock, Qty 8

0

5037753-01

Jonsered 503775301

STARTER PULLEY

$24.99

$

In Stock, only 2 left!

0

5032129-06

Jonsered 503212906

SCREW

$4.99

$

In Stock, only 4 left!

0

5022006-01

Jonsered 502200601

RECOIL SPRING

$24.99

$

Usually ships in 3-10 days

0

5022198-17

Jonsered 502219817

DECAL

Note: 2026 D GR 2026 0

$

$

Not available

5022198-18

Jonsered 502219818

DECAL

Note: 2026 L GR 2026 0

$

$

Not available

5022198-19

Jonsered 502219819

DECAL

Note: 2026 CL GR 2026 0

$

$

Not available

5032149-25

Jonsered 503214925

SCREW

$4.99

$

In Stock, Qty 8

0

5022195-04

Jonsered 502219504

STARTER DEVICE

$34.61

$

Usually ships in 3-10 days

0

5022185-01

Jonsered 502218501

AIR CONDUCTOR

$14.99

$

Usually ships in 3-10 days

0

5053051-25

Jonsered 505305125

STARTER ROPE

$9.49

$

Usually ships in 3-10 days

0

5039977-01

Jonsered 503997701

HANDLE

$5.99

$

Usually ships in 3-10 days

0
