GR 2026 - Jonsered String Trimmer (2002-08) CYLINDER PISTON Parts Diagram

String Trimmer

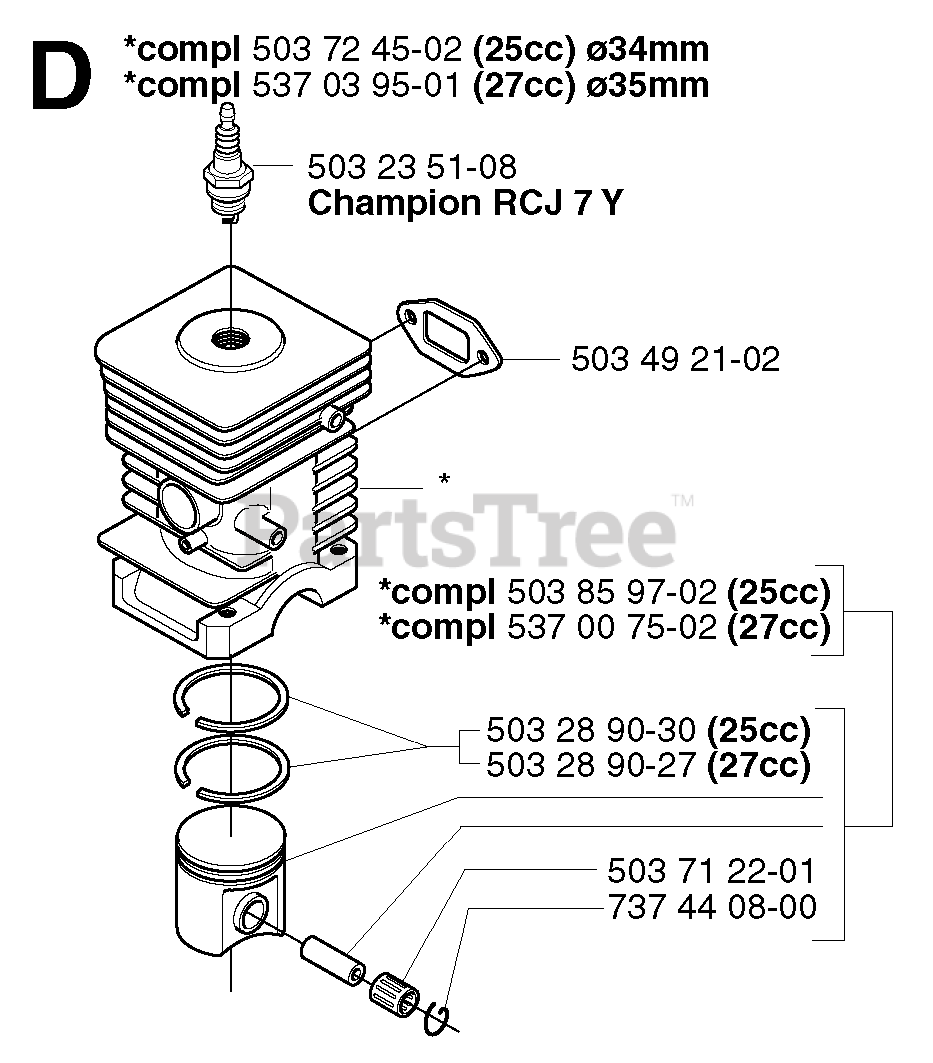

CYLINDER PISTON Parts Diagram

  • Title
5037245-02

Jonsered 503724502

CYLINDER
(Superseded to 503899401)

Note: 25CC DIA 34MM

$

$

Not available

5370395-01

Jonsered 537039501

CYLINDER COMP

Note: 27CC DIA 35MM

$

$

Not available

5032351-08

Jonsered 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

Note: CHAMPION RCJ 7 Y

$3.49

$

In Stock, Qty 20+

0

7374408-00

Jonsered 737440800

CLIP RING

$3.49

$

Usually ships in 3-10 days

0

5037122-01

$13.99

$

Usually ships in 3-10 days

0

5032890-27

Jonsered 503289027

PISTON RING

Note: 27CC

$27.99

$

Usually ships in 3-10 days

0

5032890-30

Jonsered 503289030

PISTON RING
(Superseded to 503289041)

Note: 25CC

$17.99

$

In Stock, only 3 left!

0

5370075-02

Jonsered 537007502

PISTON ASSY

Note: 27CC

$

$

Not available

5038597-02

Jonsered 503859702

PISTON ASSY

Note: 25CC

$

$

Not available

5034921-02

$

$

Not available
