GP7500 (0059781) - Generac Portable Generator (SN: 6540842A - 7050161A) (2012) Cylinder Head Parts Diagram

Portable Generator

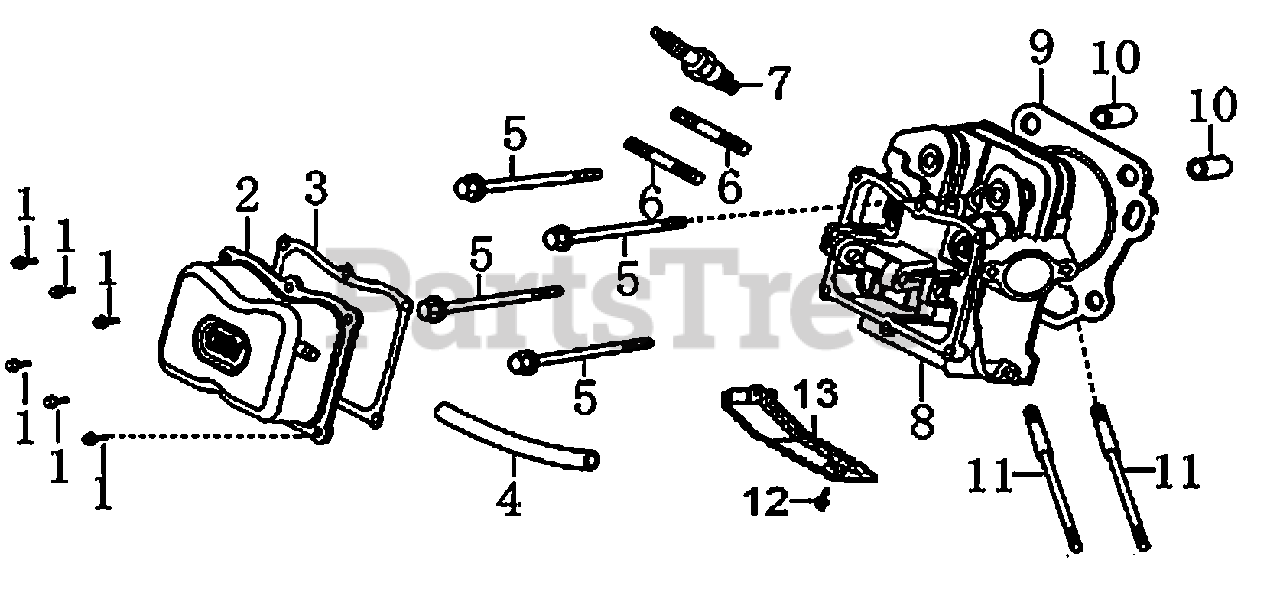

Cylinder Head Parts Diagram

  • Title

1

Generac 0J39340111

BOLT, FLANGE

$1.49

$

Usually ships in 2-12 days

0

2

Generac 0J39340112

COVER COMP. HEAD

$34.99

$

Usually ships in 2-12 days

0

3

Generac 0J39340113

GASKET, HEAD COVER

$7.49

$

In Stock, only 3 left!

0

4

Generac 0J39340114

TUBE, BREATHER

$8.99

$

In Stock, only 1 left!

0

5

Generac 0G84420211

BOLT, FLANGE, 10×80

$5.99

$

In Stock, only 4 left!

0

6

Generac 0G84420210

BOLT, STUD, EXHAUST

$2.99

$

In Stock, only 2 left!

0

7

Generac 0J00620106

SPARK PLUG

$22.99

$

In Stock, only 2 left!

0

8

Generac 0J39340115

CYLINDER HEAD COMP
(Superseded to 0K56930SRV)

Note: ORDER 0K56930SRV

$259.99

$

In Stock, Qty 6

0

9

Generac 0J39340116

GASKET, CYLINDER HEAD

$12.99

$

Usually ships in 2-12 days

0

10

Generac 0G84420212

PIN, DOWEL

$1.49

$

In Stock, Qty 6

0

11

Generac 0G84420209

BOLT, STUD, INTAKE

$4.99

$

Usually ships in 2-12 days

0

12

Generac 0G84420194

BOLT, FLANGE M6×12

$1.49

$

In Stock, only 4 left!

0

13

Generac 0J39340117

SHROUD

$8.99

$

In Stock, only 2 left!

0
