GP6500 (0059461) - Generac Portable Generator, CARB (SN: 8918089A - 8918178A) (2014) Starter Parts Diagram

Portable Generator, CARB

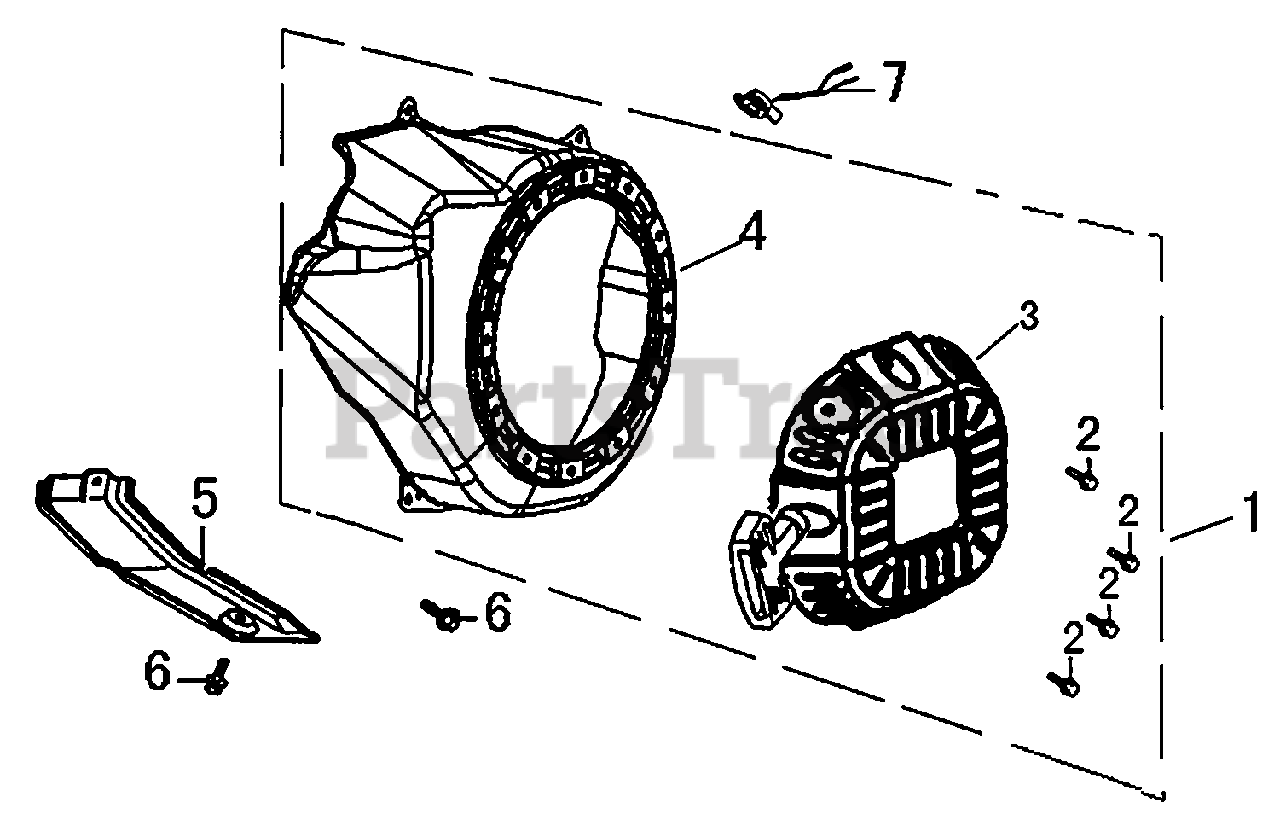

Starter Parts Diagram

  • Title
1

Generac 0K20670116

STARTER, RECOIL W/BLWR HSNG

$98.99

$

In Stock, only 1 left!

0

2

Generac 0G84420241

BOLT, FLANGE 6×8

$0.99

$

In Stock, Qty 10

0

3

Generac 0G9798

STARTER ASSY.

Note: IF NEED FULL ASSEMBLY W/ BLOWER HOUSING ORDER P/N 0G84420242. IF THE FOLLOWING MODELS HAVE A 0G9798 STRUCTURED IN THE BILL OF MATERIALS, BUT HAS A SQUARE RECOIL FIXED TO THE UNIT ORDER P/N 0J0813A: 6110-3, 5939-6, 5943-5, 5976-2, 5941-3, 5940-2, 5975-2, 5946-1, 5945-1, 5978-2.

$83.99

$

Usually ships in 2-12 days

0

4

Generac 0G8442A115

COVER COMP., FAN

$61.99

$

In Stock, only 2 left!

0

$8.99

$

In Stock, only 2 left!

0

6

Generac 0G84420194

BOLT, FLANGE 6×12

$1.49

$

In Stock, only 4 left!

0

7

Generac 0G9911

SWITCH ASSY., ENGINE STOP

$10.99

$

In Stock, only 1 left!

0
