GP6500 (0059411) - Generac Portable Generator (SN: 6350754A - 6358274A) (2011) Cylinder Head Parts Diagram
Portable Generator

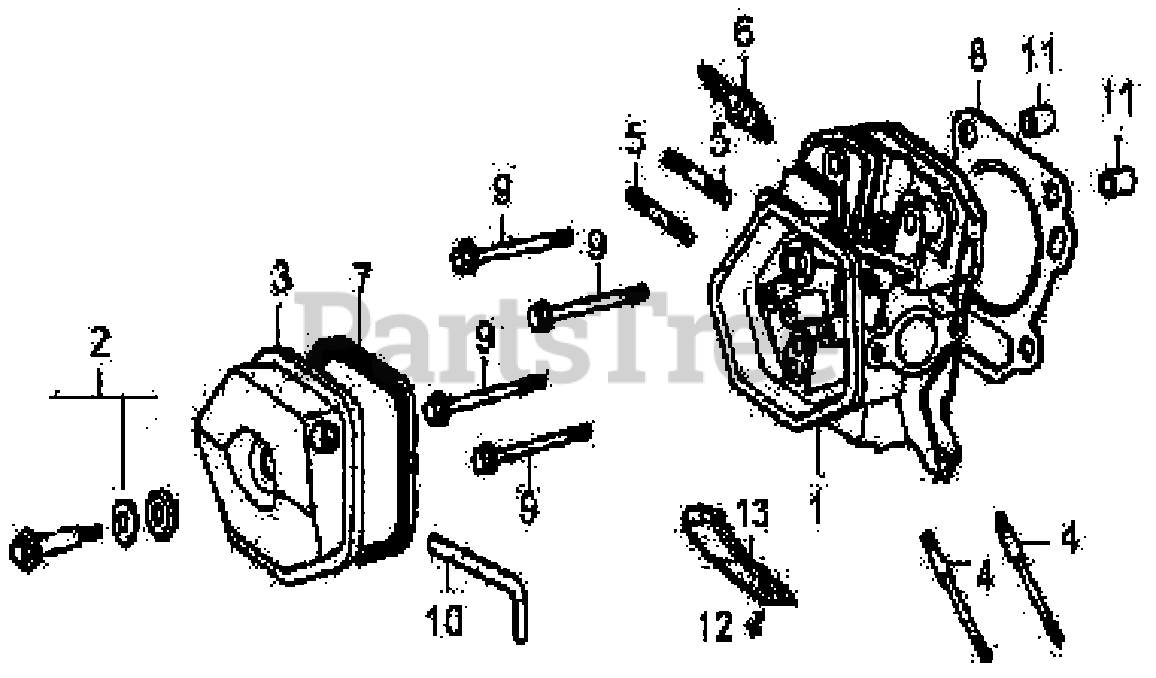

Cylinder Head Parts Diagram
Generac 0G84420208
HEAD COMP., CYLINDER
$196.99
$
Usually ships in 2-12 days
Generac 0G84420185
BOLT COMP., HEAD COVER
$7.99
$
In Stock, only 1 left!
Generac 0G9918
COVER COMP. HEAD
$17.99
$
Usually ships in 2-12 days
Generac 0G84420209
BOLT, STUD, INTAKE6-8×106
$4.99
$
Usually ships in 2-12 days
Generac 0G84420210
BOLT, STUD, EXHAUST 8×34
$2.99
$
In Stock, only 2 left!
Generac 0J00620106
SPARK PLUG
$22.99
$
In Stock, only 2 left!
Generac 0G9919
GASKET, CYLINDER
$8.99
$
Usually ships in 2-12 days
Generac 0G84420102
SEALING PAD, CYLINDER
$7.49
$
In Stock, only 1 left!
Generac 0G84420211
BOLT, FLANGE M10×80
$5.99
$
In Stock, only 4 left!
Generac 0G84420103
TUBE, BREATHER
$2.99
$
In Stock, only 2 left!
Generac 0G84420212
PIN, DOWEL 12×20
$1.49
$
In Stock, Qty 6
Generac 0G84420194
BOLT, FLANGE M6×12
$1.49
$
In Stock, only 4 left!
Generac 0G84420215
SHROUD
$5.49
$
Usually ships in 2-12 days
