GP6500 (0059401) - Generac Portable Generator (SN: 6702064A - 7202021A) (2012) Crankcase Cover Parts Diagram

Portable Generator

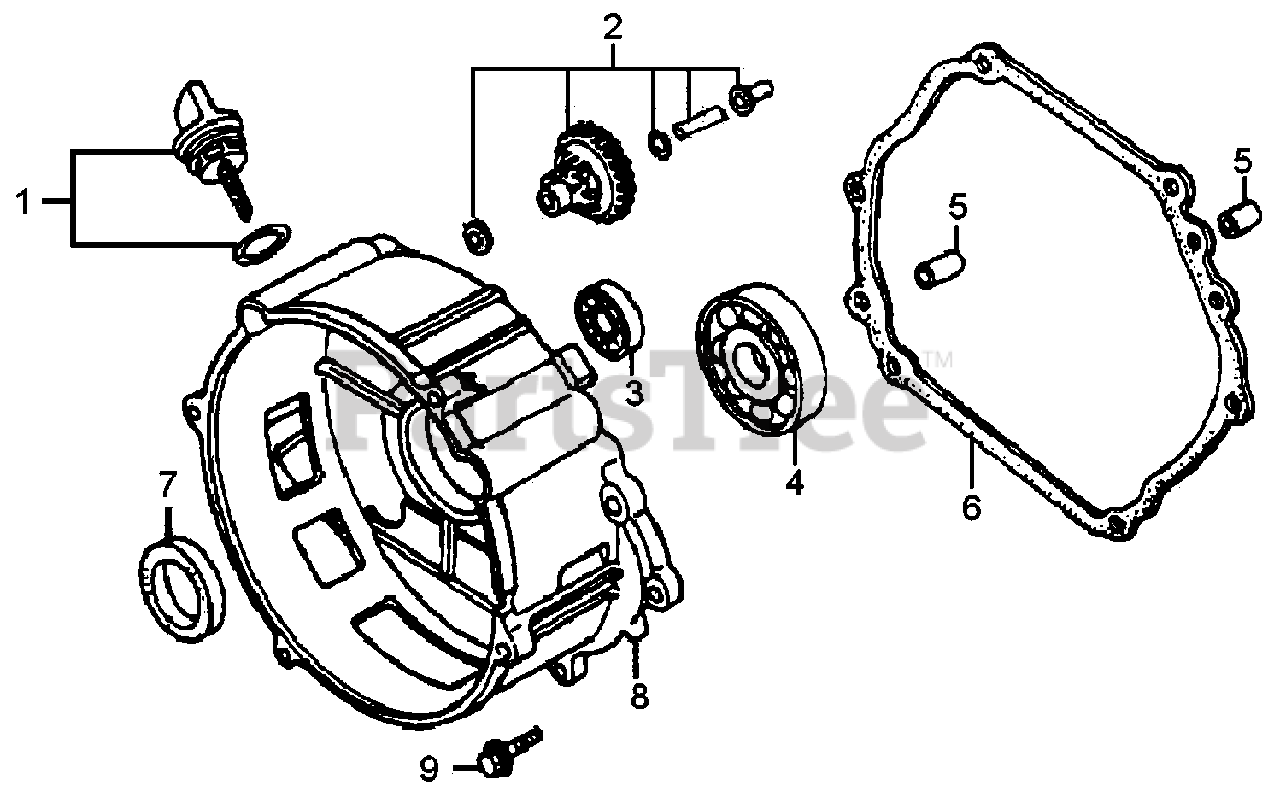

Crankcase Cover Parts Diagram

  • Title

1

Generac 0G9799

CAP COMP., OIL FILLER

$4.49

$

Usually ships in 2-12 days

0

2

Generac 0G84420221

GOVERNOR ASSY.

$19.99

$

Usually ships in 2-12 days

0

3

Generac 0G84420117

BEARING, RADIAL BALL 6207

$25.99

$

Usually ships in 2-12 days

0

4

Generac 0G84420118

BEARING, RADIAL BALL 6202

$14.99

$

Usually ships in 2-12 days

0

5

Generac 0G84420228

PIN, DOWEL 8×12

$0.99

$

Usually ships in 2-12 days

0

6

Generac 0G84420115

GASKET, CASE COVER

$14.99

$

Usually ships in 2-12 days

0

7

Generac 0G84420111

OIL SEAL 35×52×7
(Superseded to 0G84420116)

Note: USE 0G84420116 OIL SEAL

$21.99

$

Usually ships in 2-12 days

0

8

Generac 0G84420227

CRANKCASE COVER

$128.99

$

Usually ships in 2-12 days

0

9

Generac 0G84420229

BOLT, FLANGE M8×40

$3.49

$

Usually ships in 2-12 days

0
