GP2600 (0062170) - Generac Portable Generator (SN: 7174671B - 7357821B) (2012) Unit Assembly Parts Diagram

Portable Generator

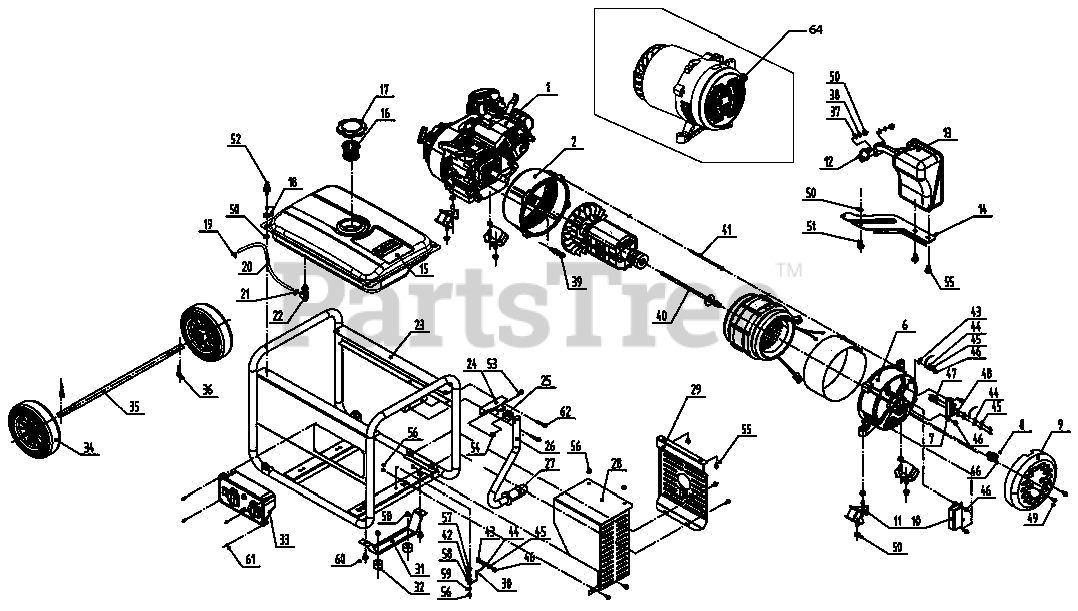

Unit Assembly Parts Diagram

  • Title

1

Generac 0J9480

208cc Engine

Note: FOR ENGINE INFORMATION REFER TO THE FOLLOWING: 0J9480PMNL 208cc GASOLINE ENG(G24)PARTS MNL

$593.99

$

Usually ships in 2-12 days

0

2

Generac 0H3976

Adaptor Casting, Eng/ALT 3250W

$114.99

$

Usually ships in 2-12 days

0

6

Generac 0J6975

Rear Bearing Carrier 190

$88.99

$

Usually ships in 2-12 days

0

7

Generac 0J6979

Wire Fasten Connection

$1.99

$

Usually ships in 2-12 days

0

8

Generac 0H3380

Assembly Brush 3.25kW Portable

$4.99

$

Usually ships in 2-12 days

0

9

Generac 0H3382

Cover, Alternator 3.25kW

$7.49

$

Usually ships in 2-12 days

0

10

Generac 0J94810111

3kW AVR

$51.99

$

Usually ships in 2-12 days

0

11

Generac 0H3415

Vib Mount 35 X 15 X M8-1.25

$4.49

$

In Stock, only 4 left!

0

12

Generac 0H3378

Muffler Gasket

$0.99

$

Usually ships in 2-12 days

0

13

Generac 0J94810112

Muffler

$

$

Currently unavailable

14

0J08180214

Muffler Bracket

$

$

Not available

15

Generac 0J94810113

Fuel Tank

Note: FOR 50HZ UNIT, ORDER 0J94810117 ASSY,FUELTANK 3.5GAL RUS DECAL. IF YOU NEED FUEL SHUTOFF DECAL, ORDER P/N 0H2550B. IF YOU NEED OPERATION INSTRUCTIONS, ORDER P/N 0H9937A.

$

$

Currently unavailable

16

Generac 0H1326

Fuel Tank Filter

$4.99

$

In Stock, only 3 left!

0

17

Generac 0G84300105

Fuel Tank Cap

$13.99

$

Usually ships in 2-12 days

0

18

Generac 0J6679

Rubber Mount 8 ID X 5 HGT

$0.99

$

Usually ships in 2-12 days

0

19

Generac 048031B

Clamp

$2.99

$

Usually ships in 2-12 days

0

20

Generac 0J6626

Fuel Hose, 4.5 ID, 8.5 OD, 160 LG

$26.99

$

Usually ships in 2-12 days

0

21

Generac 048031B

Clamp

$2.99

$

Usually ships in 2-12 days

0

22

Generac 0H3384

Valve Fuel Shutoff 4Gal Tank

$3.99

$

In Stock, only 1 left!

0

23

Generac 0H34070ST15

Assy Frame GP3250 1-Piece

Note: IF YOU NEED GROUND LUG DECAL, ORDER P/N 067210B. IF YOU NEED HOT EXHAUST DECAL, ORDER P/N 0H0116A. FRONT LOGO DECAL 0H9239 BACK LOGO DECAL 0H9240.

$189.99

$

Usually ships in 2-12 days

0

24

Generac 0H34080ST15

Bracket, Handle 3.25kW Portable

$6.99

$

Usually ships in 2-12 days

0

25

Generac 0H3396

Spacer Handle Plastic 3.25kW

$0.99

$

Usually ships in 2-12 days

0

26

Generac 0H33940ST15

Handle 3250W GP

$7.49

$

Usually ships in 2-12 days

0

27

Generac 0H3395

Handle Cover

Note: ORDER 0J6631

$

$

Not available

28

Generac 0H33900ST03

Heat Shld Exhst Frnt 163/208CC

$23.99

$

Usually ships in 2-12 days

0

29

Generac 0H33890ST03

Heat Shield, Exhaust Side

$9.49

$

Usually ships in 2-12 days

0

30

Generac 0J94810114

Grounding Wire

$1.49

$

Usually ships in 2-12 days

0

31

Generac 0H33930ST03

Bracket Foot 3.25kW Portble

$9.99

$

In Stock, only 1 left!

0

32

Generac 0H1829

Vib Mnt 38.1 X 25.4 X M8-1.25

$4.99

$

In Stock, Qty 5

0

33

Generac 0J94810115

Control Pannel

$

$

Currently unavailable

34

Generac 0H3392

Wheel , 8" Never-Flat 3.25kW

$46.99

$

In Stock, only 1 left!

0

35

Generac 0H33910ST15

Axle

$27.99

$

In Stock, only 1 left!

0

36

Generac 0H3443

Cotter Hairpin 2.56 X .80

$1.99

$

In Stock, Qty 5

0

37

Generac 0J08180229

Flat Washer

$0.99

$

Usually ships in 2-12 days

0

38

Generac 0J08180230

Spring Washer

$0.99

$

Usually ships in 2-12 days

0

39

Generac 0E9507B

Flange Bolt M8x25

$3.49

$

In Stock, Qty 5

0

40

Generac 0J6588

Rotor Bolt 5/16X210

$8.99

$

Usually ships in 2-12 days

0

41

Generac 0J6589

Stator Bolt M6x130

$3.49

$

In Stock, only 2 left!

0

42

Generac 0J08180235

Spring Washer

$1.49

$

Usually ships in 2-12 days

0

43

0J6678

External Tooth Lock Washer

$

$

Not available

44

Generac 080857

Flat Washer

$

$

Not available

45

Generac 080856

Spring Washer
(Superseded to G080856)

$0.99

$

Usually ships in 2-12 days

0

46

Generac 0J4968

Flange Bolt M5x16

$0.99

$

Usually ships in 2-12 days

0

47

Generac 052619

Full-Thread Bolt M5x20

$

$

Not available

48

Generac 051716

Nut M5
(Superseded to G051716)

$0.99

$

In Stock, only 1 left!

0

49

Generac 0J4967

Flange Bolt M5x12

$0.99

$

Usually ships in 2-12 days

0

50

Generac 067989

Flange Nut M8
(Superseded to G067989)

$2.49

$

In Stock, only 4 left!

0

51

Generac 089230

Flange Bolt M8x35

$

$

Not available

52

Generac 0E9507B

Flange Bolt M8x25

$3.49

$

In Stock, Qty 5

0

53

Generac 051753

Flange Bolt M6x40
(Superseded to G051753)

$1.49

$

In Stock, Qty 6

0

54

Generac 0E8388

Blocking Nut M6

$6.49

$

In Stock, only 1 left!

0

55

Generac 0G1705

Flange Bolt M6x12

$0.99

$

Usually ships in 2-12 days

0

56

Generac 0E8388

Flange Nut M6

$6.49

$

In Stock, only 1 left!

0

57

Generac 0G1705

Flange Bolt M6x14

$0.99

$

Usually ships in 2-12 days

0

58

Generac 049811

Flat Washer
(Superseded to G049811)

$0.99

$

In Stock, Qty 5

0

59

Generac 026850

Washer Lock Ext 1/4 STL

$

$

Not available

60

Generac 042907

Flange Bolt M8x16
(Superseded to G042907)

$2.49

$

In Stock, only 4 left!

0

61

Generac 0G8382

Screw PPPH #8-16 X .66" BZC

$1.49

$

Usually ships in 2-12 days

0

62

Generac 057821

Flange Bolt M8x40

$

$

Not available

63

Generac 0H1345G

Gauge, Fuel

$12.99

$

Usually ships in 2-12 days

0

64

Generac 0J94810116

Alternator Assy., Complete

Note: ORDER P/N 0K1880 USE 0K1880

$

$

Not available

Generac 0J94810117

Assy, Fueltank 3.5Gal Rus Decal

$86.99

$

Usually ships in 2-12 days

0
