GP 450 - Shindaiwa Water Pump Recoil Starter Parts Diagram

Water Pump

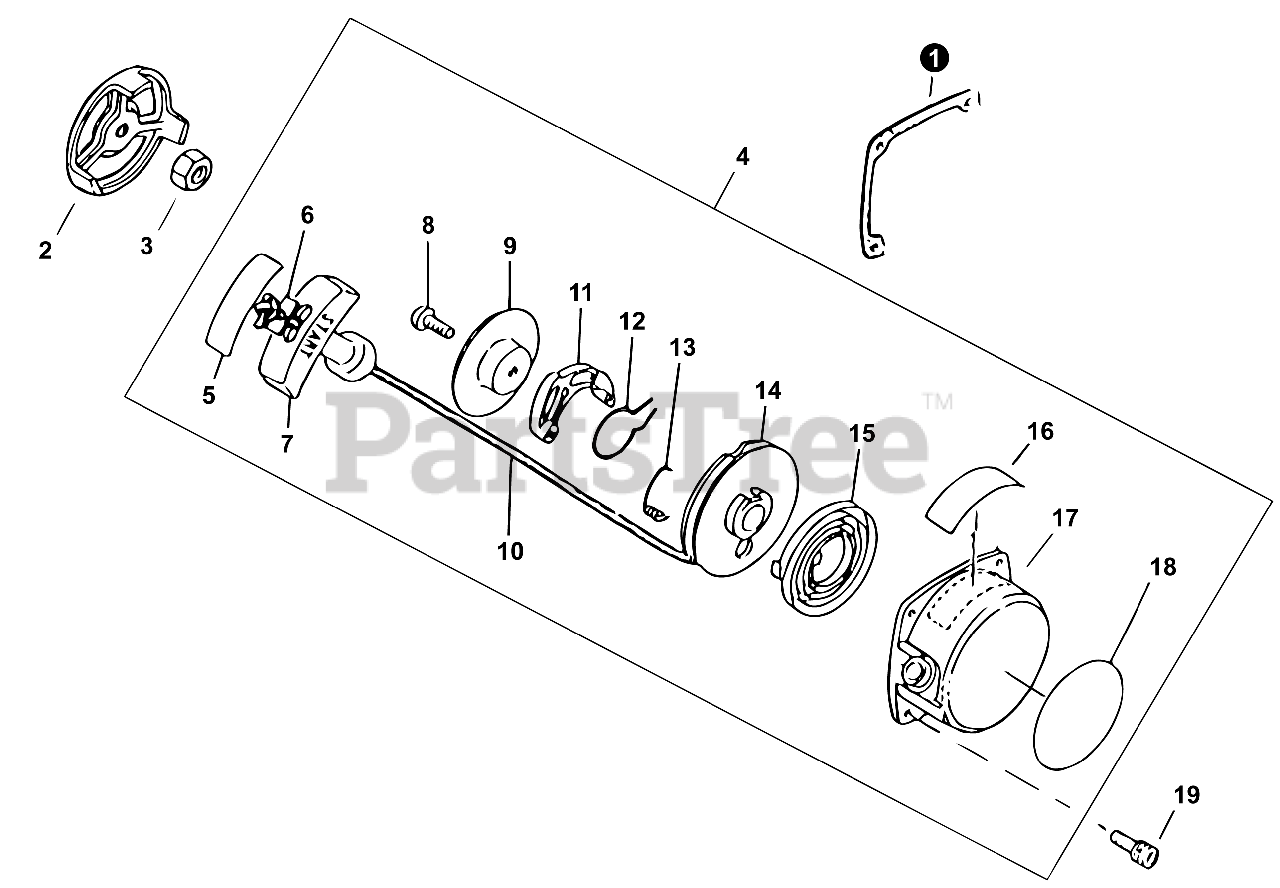

Recoil Starter Parts Diagram

  • Title

1

Echo 20020-76111

RECOIL STARTER GASKET
(Superseded to V105000030)

$1.99

$

In Stock, Qty 7

0

2

Echo 70000-75230

STARTER PULLEY
(Superseded to A520000170)

$4.99

$

Usually ships in 2-4 days

0

3

Echo 20000-76210

NUT M8×H5
(Superseded to V265000170)

$0.99

$

Usually ships in 2-4 days

0

4

Echo 70211-75100

RECOIL STARTER ASSY
(Superseded to P021036200)

Note: Includes Items 5-18

$50.99

$

Usually ships in 2-4 days

0

5

Echo 20010-75230

TAPE
(Superseded to X707000050)

$1.99

$

Usually ships in 2-4 days

0

6

Echo 20010-75210

ROPE STOPPER
(Superseded to A522000040)

$2.49

$

In Stock, Qty 7

0

7

Echo 20010-75190

STARTER HANDLE
(Superseded to A511000160)

$5.99

$

In Stock, Qty 20+

0

8

Echo 20000-75170

SCREW
(Superseded to V253000470)

$0.99

$

Usually ships in 2-4 days

0

9

Echo 20000-75150

FRICTION PLATE
(Superseded to A518000050)

$5.99

$

Usually ships in 2-4 days

0

10

Echo 20020-75180

STARTER ROPE
(Superseded to A509000190)

$8.49

$

Usually ships in 2-4 days

0

11

Echo 20000-75130

RATCHET
(Superseded to A514000130)

$2.49

$

In Stock, Qty 8

0

12

Echo 20000-75160

FRICTION SPRING
(Superseded to V452000550)

$3.49

$

In Stock, only 1 left!

0

13

Echo 20000-75220

RETURN SPRING
(Superseded to V452000560)

$1.99

$

Usually ships in 2-4 days

0

14

Echo 20020-75120

ROPE REEL
(Superseded to A506000270)

$11.99

$

Usually ships in 2-4 days

0

15

Echo 20020-75140

RECOIL SPRING
(Superseded to A504000140)

$17.99

$

Usually ships in 2-4 days

0

16

Echo 20010-75230

TAPE
(Superseded to X707000050)

$1.99

$

Usually ships in 2-4 days

0

17

Echo 70062-75110

RECOIL STARTER CASE
(Superseded to A500001230)

$40.99

$

Usually ships in 2-4 days

0

18

Echo 70211-75240

LABEL TRADE
(Superseded to X504004910)

$2.49

$

Usually ships in 2-4 days

0

19

Echo 11022-04160

BOLT SPW M4×16
(Superseded to V202000580)

$0.99

$

In Stock, only 2 left!

0
