GP 45 - Shindaiwa Water Pump Muffler Parts Diagram

Water Pump

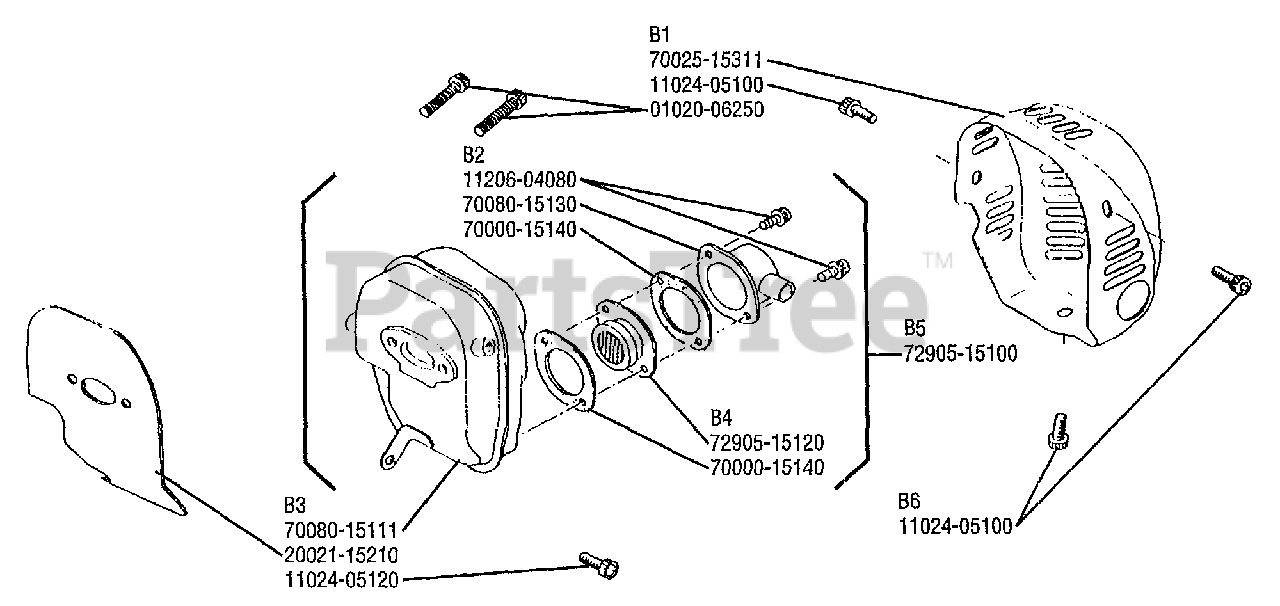

Muffler Parts Diagram

  • Title

B1-70025-15311

Echo 70025-15311

MUFFLER GUARD
(Superseded to A320000860)

$33.99

$

Usually ships in 2-4 days

0

B1-11024-05100

Echo 11024-05100

BOLT
(Superseded to V203000830)

$0.99

$

In Stock, Qty 8

0

B1-01020-06250

Echo 01020-06250

BOLT
(Superseded to 90010506025)

$1.49

$

In Stock, only 4 left!

0

B2-11206-04080

Echo 11206-04080

SCREW PM
(Superseded to 9157404008)

$

$

Not available

B2-70080-15130

Echo 70080-15130

MUFFLER CAP
(Superseded to A313001290)

$11.99

$

Usually ships in 2-4 days

0

B2-70000-15140

Echo 70000-15140

GASKET, ARRESTER
(Superseded to 70000-15141)

$

$

Not available

B4-72905-15120

Echo 72905-15120

ARRESTER

$16.99

$

Usually ships in 2-4 days

0

B4-70000-15140

Echo 70000-15140

GASKET, ARRESTER
(Superseded to 70000-15141)

$

$

Not available

B5-72905-15100

Echo 72905-15100

MUFFLER COMPLETE
(Superseded to A030000720)

$60.99

$

Usually ships in 2-4 days

0

B6-11024-05100

Echo 11024-05100

BOLT
(Superseded to V203000830)

$0.99

$

In Stock, Qty 8

0

B3-70080-15111

Echo 70080-15111

$

$

Currently unavailable

B3-20021-15210

Echo 20021-15210

GASKET, MUFFLER
(Superseded to V104001390)

$8.99

$

Usually ships in 2-4 days

0

B3-11024-05120

Echo 11024-05120

BOLT
(Superseded to V203000820)

$0.99

$

In Stock, Qty 9

0
