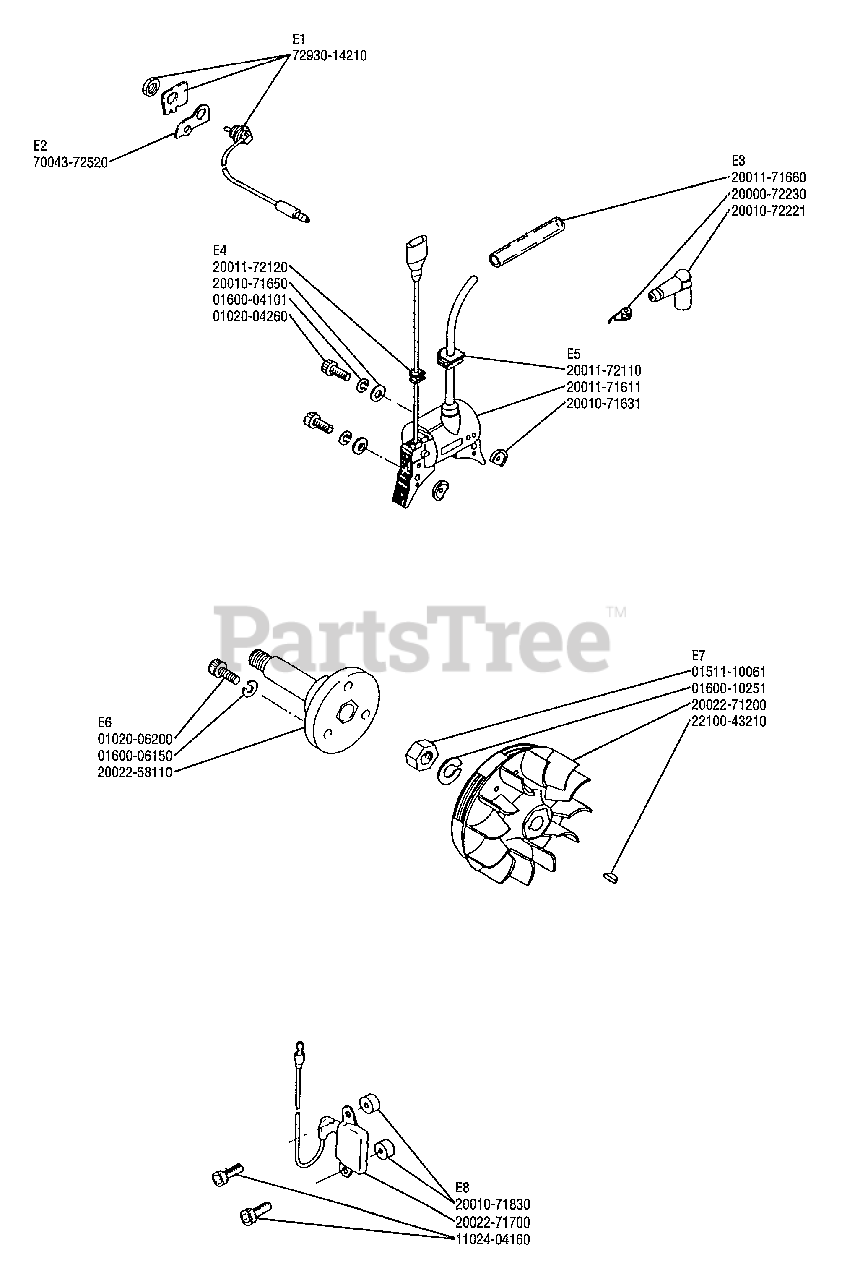

GP 45 - Shindaiwa Water Pump Flywheel, Ignition Parts Diagram

Water Pump

Flywheel, Ignition Parts Diagram

  • Title

E1-72930-14210

Echo 72930-14210

SWITCH
(Superseded to A045000340)

$11.99

$

Usually ships in 2-4 days

0

E2-70043-72520

Echo 70043-72520

BRACKET
(Superseded to Discontinued)

$

$

Not available

E3-20011-71660

Echo 20011-71660

TUBE
(Superseded to V475004880)

$0.99

$

Usually ships in 2-4 days

0

E3-20000-72230

Echo 20000-72230

SPRING, SPARK PLUG
(Superseded to A426000050)

$1.49

$

In Stock, Qty 12

0

E3-20010-72221

Echo 20010-72221

PLUG CAP
(Superseded to A427000090)

$5.99

$

In Stock, Qty 6

0

E4-20011-72120

Echo 20011-72120

GROMMET
(Superseded to V136000060)

$0.99

$

Usually ships in 2-4 days

0

E4-20010-71650

Echo 20010-71650

WASHER
(Superseded to V302000010)

$0.99

$

In Stock, Qty 6

0

E4-01600-04101

Echo 01600-04101

WASHER, SPRING
(Superseded to 90060500004)

$0.99

$

In Stock, Qty 20+

0

E4-01020-04260

Echo 01020-04260

BOLT
(Superseded to Discontinued)

$

$

Not available

E5-20011-72110

Echo 20011-72110

GROMMET
(Superseded to V135000080)

$1.99

$

Usually ships in 2-4 days

0

E5-20011-71611

Echo 20011-71611

COIL
(Superseded to A411000820)

$112.99

$

In Stock, only 1 left!

0

E5-20010-71631

Echo 20010-71631

SPACER, COIL
(Superseded to V352000140)

$1.99

$

In Stock, only 1 left!

0

E6-01020-06200

Echo 01020-06200

BOLT
(Superseded to 90010506020)

$1.49

$

In Stock, only 3 left!

0

E6-01600-06150

Echo 01600-06150

WASHER, SPRING
(Superseded to 9223406000)

$0.99

$

Usually ships in 2-4 days

0

E6-20022-58110

Echo 20022-58110

PUMP SHAFT
(Superseded to Discontinued)

$

$

Not available

E7-01511-10061

Echo 01511-10061

NUT
(Superseded to 90050300010)

$1.49

$

Usually ships in 2-4 days

0

E7-01600-10251

Echo 01600-10251

WASHER, SPRING
(Superseded to 90060500010)

$0.99

$

In Stock, Qty 9

0

E7-20022-71200

Echo 20022-71200

FLYWHEEL

$

$

Not available

E7-22100-43210

Echo 22100-43210

KEY
(Superseded to 12408-03100)

$1.99

$

In Stock, only 2 left!

0

E8-20010-71830

Echo 20010-71830

INSULATOR
(Superseded to V322000040)

$0.99

$

In Stock, only 3 left!

0

E8-20022-71700

Echo 20022-71700

UNIT
(Superseded to A420000000)

$113.99

$

Usually ships in 2-4 days

0

E8-11024-04160

Echo 11024-04160

BOLT
(Superseded to V202000300)

$0.99

$

In Stock, Qty 20+

0
