GP 25 - Shindaiwa Water Pump Muffler Parts Diagram

Water Pump

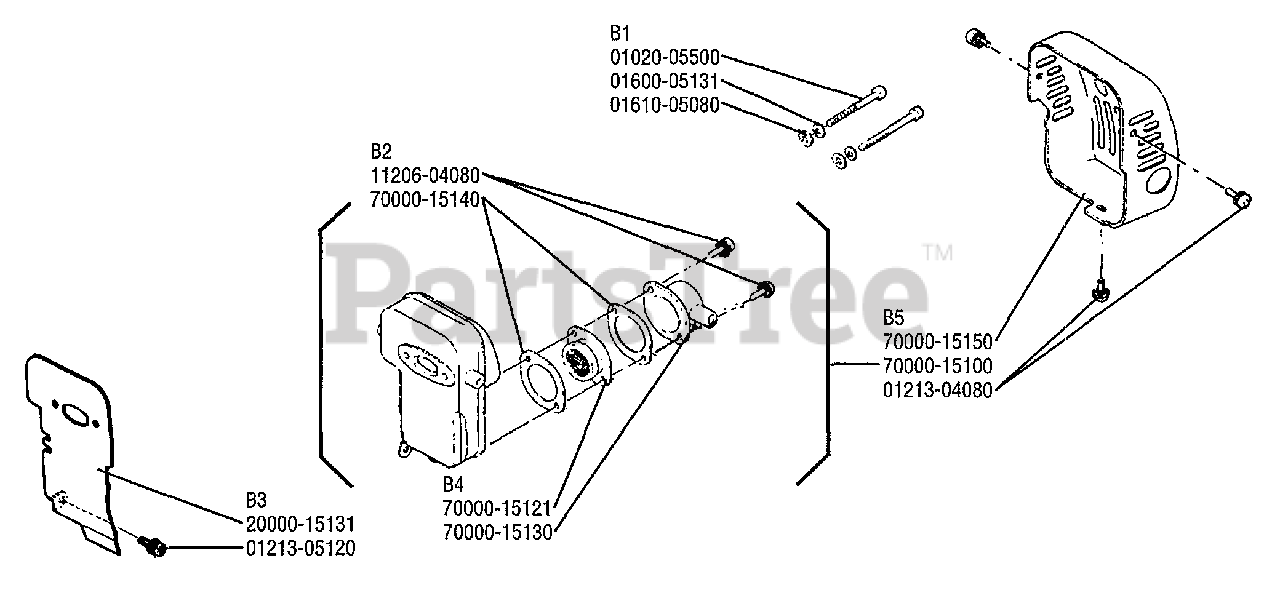

Muffler Parts Diagram

  • Title
B2-11206-04080

Echo 11206-04080

SCREW PM
(Superseded to 9157404008)

$

$

Not available

B2-70000-15140

Echo 70000-15140

GASKET, ARRESTER
(Superseded to 70000-15141)

$

$

Not available

B3-20000-15131

Echo 20000-15131

INSULATOR, MUFFLER
(Superseded to V104001650)

$7.99

$

Usually ships in 2-4 days

0

B3-01213-05120

Echo 01213-05120

SCREW
(Superseded to 9156405012)

$0.99

$

In Stock, Qty 15

0

B4-70000-15121

Echo 70000-15121

SPARK ARRESTER
(Superseded to Discontinued)

$

$

Not available

B4-70000-15130

Echo 70000-15130

CAP, MUFFLER

$6.49

$

Usually ships in 2-4 days

0

B5-70000-15150

Echo 70000-15150

GUARD MUFFLER
(Superseded to Discontinued)

$

$

Not available

B5-70000-15100

Echo 70000-15100

MUFFLER ASSY

$35.99

$

Usually ships in 2-4 days

0

B5-01213-04080

Echo 01213-04080

SCREW
(Superseded to 9156404008)

$0.99

$

In Stock, only 1 left!

0

B1-01020-05500

Echo 01020-05500

BOLT
(Superseded to 90010505050)

$1.49

$

In Stock, only 3 left!

0

B1-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

B1-01610-05080

Echo 01610-05080

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0
