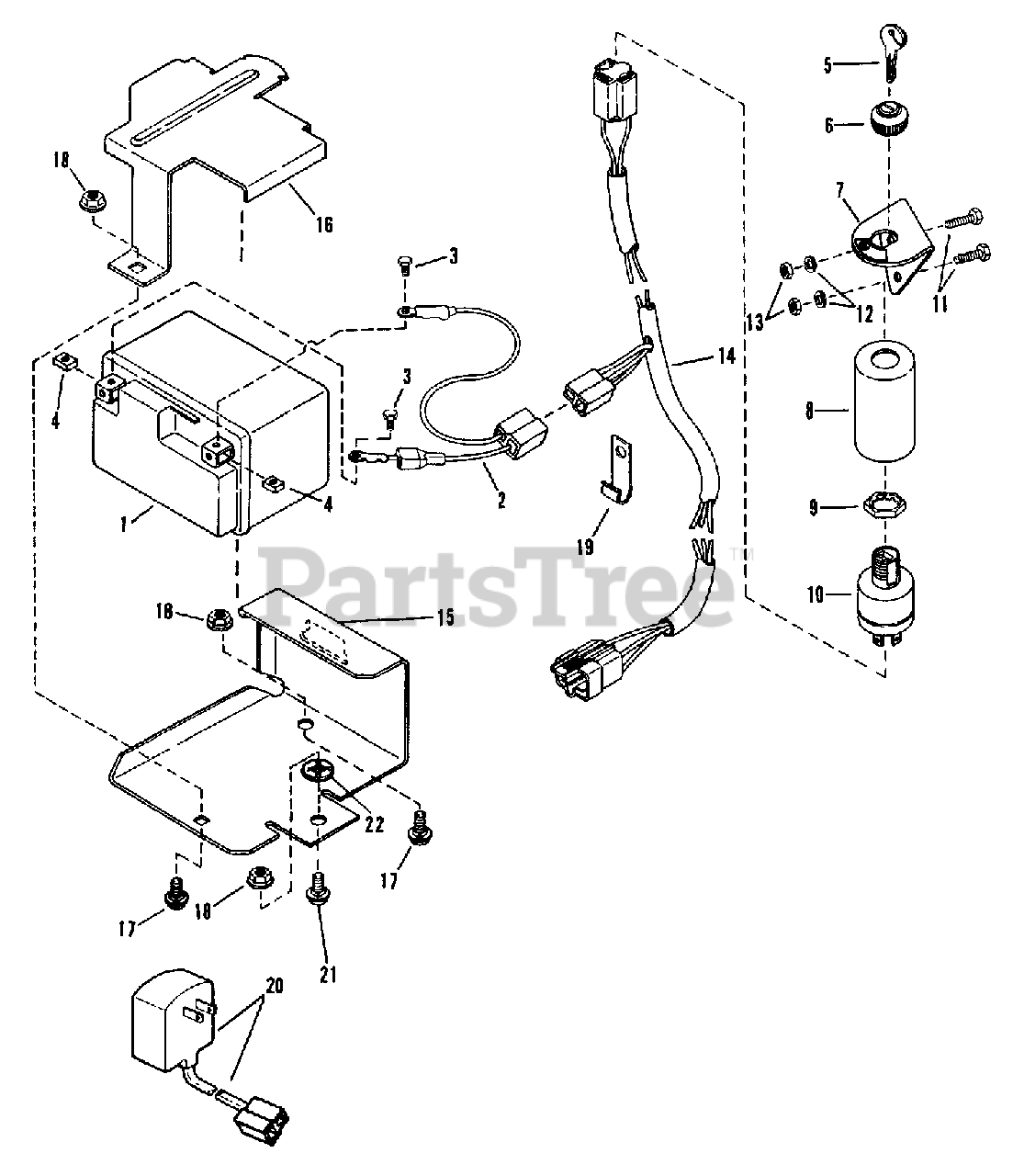

GP 21507BE (83750) - Snapper 21" Walk-Behind Mower, 5hp Electric Start Group Parts Diagram

21" Walk-Behind Mower, 5hp

Electric Start Group Parts Diagram

  • Title

1

Snapper 7067012

KIT, Battery, 12 Volt, 35 CCA (Includes 1, 2, 3, & 4)
(Superseded to 7067012YP)

Note: Was 19763

$93.99

$

Usually ships in 2-12 days

0

2

Snapper 7015488

HARNESS, Battery
(Superseded to 7015488YP)

$14.99

$

In Stock, only 1 left!

0

3

Snapper 7043977

SCREW, #10-24 x 1/2 Hex Head Cap
(Superseded to 7043977YP)

$

$

Not available

4

Snapper 7090932

NUT, #10-24 Square
(Superseded to 7090932YP)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7011167

KEY, (Set of 2)
(Superseded to 7011167YP)

$5.99

$

In Stock, only 1 left!

0

6

Snapper 7015207

ASSEMBLY, Seal & Face Nut
(Superseded to 7015207YP)

$6.99

$

Usually ships in 2-12 days

0

7

Snapper 7038485

BRACKET, Ignition Switch

$

$

Not available

8

Snapper 7023894

COVER, Switch
(Superseded to 7023894YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7015206

NUT, 3/4-20 Lock

$

$

Not available

10

Snapper 7011139

SWITCH, Ignition
(Superseded to 7011139YP)

Note: Was 15205

$42.99

$

Usually ships in 2-12 days

0

11

Snapper 7090552

SCREW, 1/4-28 x 1 3/8" Hex Head Cap
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 6

0

13

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7019298

HARNESS, Wiring 60"
(Superseded to 7019298YP)

Note: Was 17213, 46" on "90 Models & Earlier)

$33.99

$

Usually ships in 2-12 days

0

15

Snapper 7032906

BRACKET, Battery
(Superseded to 7032906AYP)

Note: (For Self-Propelled Models)

$11.99

$

Usually ships in 2-12 days

0

16

Snapper 7036132

COVER, Battery
(Superseded to 7036132AYP)

Note: (For Self-Propelled Models)

$28.99

$

Usually ships in 2-12 days

0

17

Snapper 7090731

BOLT, 5/16-18 x 1/2" Carriage
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7012652

CLIP, Wiring
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7061188

CHARGER, Battery (60 Hertz)
(Superseded to 770625)

Note: Was 18834, note: 18834 Rpl By 206838

$59.99

$

In Stock, only 2 left!

0

21

Snapper 7090779

BOLT, 5/16-18 x 5/8" Short Neck. Carriage, Gr. 5
(Superseded to 7090779YP)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0
