GN6500 (0490-0) - Generac 6,500 Watt Portable Generator Generator Drawing No. 98527 Parts Diagram

6,500 Watt Portable Generator

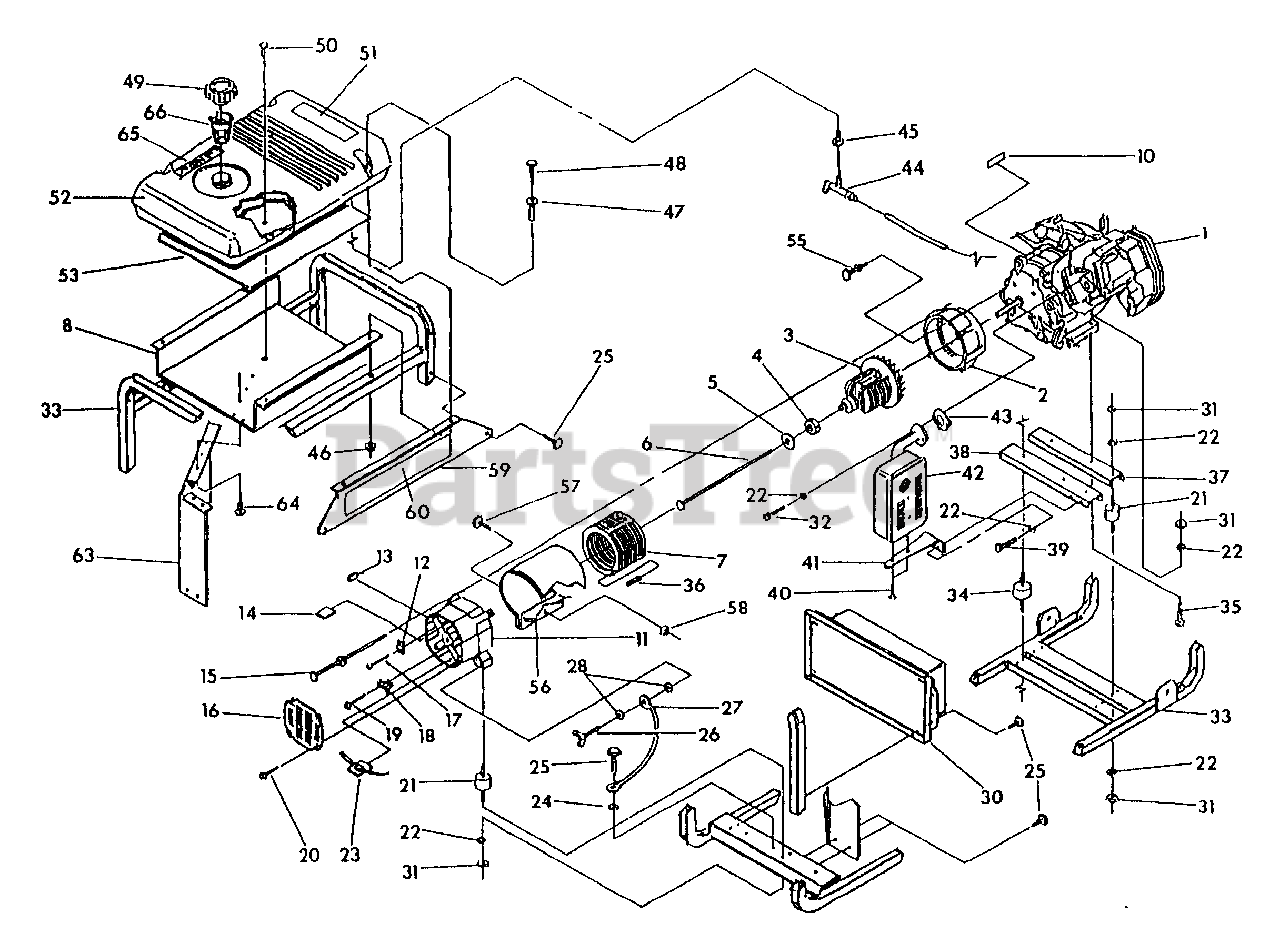

Generator Drawing No. 98527 Parts Diagram

  • Title

1

Briggs & Stratton ENG98938

GN-Engine

$

$

Currently unavailable

2

Briggs & Stratton 92247

Engine Adaptor Housing
(Superseded to 92247GS)

$122.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 92679G

Rotor Assembly
(Superseded to 92679GGS)

$617.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 65791

Shaft Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 67451

M8 Flat Washer

$

$

Currently unavailable

6

Briggs & Stratton 25254

5/16-24 x 9-7/8" Long Hex Head Capscrew
(Superseded to 5025254)

$2.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 98514

Stator Assembly
(Superseded to 98514GS)

$

$

Not available

8

Briggs & Stratton 92039

Shield

$

$

Currently unavailable

10

Briggs & Stratton 98141

Data Decal

$

$

Currently unavailable

11

Briggs & Stratton 66825C

Rear Bearing Carrier
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 65795

Battery Charge Rectifier
(Superseded to 65795GS)

$

$

Not available

13

Briggs & Stratton 67022

Rubber Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 84132

Power Module
(Superseded to 84132GS)

$126.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 86308A

M6-1.0 x 165mm Long Screw
(Superseded to 86308AGS)

$4.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 67025

Rear Bearing Carrier Cover

$

$

Currently unavailable

17

Briggs & Stratton 66849A

M5-0.7 x 20mm Long Taptite
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66386

Brush Holder Assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

19

Briggs & Stratton 66849

M5-0.8 x 16mm Long Taptite
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 74908

M5-0.8 x 10mm Long Taptite
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 82857

Vibration Mount
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22129

M8-5/16 Lockwasher
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 57593

Cable Tie Mount
(Superseded to 57593GS)

$5.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22769

#10 Shakeproof Int. Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 86292

#10 Self Driller Hex Head Capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 86494

M6-1.0 x 16mm Long Wing Screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

27

14353621

Ground Wire

$

$

Not available

28

Briggs & Stratton 26850

M6 Shakeproof Ext. Washer

$

$

Not available

30

Briggs & Stratton 98523

Control Box Assembly
(Superseded to 98523GS)

$

$

Not available

31

Briggs & Stratton 25244

5/16-18 Hex Nut
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 40976

M8-1.25 x 20mm Long S. Head Capscrew

$

$

Not available

33

Briggs & Stratton 92432

Cradle

$

$

Currently unavailable

34

Briggs & Stratton 92609

Vibration Mount
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 22531

5/16-18 x 1-3/4" Long Hex Head Capscrew
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 81917

4mm x 10 Roll Pin
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 92531

Engine Support

$

$

Currently unavailable

38

Briggs & Stratton 92731

Engine & Muffler Support
(Superseded to N92731GS)

$24.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 22142

5/16-18 x 3/4" Long Hex Head Capscrew
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 66476

M6-1.00 12mm Long Hex Head Capscrew/LW
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 92532

Muffler Bracket
(Superseded to 92532GS)

$22.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 91153

Muffler
(Superseded to A7433GS)

$

$

Not available

43

Briggs & Stratton 90239

Muffler Gasket
(Superseded to 90239GS)

$4.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 80270

Fuel Tank Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

45

Briggs & Stratton 78299

Plastic Tank Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 77395

M6 Flange Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 83465

Tank Mtg. Grommet
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 8

0

48

Briggs & Stratton 78831B

M6-1.00 x 60mm Long Hex Head M. Screw
(Superseded to 78831BGS)

$

$

Not available

49

Briggs & Stratton 95549

Fuel Cap
(Superseded to 95549GS)

$28.99

$

In Stock, only 1 left!

0

50

Briggs & Stratton 85000

Insulation Clip
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 98819

Start Instructions Decal

$

$

Not available

52

Briggs & Stratton 92035

Fuel Tank

$

$

Not available

53

Briggs & Stratton 92665

2-1/4" Thick Insulation
(Superseded to 92665GS)

$16.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 86307

5/16-24 x 3/4" Long SEMS Hex Head M. Screw
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

56

Briggs & Stratton 81887G

Stator Wrap
(Superseded to 81887GGS)

$19.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 52618

M5-0.8 x 12 Long Hex Head Capscrew
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 52856

M5-0.8 Locking Nut
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 92037

Side Panel

$12.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 98382

Side Panel Decal

$

$

Currently unavailable

63

Briggs & Stratton 96068

Head Shield

$

$

Currently unavailable

64

Briggs & Stratton 56893

10-24 x 1/2 Crimptite
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

65

Briggs & Stratton 98818

Generac Decal

$

$

Not available

66

Briggs & Stratton 69659

Fuel Filter Basket

$

$

Not available
