GN5500 (0488-1) - Generac 5,500 Watt Portable Generator Engine Drawing No. 81645 Parts Diagram

5,500 Watt Portable Generator

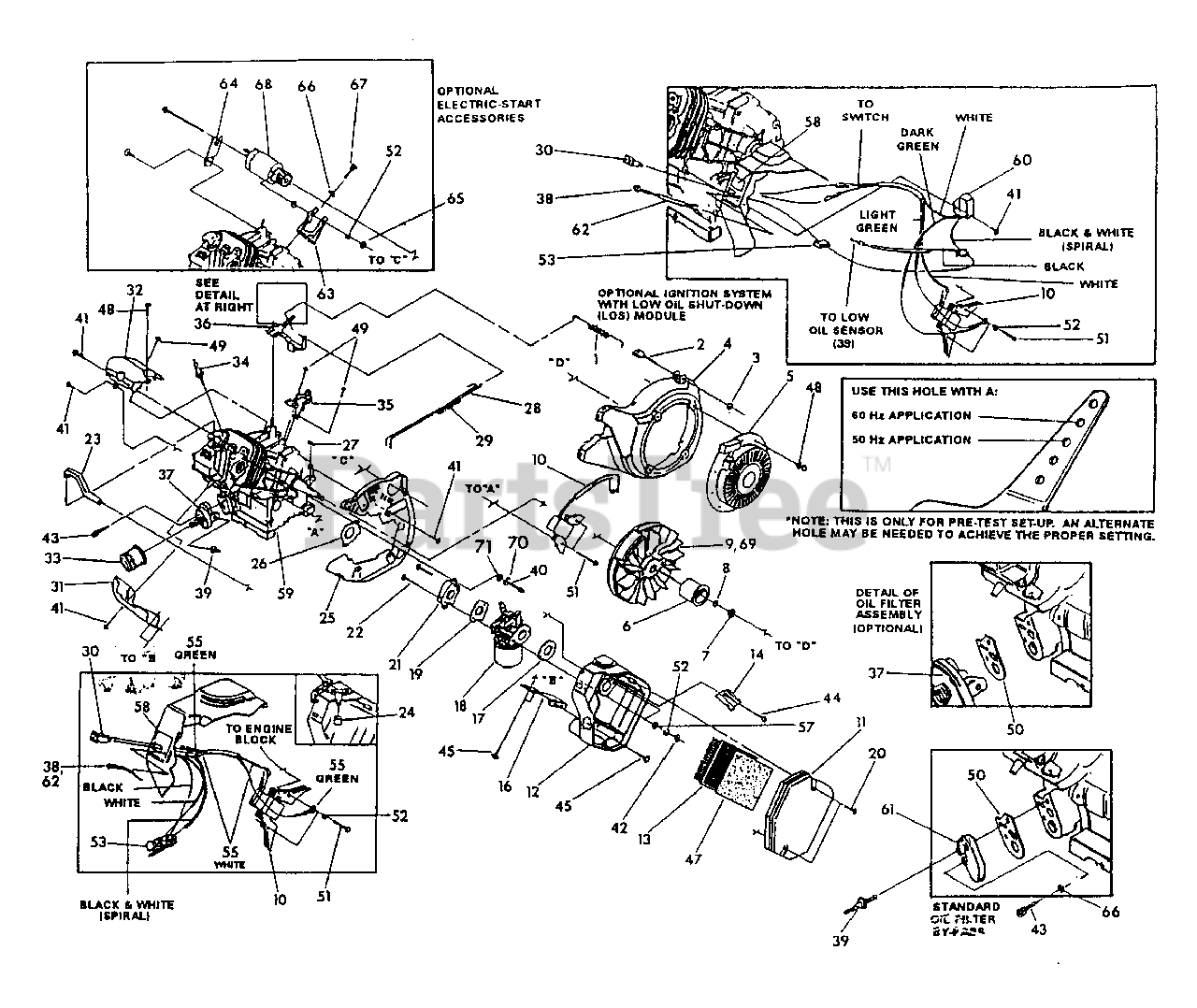

Engine Drawing No. 81645 Parts Diagram

  • Title

1

Briggs & Stratton 73100

Governor Spring
(Superseded to 7073100SM)

$9.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 83502

M5 Gov. Adjustment Bolt

$

$

Not available

3

Briggs & Stratton 83503

M5-0.8 Metal Lock Nut

$

$

Currently unavailable

4

Briggs & Stratton 92437

Blower Housing Assembly

$

$

Currently unavailable

5

Briggs & Stratton 95092

Recoil Assembly

$

$

Currently unavailable

6

Briggs & Stratton 81641

Recoil Cup

$

$

Currently unavailable

7

Briggs & Stratton 67809

Hex Nut Flywheel

$

$

Currently unavailable

8

Briggs & Stratton 67198N

20 x 2.2 Bevel Washer

$

$

Currently unavailable

9

Briggs & Stratton 77147A

Flywheel Assembly

$

$

Currently unavailable

10

Briggs & Stratton 84542

Ignition Coil Assem.

$

$

Currently unavailable

11

Briggs & Stratton 73104A

Air Cleaner Cover

$

$

Currently unavailable

12

Briggs & Stratton 76108A

Air Cleaner Base w/nuts

$

$

Currently unavailable

13

Briggs & Stratton 73111

Air Cleaner Element
(Superseded to 73111GS)

$15.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 91204

Spit Back Plate

$

$

Not available

16

Briggs & Stratton 90827

Air Box Bracket

$

$

Not available

17

Briggs & Stratton 90970

Air Cleaner Gasket
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 91187A

GN360 Carburetor

$

$

Currently unavailable

18

Briggs & Stratton 93302A

GN320 Carburetor

$

$

Currently unavailable

19

Briggs & Stratton 89228

Carb./Manifold Gasket

$

$

Not available

20

Briggs & Stratton 78609

Air Cleaner Cover Bolt

$

$

Not available

21

Briggs & Stratton 91028

"K" Adaptor
(Superseded to 7091028YP)

$

$

Not available

22

Briggs & Stratton 81647

Carb. Mount. Bolt

$

$

Not available

23

Briggs & Stratton 72745

Breather Hose
(Superseded to 7072745YP)

$319.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 83504

Choke Knob

$

$

Not available

25

Briggs & Stratton 73116A

Blower Housing Backplate with electric start

$

$

Currently unavailable

25

Briggs & Stratton 73116C

Blower Housing Backplate without electric start

$

$

Currently unavailable

26

Briggs & Stratton 91039

Intake/Adaptor Gasket
(Superseded to 7091039YP)

$3.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 82774

4 x 190 Woodruff Key

$

$

Not available

28

Briggs & Stratton 72735

Governor Control Rod

$

$

Not available

29

Briggs & Stratton 72789

Gov. Anti-lash spring

$

$

Currently unavailable

30

Briggs & Stratton 78653

Engine Shut-Off Switch
(Superseded to 78653GS)

$

$

Not available

31

Briggs & Stratton 88434

Bottom Wrapper

$

$

Currently unavailable

32

Briggs & Stratton 88433

Top Wrapper

$

$

Currently unavailable

33

Briggs & Stratton 70185

Oil Filter
(Superseded to 70185GS)

Note: (Optional)

$

$

Not available

34

Briggs & Stratton 72347

Spark Plug
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

35

Briggs & Stratton 73101

Governor Adjust w/Idle Control Bracket

$

$

Currently unavailable

36

Briggs & Stratton 72734

Gov. Lever Assembly

$

$

Not available

37

Briggs & Stratton 94683

Oil Filter Adaptor
(Superseded to 690369)

$5.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 85272

Low Oil Indicator Lamp

$

$

Currently unavailable

39

Briggs & Stratton 77667

Low Oil Pressure Switch

$

$

Not available

40

Briggs & Stratton 40945

M6-1 x 20 Capscrew
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

41

Briggs & Stratton 45756

M6-1 x 10 Taptite

$

$

Not available

42

Briggs & Stratton 49813

M6-1 Hex Nut
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 49821

M8-1.25 x 30 Capscrew

$

$

Not available

44

Briggs & Stratton 59635

M8 x 0.37 Plastite

$

$

Currently unavailable

45

Briggs & Stratton 66476

M6-1 x 12 Capscrew
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 81646

Air Filter Pre-Cleaner

$

$

Not available

48

Briggs & Stratton 81668

M6-1 x 10 Capscrew

$

$

Not available

49

Briggs & Stratton 83512

M8-1.25 x 15 Taptite
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 86999

Oil Filter Adaptor Gasket

$

$

Not available

51

Briggs & Stratton 92079

M6-1 x 25 Taptite
(Superseded to 7092079YP)

$4.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 22097

M6 Lockwasher
(Superseded to 5022097)

Note: (6 w/optional Elec. Start)

$2.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 84329

3 Pin Male Housing

$

$

Currently unavailable

55

Briggs & Stratton 92981

Ignition Wire Assembly

$

$

Currently unavailable

57

Briggs & Stratton 49811

M6 x 12.5 Flat Washer
(Superseded to 49811GS)

$1.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 93104

LOS Engine Decal

$

$

Currently unavailable

59

Briggs & Stratton 90780A

Engine Taper Shaft (GN320 Long Block)

$

$

Currently unavailable

59

Briggs & Stratton 99097

Engine Straight Shaft (GN320 Long Block)

$

$

Currently unavailable

59

Briggs & Stratton 90782A

Engine Taper Shaft (GN360 Long Block)

$

$

Currently unavailable

59

Briggs & Stratton 91001A

Engine Straight Shaft (GN360 Long Block)

$

$

Currently unavailable

60

Briggs & Stratton 87221B

LOS Module

Note: (Optional)

$

$

Currently unavailable

61

Briggs & Stratton 72709

Oil Filter Pad Cover
(Superseded to 7072709YP)

$67.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93611

Sleeving

$

$

Not available

63

Briggs & Stratton 86260

Starter Mount Bracket

$

$

Not available

64

Briggs & Stratton 93922

Starter Support Bracket
(Superseded to 93922GS)

$6.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 22127

1/4-20 Thread Hex Nut

$

$

Not available

66

Briggs & Stratton 22129

M8 Lockwasher
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

67

Briggs & Stratton 40976

M8-1.25 x 20 Capscrew

$

$

Not available

68

Briggs & Stratton 93487

"S" Engine Starter Motor

$

$

Currently unavailable

69

Briggs & Stratton 91222B

Flywheel & Ring Gear Assem.

$

$

Currently unavailable

70

Briggs & Stratton 93873

M6 Lockwasher

$4.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 20769

M6 Flatwasher
(Superseded to 20769GS)

$1.99

$

Usually ships in 2-12 days

0
