GN5500 (0488-0) - Generac 5,500 Watt Portable Generator Long Block "S" GN-Engine Drawing No. 89294 Parts Diagram

5,500 Watt Portable Generator

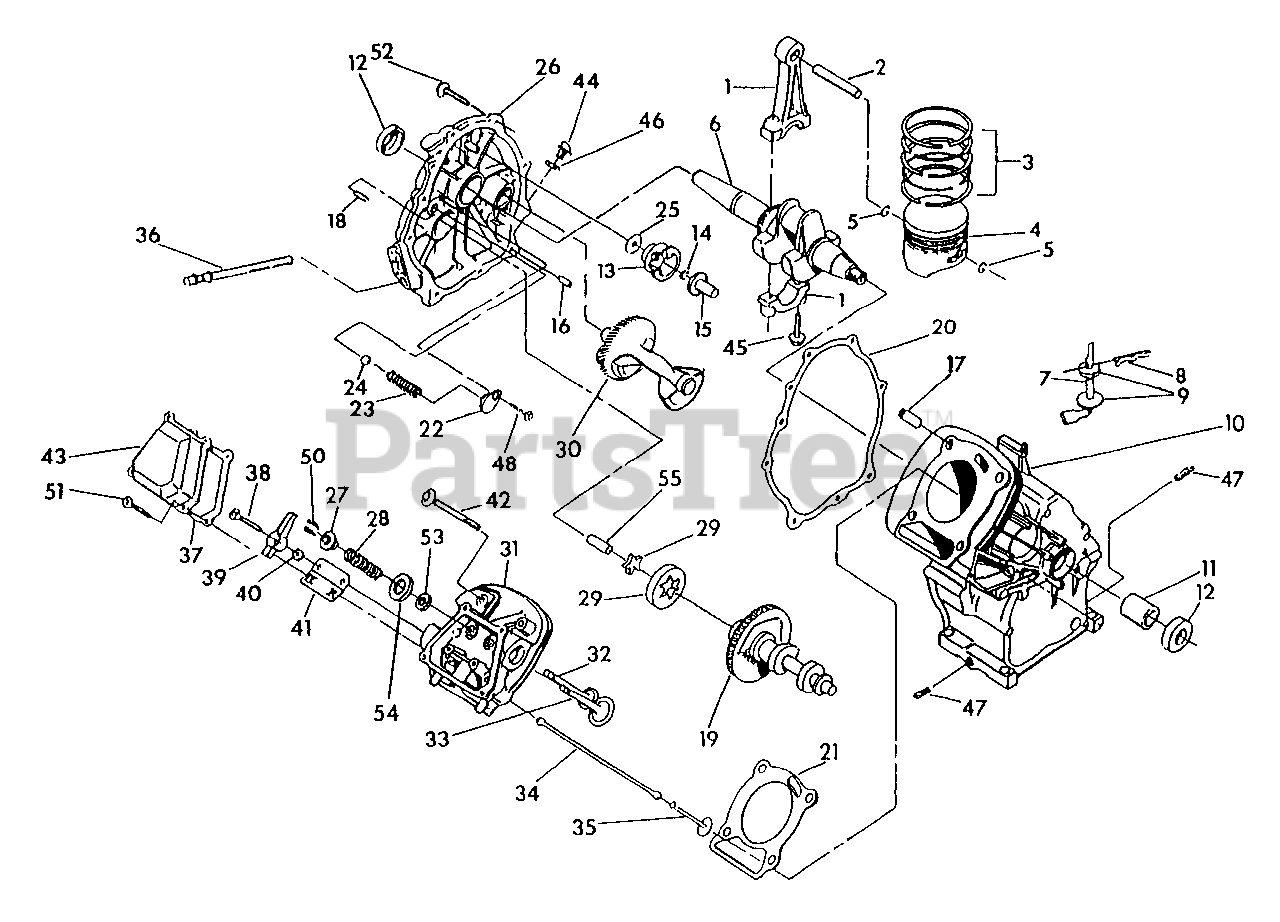

Long Block "S" GN-Engine Drawing No. 89294 Parts Diagram

  • Title

1

Briggs & Stratton 71978

Connecting Rod with Cap and Bolt

$

$

Currently unavailable

2

Briggs & Stratton 71980

Piston Pin

$

$

Currently unavailable

3

Briggs & Stratton 89291

Piston Ring Set

$

$

Currently unavailable

4

Briggs & Stratton 89217

Piston

$

$

Currently unavailable

5

Briggs & Stratton 71983

Piston Pin Retainer

$

$

Not available

6

Briggs & Stratton 78666

Crankshaft Assm. with Gears

Note: Small Taper

$

$

Currently unavailable

6

Briggs & Stratton 76378

Crankshaft Assembly with Gears

Note: Straight Shaft

$

$

Currently unavailable

7

Briggs & Stratton 83948

Governor Arm

$

$

Currently unavailable

8

Briggs & Stratton 78658

Governor Arm "R" Pin

$

$

Not available

9

Briggs & Stratton 78659

Governor Arm Washer

$

$

Not available

10

Briggs & Stratton 88261B

Crankcase H.S. w/Taper Plugs

$

$

Currently unavailable

11

Briggs & Stratton 72654

Sleeve Bearing

$

$

Currently unavailable

12

Briggs & Stratton 72655

Crankshaft Seal

$11.99

$

In Stock, Qty 5

0

13

Briggs & Stratton 83912

Governor Gear Assembly

$

$

Currently unavailable

14

Briggs & Stratton 78645

Governor Retainer

Note: "C" Ring

$

$

Not available

15

Briggs & Stratton 76365

Governor Spool

$

$

Currently unavailable

16

Briggs & Stratton 78699B

Sleeve Dowel DIA. 12

$

$

Currently unavailable

17

Briggs & Stratton 78699C

Sleeve Dowel DIA. 14

$

$

Currently unavailable

18

Briggs & Stratton 87710

Solid Dowel DIA. 12

$

$

Currently unavailable

19

Briggs & Stratton 83932

Camshaft Assembly

$

$

Currently unavailable

20

Briggs & Stratton 76701

Crankcase Gasket

$

$

Not available

21

Briggs & Stratton 73142

Cylinder Head Gasket
(Superseded to 7073142YP)

$16.99

$

In Stock, Qty 7

0

22

Briggs & Stratton 78691

Oil Pressure Relief Cover

$

$

Not available

23

Briggs & Stratton 83918

Pressure Relief Spring

$

$

Currently unavailable

24

Briggs & Stratton 76362

Pressure Relief Ball

$

$

Currently unavailable

25

Briggs & Stratton 76361

Thrust Washer

$

$

Not available

26

Briggs & Stratton 88260B

Gear Cover

$

$

Currently unavailable

27

Briggs & Stratton 86514

Valve Spring Retainer

$

$

Not available

28

Briggs & Stratton 91308

Valve Spring
(Superseded to 690281)

$31.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 86025

Geroter Set

$

$

Not available

30

Briggs & Stratton 84430

Balancer

$

$

Currently unavailable

31

Briggs & Stratton 83923

Cylinder Head with Valve Seats and Guides

$

$

Currently unavailable

32

Briggs & Stratton 86516

Exhaust Valve

$

$

Not available

33

Briggs & Stratton 86517

Intake Valve

$

$

Not available

34

Briggs & Stratton 86396B

Push Rod

$

$

Currently unavailable

35

Briggs & Stratton 83897

Tappet

$

$

Not available

36

Briggs & Stratton 77158

Oil Pick-up Assembly

$

$

Not available

37

Briggs & Stratton 71987

Rocker Cover Gasket
(Superseded to 7071987YP)

$12.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 72694

Pivot Ball Stud

$

$

Not available

39

Briggs & Stratton 83907

Rocker Arm

$

$

Not available

40

Briggs & Stratton 72696

Rocker Arm Jam Nut

$

$

Currently unavailable

41

Briggs & Stratton 78694

Push Rod Guide Plate

$

$

Not available

42

Briggs & Stratton 73149

M10 x 100mm Head Bolt

$

$

Currently unavailable

43

Briggs & Stratton 83938

Rocker Cover Breather Asm.

$

$

Not available

44

Briggs & Stratton 76329

Oil Fill Plug

$

$

Not available

45

Briggs & Stratton 71979

Connecting Rod Bolt

$

$

Currently unavailable

46

Briggs & Stratton 86254

17.8 I.D. x 2.4 Thick O-Ring

$

$

Currently unavailable

47

Briggs & Stratton 26925

PLUG, Pipe, NPT, 3/8"
(Superseded to 691599)

$8.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 78692

M5 - 0.8 x 8mm Screw

Note: Thread Forming

$

$

Currently unavailable

50

Briggs & Stratton 86515

Valve Spring Keeper

$

$

Not available

51

Briggs & Stratton 78606

M6 - 1.0 x 12mm Pan Head Screw and Lockwasher

$

$

Currently unavailable

52

Briggs & Stratton 73144

M8 - 1.25 x 45mm Hex Head Flange Bolt

$

$

Currently unavailable

53

Briggs & Stratton 78672

Valve Stem Seal

$

$

Not available

54

Briggs & Stratton 89673

Valve Spring Washer

$

$

Not available

55

Briggs & Stratton 83921

Generator Bearing Tube Shaft

$

$

Currently unavailable
