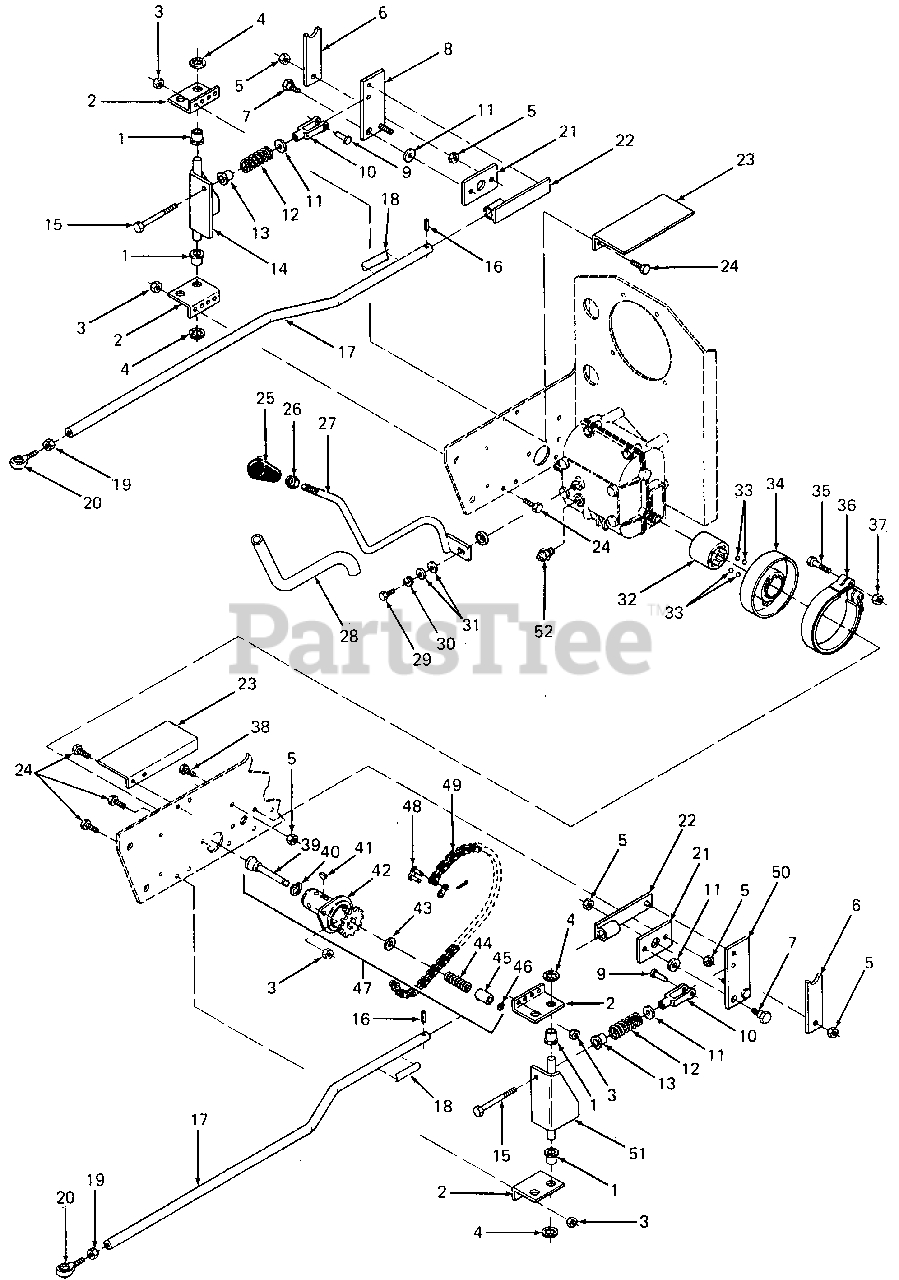

GMT 150 (169-150-100) - Cub Cadet Grounds Maintenance Tractor Steering & Transmission Controls & Brake Parts Diagram

Grounds Maintenance Tractor

Steering & Transmission Controls & Brake Parts Diagram

  • Title

1

Cub Cadet TE-1000114

Bushing, Flange

$

$

Not available

2

Cub Cadet TE-1000177

Bracket, Pivot

$

$

Currently unavailable

3

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

4

Cub Cadet TE-1000375

Push Ring, 5/8 Ext

$

$

Currently unavailable

5

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 6

0

6

Cub Cadet TE-1000475

Arm, Idler

$

$

Currently unavailable

7

Cub Cadet 738-0269

Screw, Shld, 1/2 Dia X .295 Lg

$

$

Not available

8

Cub Cadet TE-1000501

Arm, Brake, LH

$

$

Not available

9

Cub Cadet TE-1000355

Pin, Clevis, 5/16 Dia X 3/4 Lg

$

$

Currently unavailable

10

Cub Cadet TE-1000290

Clevis

$

$

Currently unavailable

11

Cub Cadet TE-446363

Washer, Flat, 5/16
(Superseded to 736-3089)

$

$

Not available

12

Cub Cadet TE-1000291

Spring, Wheel Clutch Actuator

$

$

Not available

13

Cub Cadet TE-1000367

Bushing, Flange

$

$

Currently unavailable

14

Cub Cadet TE-1000172

Actuator, LH

$

$

Currently unavailable

15

Cub Cadet TE-189323

Screw, Hex Cap, 5/16-24 x 3.5 GR5

$

$

Currently unavailable

16

Cub Cadet 715-0108

Pin, Spiral Spring, 1/4 Dia x 1.00 Lg

$4.99

$

In Stock, Qty 15

0

17

Cub Cadet TE-1000215

Rod, Steering Control

$

$

Not available

18

Cub Cadet TE-1000816

Decal, Lube Point

$

$

Currently unavailable

19

Cub Cadet 712-0711

Nut, Hex Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet TE-1000256

Rod End, Male

$

$

Currently unavailable

21

Cub Cadet TE-1000208

Plate, Brake Arm Mtg

$

$

Currently unavailable

22

Cub Cadet TE-1000334

Slider, Brake

$

$

Currently unavailable

23

Cub Cadet TE-1000445

Shield, Oil Drain

$

$

Currently unavailable

24

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 GR5

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet TE-1000170

Knob, Control

$

$

Currently unavailable

26

Cub Cadet 712-0461

Nut, Hex Jam, 1/2-13
(Superseded to 912-3048)

$4.99

$

In Stock, Qty 7

0

27

Cub Cadet TE-1000426

Shifter

$

$

Currently unavailable

28

Cub Cadet TE-1000671

Insulator, Shifter

$

$

Not available

29

Cub Cadet TE-454829

Screw, Hex Cap, 1/4-28 X .75 GR8

$

$

Currently unavailable

30

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

31

Cub Cadet 736-0173

Washer, Flat, .281 ID X .73 OD X .063

$4.49

$

In Stock, only 4 left!

0

32

Cub Cadet TE-1000147

Hub, Clutch

$

$

Not available

33

Cub Cadet TE-1000287

Ball, Steel, 3/8 Dia

$

$

Not available

34

Cub Cadet TE-1000444

Drum, Brake

$

$

Not available

35

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1.75 Lg GR5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

36

Cub Cadet TE-1000166

Band, Brake

$

$

Not available

37

Cub Cadet 712-0342

Nut, Hex Jam, 3/8-16
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

38

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1.5 Lg GR5

$4.49

$

In Stock, Qty 7

0

39

Cub Cadet TE-1000149

Plunger, Wheel Clutch

$

$

Not available

40

Cub Cadet TE-1000342

Ring, Internal Snap

$

$

Not available

41

Cub Cadet 714-0154

Key, Hi Pro, 1/4 X 3/4 Dia

$

$

Not available

42

Cub Cadet TE-1000530

Shaft, Clutch

$

$

Currently unavailable

43

Cub Cadet TE-1000805

Washer, Wheel Clutch
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

44

Cub Cadet TE-1000288

Spring, Clutch Plunger

$

$

Not available

45

Cub Cadet TE-1000824

Sleeve, Wheel Clutch

$

$

Not available

46

Cub Cadet TE-1000289

Ring, External Snap

$

$

Not available

47

Cub Cadet TE-1000130

Shaft Assy, Wheel Clutch

Note: (Includes Ref No. 39 thru 46)

$

$

Currently unavailable

48

Cub Cadet TE-1000563

Link, #50 Master

$

$

Not available

49

Cub Cadet TE-1000155

Chain, Final Drive

$

$

Not available

50

Cub Cadet TE-1000502

Arm, Brake, RH

$

$

Currently unavailable

51

Cub Cadet TE-1000173

Actuator, RH

$

$

Not available

52

Cub Cadet TE-1000293

Switch, Safety Start

$

$

Not available
