GMT 150 (169-150-100) - Cub Cadet Grounds Maintenance Tractor Fuel System Parts Diagram

Grounds Maintenance Tractor

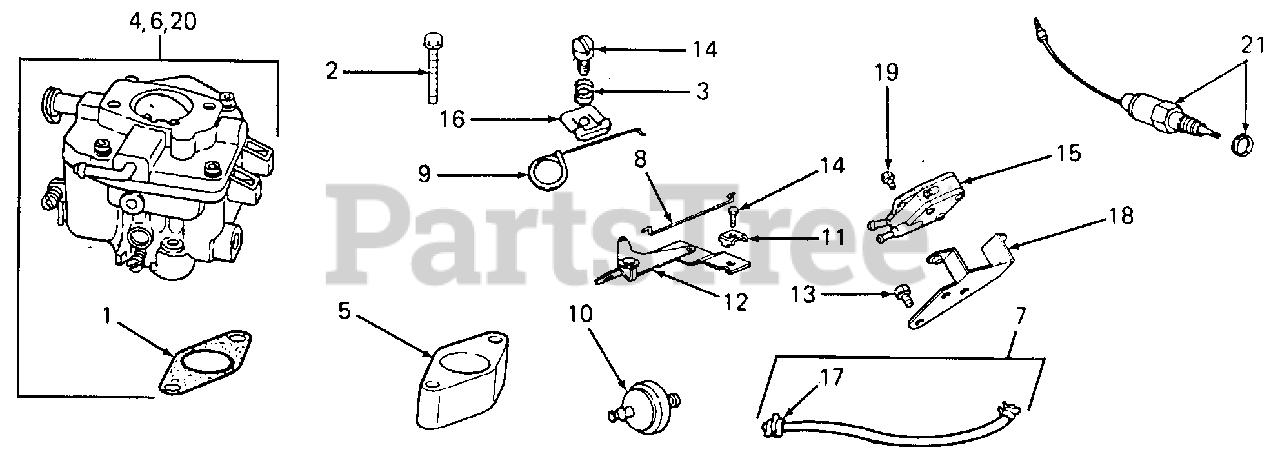

Fuel System Parts Diagram

  • Title

1

Cub Cadet BS-805264

Gasket, Carburetor Mtg
(Superseded to BS-691694)

$2.99

$

In Stock, Qty 20+

0

2

Cub Cadet BS-805466

Screw, Sems

$

$

Not available

3

Cub Cadet BS-26155

Spring, Lever

$

$

Not available

4

Kit, Carburetor Repair

$

$

Not available

5

Cub Cadet BS-805328

Spacer, Carburetor
(Superseded to BS-690691)

$13.99

$

In Stock, only 3 left!

0

6

Cub Cadet BS-807624

Carburetor Assy
(Superseded to BS-809011)

$321.99

$

In Stock, only 1 left!

0

7

Cub Cadet 759-3330

Line, Fuel

Note: (Cut to suit)

$63.99

$

In Stock, only 2 left!

0

8

Cub Cadet BS-805439

Link, Choke
(Superseded to BS-690705)

$6.49

$

In Stock, Qty 11

0

9

Cub Cadet BS-805509

Rod, Manual Control

$

$

Not available

10

Cub Cadet 751-3013

Filter, Fuel
(Superseded to 951-3013)

$5.49

$

In Stock, Qty 20+

0

11

Cub Cadet BS-805170

Clamp, Casing
(Superseded to BS-691024)

$3.99

$

In Stock, Qty 7

0

12

Cub Cadet BS-807609

Bracket, Choke

$

$

Not available

13

Cub Cadet BS-805025

Screw, Sems

$

$

Not available

14

Cub Cadet BS-805169

Screw, Hex Hd

$

$

Not available

15

Cub Cadet BS-491922

Pump, Fuel
(Superseded to BS-808656)

$27.99

$

In Stock, Qty 20+

0

16

Cub Cadet BS-221372

Cup, Friction

$

$

Not available

17

Cub Cadet BS-93053

Clamp, Fuel Line
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet BS-807685

Bracket, Fuel Pump
(Superseded to BS-691559)

$24.99

$

In Stock, only 1 left!

0

19

Cub Cadet BS-805317

Screw, Mtg
(Superseded to BS-807084)

$3.49

$

In Stock, only 3 left!

0

20

Gasket Set, Carburetor

$

$

Not available

21

Cub Cadet BS-807664

Solenoid
(Superseded to BS-692094)

$166.99

$

In Stock, only 4 left!

0
